Megmeet MC5000 Series User Quick Check Manual

MC5000 8 axis output module user
quick check manual
Thank you for using Megmeet MC5000 series PLC. Before using the
PLC product, please carefully read this booklet so as to better
understand it, fully use it, and ensure safety.This user manual is to offer
you a quick guide to the design, installation, connection and
maintenance of MC5000-4TC/8TC module, convenient for on-site
reference. Briefly introduced in this booklet are the hardware specs,
features, and usage of MC5000-4TC/8TC module, plus the optional
parts and FAQ for your reference.
This manual for the following members:
MC5000-8PO
Version 1.0
Revision date April 2, 2019
BOM
If you need more detailed product information, please refer to MC5000
series PLC user manual and MC5000 series PLC programming
reference manual issued by our company. If necessary, may consult the
supplier, or go to www.megmeet.com to download

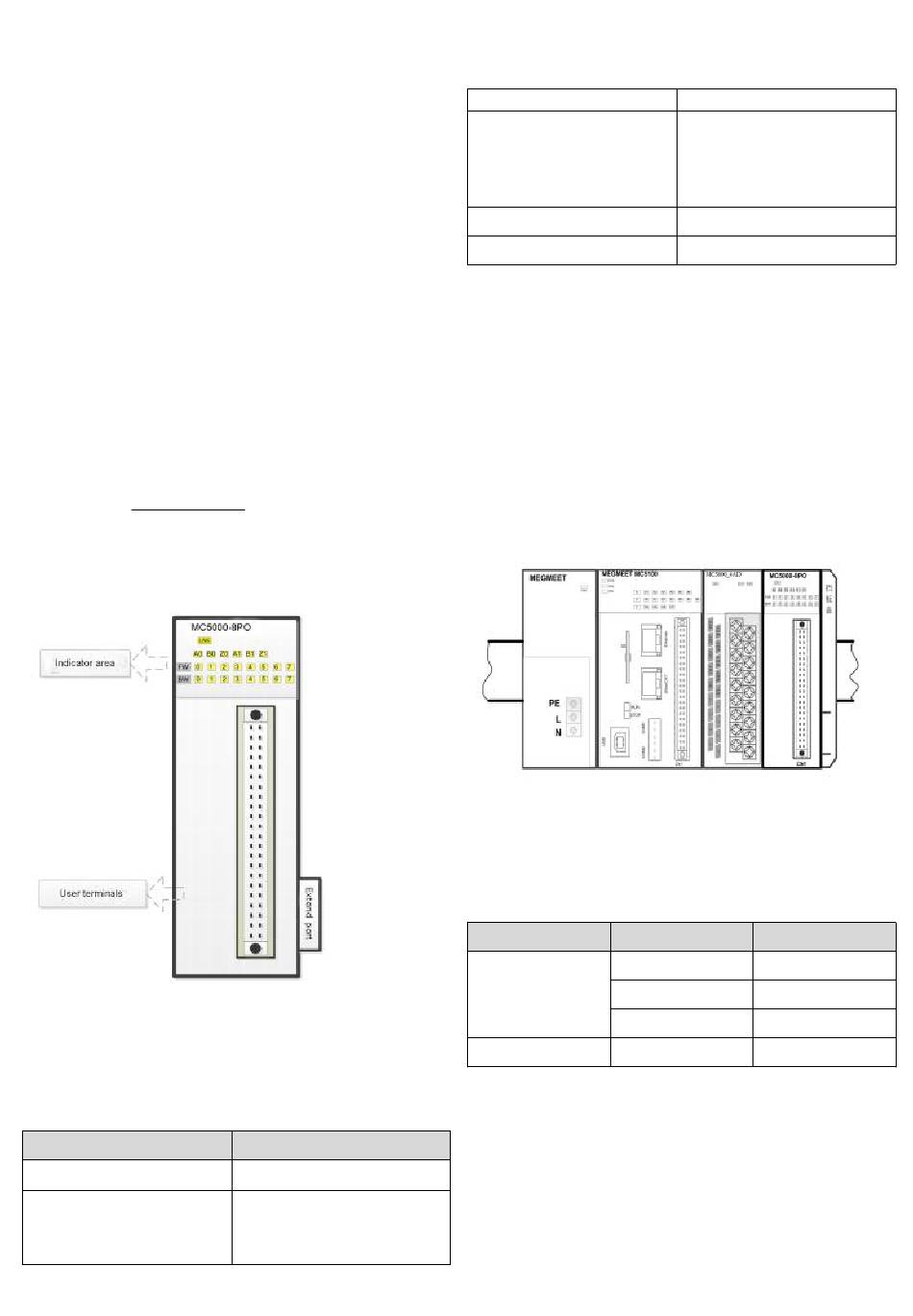

1. Appearance and part name
1.1 module appearance and terminal
Figure 1-1 Appearance and terminal
2. Model specification
2.1 model and main technical indicators
Table 2-1 technical indicators
Specification
Appearance size (H × L × W)
Input channel
MC5000-8PO
102.00 × 34.20 × 103.50 （mm）
Ordinary high-speed input: 6 - way
high-speed input
Encoder input: two A,B,Z
difference, single-end encoder
Output channel
Terminal
24V power consumption current
3. Installation
3.1 Install and fix with DIN slot
The module are installed with DIN slots 35mm wide, and the extension
modules are connected by clips. After the modules are connected to
each other, push the connection card forward to the module and lock
the module. Open the DIN clasp at the bottom of the module and attach
the bottom of the module to the DIN guide rail. Rotate the module close
to the DIN guide rail and close the DIN clasp. Carefully check whether
the DIN clasp on the module is tightly fixed with the DIN guide rail, as
shown below:
Module connection diagram
Table 3-1
3.2 Cable connection and specification
The module adopts high density IO terminal, which needs to be
connected by rotating wire and terminal table, as shown in the following
table:
Table 3-1 cable specifications
classification Type
MCA05-100L
IO cable MCA05-150L
MCA05-200L
Terminal block MCA010-40P
3.3 User terminal introduction
input
Normal high-speed output: 16
channels
Axis output: 8 axis (support AB
phase, pulse + reverse, positive
and negative pulse)
CN1(40PIN harness connector)
35 mA
Specification
1m terminal wire
1.5m terminal wire
2m terminal wire
40PIN terminal block
1
