Megmeet MC5000 Series User Manual

MC5000-4AD/8AD Analog Quantity Input Module
User Manual
Thank you for using MC5000 series PLC. Before using the product, please
carefully read this manual so as to better understand it, fully use it, and
ensure safety. This quick start manual is to offer you a quick guide to the
design, installation, connection and maintenance of MC5000-4AD/8AD for
the convenience of users to access the required information on site, and
provide a brief introduction to relevant accessories, FAQs, etc.
This manual is suitable for the following MC5000 series members:
MC5000–4AD 4-channel analog quantity input module
MC5000–8AD 8-channel analog quantity input module
Version Number：1.0
Date：2018-12-05
BOM Code：R33010481
For detailed product information, please refer to MC5000 Series PLC User
Manual , MC5000 Series PLC Programming Reference Manual. For ordering
the above user manuals, contact your Megmeet distributor or download from
MEGMEET website (www.megmeet.com).
1. Installation
1.1 DIN Slot Mounting
Mounted by 35mm-width DIN slots, the expansion module connects
each other with snap-fit, which you can push it along the front direction of
the module to fasten modules tightly. Then, users can open the DIN snap-fit
at the bottom of the module and lock the bottom onto the DIN rail; Rotate
module close to the DIN guide rail and close the DIN snap-fit with a
double-checking, as the following figure：

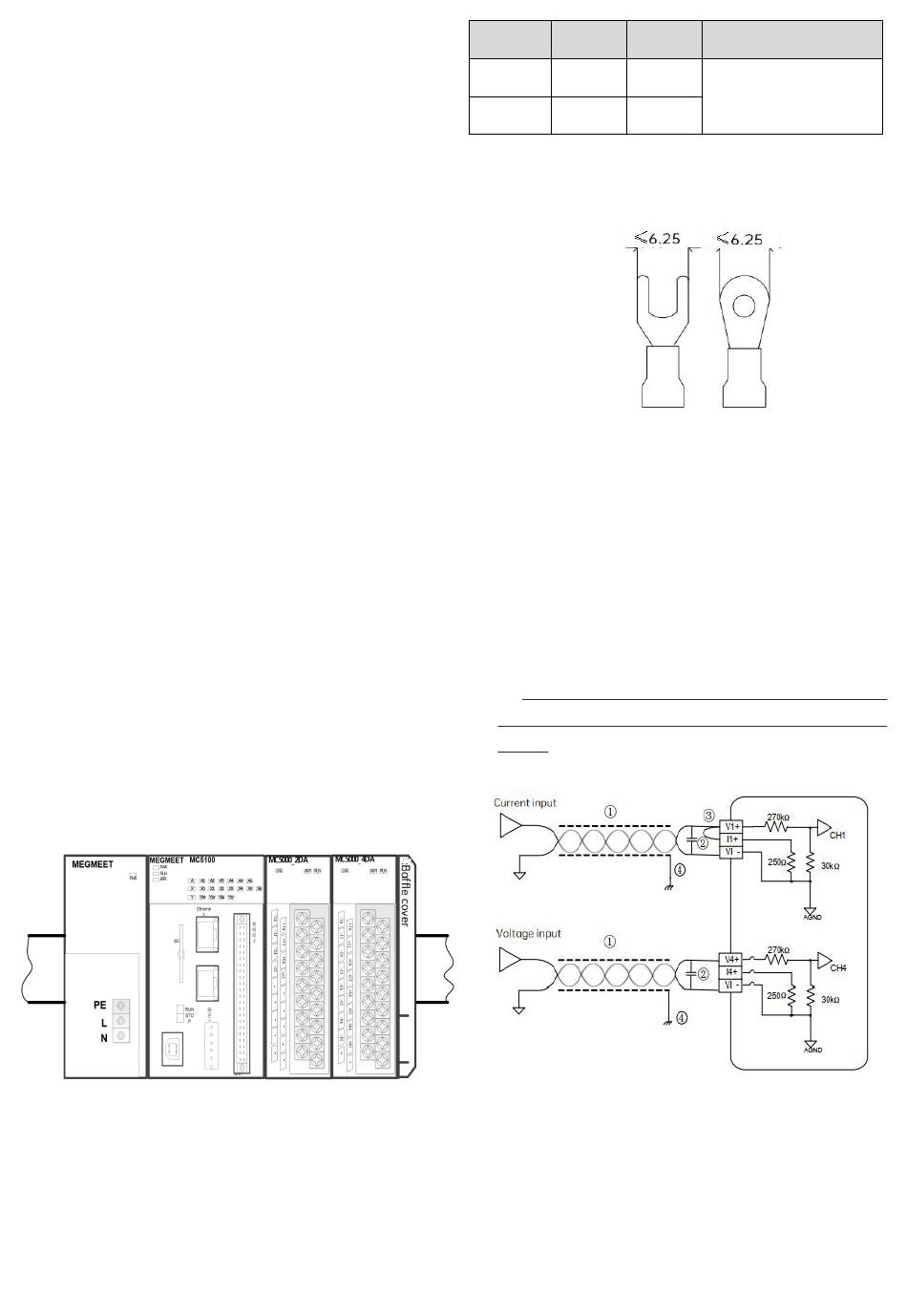

Fig. 1-1 Module connection diagram
Dimensions(with terminal): 103.5mm(H) X 122mm(D) X 34MM(W)
1.2 Cable connection and specification
It is recommended to use
insulated terminal ends to ensure the quality of the wiring. The following
table lists the cross-section and models of the recommended cables.
stranded copper cables and prefabricate
Cross-
Cable Cable No.
section
Input signal
0.8～1.0mm² AWG18、20 UT1-3 or OT1-3 cold pressing
cable(X)
Output signal
0.8～1.0mm² AWG18、20
cable(Y)
Fix the finished cable end on the PLC terminal by the screw in a correct
position and 0.5 ~ 0.8Nm tightening torque, to ensure reliable connection
without damaging the screw.
Figure 1-2 shows the recommended cable preparation method.
Fig. 1-2 Cable diagram
1.3 Wiring requirement
Figure 1-3 shows the wiring requirements for terminals.
the notice when wiring:
It is recommended to use a shielded twisted-pair cable, keeping far
①
away from the power cable or other interference
If there is interference in the external electrical wiring and the
②
input signal fluctuates, you can connect a smoothing capacitor (0.1
μF ~ 0.47 μF /25V);
If the current input is used in current channel, you need
③
short-circuit the voltage input terminal and the current input
terminal;
The ground terminal is well connected.
④
Fig 1-3 MC5000-4AD/8AD terminal wiring diagram
Please pay attention to the power supply situation when designing the
connection of the system, which the overload status may cause the unstable
system work.
Terminal and heat shrink tube
terminal Φ3 or Φ4 heat shrink
tube
indicates
①～④
cable;
