MC5000-6AD1-P Analog Quantity Input Module
User Quick Start Manual
Thank you for using MC5000 series PLC. Before using the product, please
carefully read this manual so as to better understand it, fully use it, and
ensure safety. This quick start manual is to offer you a quick guide to the
design, installation, connection and maintenance of MC5000-6AD1-P for the
convenience of users to access the required information on site, and provide
a brief introduction to relevant accessories, FAQs, etc.
This manual is suitable for the following MC5000 series members:
MC5000-6AD1-P analog quantity input module
Version Number:A00
Date:2023-03-27
BOM Code:R33010906
For detailed product information, please refer to MC5000 Series PLC User
Manual , MC5000 Series PLC Programming Reference Manual. For ordering
the above user manuals, contact your Megmeet distributor or download from
MEGMEET website (www.megmeet.com).
1. Installation
1.1 DIN Slot Mounting
Mounted by 35mm-width DIN slots, the expansion module connects
each other with snap-fit, which you can push it along the front direction of
the module to fasten modules tightly. Then, users can open the DIN snap-fit
at the bottom of the module and lock the bottom onto the DIN rail; Rotate
module close to the DIN guide rail and close the DIN snap-fit with a
double-checking, as the following figure:

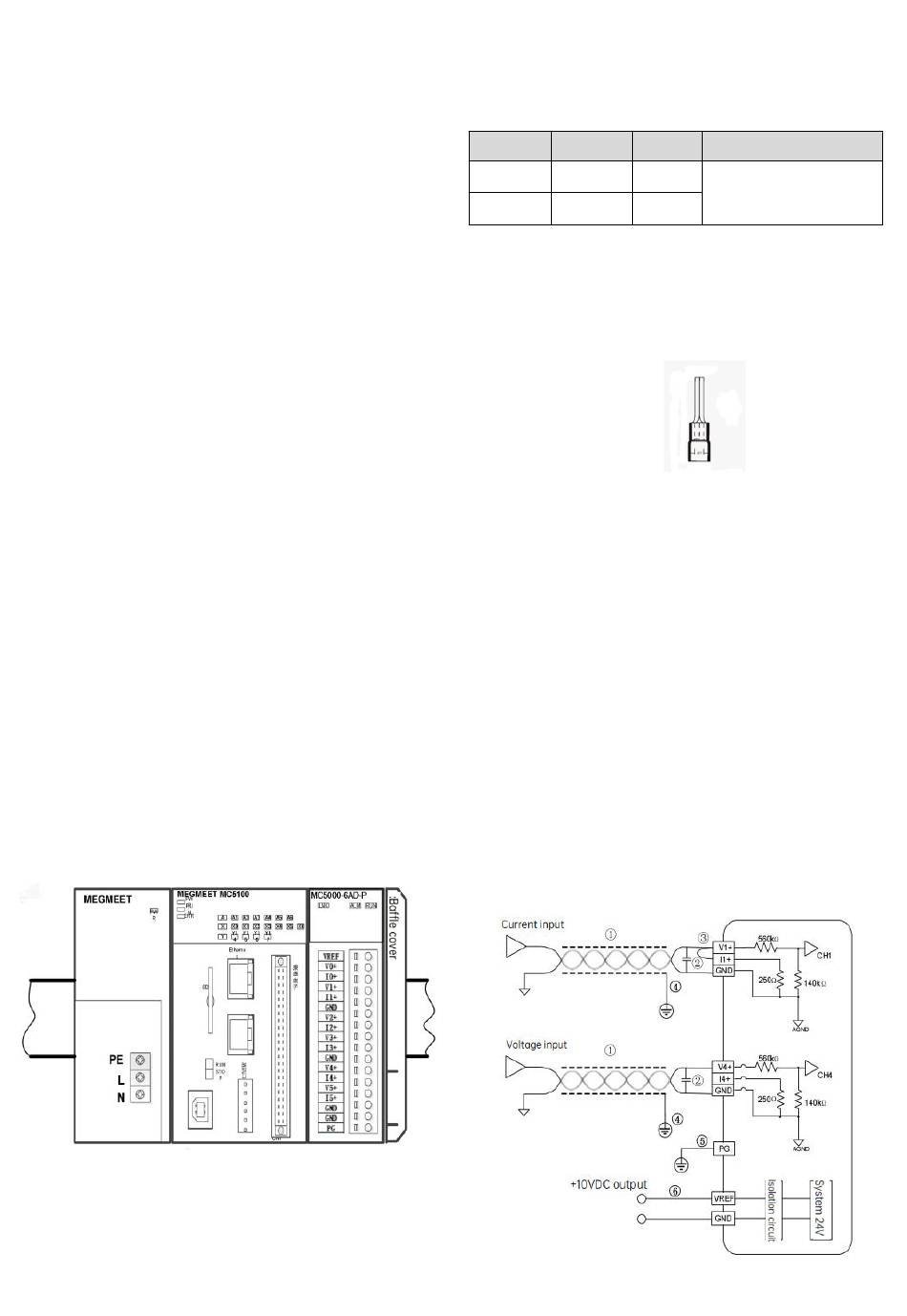

Fig. 1-1 Module connection diagram
Dimensions(mm): 115mm(H) X 110.5mm(D) X 52.5mm(W)
1.2 Cable connection and specification
It is recommended to use
insulated terminal ends to ensure the quality of the wiring. The following
table lists the cross-section and models of the recommended cables.
Cable
Cross-section
Input signal
0.8~1.0mm²
AWG18、20
cable(X)
Output signal
0.8~1.0mm²
AWG18、20
cable(Y)
Fix the finished cable end on the PLC terminal by the screw in a correct
position and 0.5 ~ 0.8Nm tightening torque, to ensure reliable connection
without damaging the screw.
Figure 1-2 shows the recommended cable preparation method.
Fig. 1-2 Cable diagram
1.3 Wiring requirement
Figure 1-3 shows the wiring requirements for terminals.
the notice when wiring:
It is recommended to use a shielded twisted-pair cable, keeping far
away from the power cable or other interference
② If there is interference in the external electrical wiring and the input
signal fluctuates, you can connect a smoothing capacitor (0.1μF ~ 0.47
μF /25V);
③ If the current input is used in current channel, you need short-circuit
the voltage input terminal and the current input terminal;
④ The ground terminal is well connected.
⑤ The shielding layer of signal wire is well connected.
⑥ The +10VDC signal( ± 1% ) can be output between VREF and GND
terminals, with a 60mA output overload protection.
Fig 1-3 MC5000-6AD1-P terminal wiring diagram
stranded copper
cables and prefabricate
Cable No.
Terminal and heat shrink tube
PVC insulated pin-type terminal
①~⑥
cable;
indicates
1
