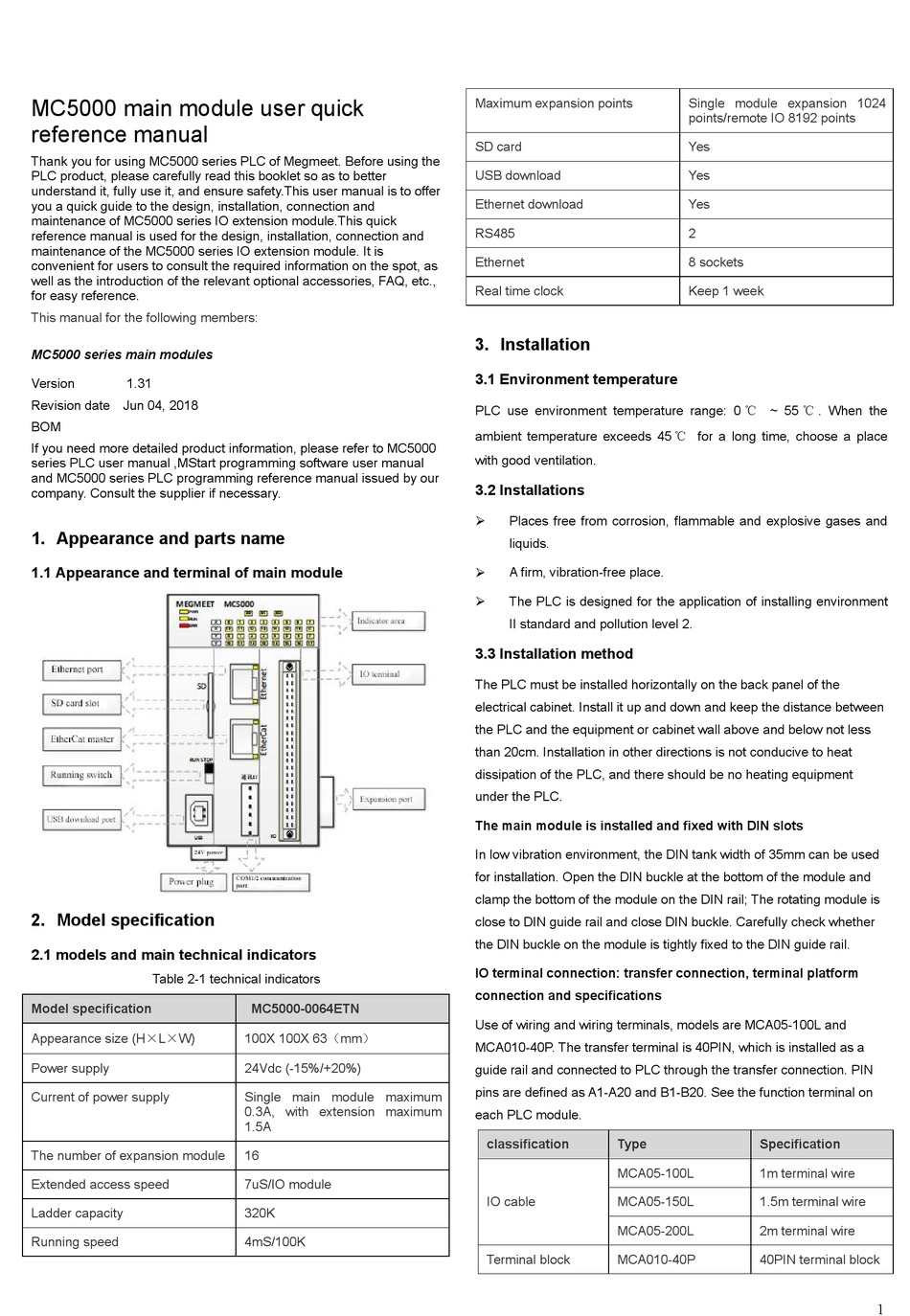

MC5000 main module user quick
reference manual
Thank you for using MC5000 series PLC of Megmeet. Before using the
PLC product, please carefully read this booklet so as to better
understand it, fully use it, and ensure safety.This user manual is to offer
you a quick guide to the design, installation, connection and
maintenance of MC5000 series IO extension module.This quick
reference manual is used for the design, installation, connection and
maintenance of the MC5000 series IO extension module. It is
convenient for users to consult the required information on the spot, as
well as the introduction of the relevant optional accessories, FAQ, etc.,
for easy reference.
This manual for the following members:
MC5000 series main modules
Version 1.31
Revision date Jun 04, 2018
BOM
If you need more detailed product information, please refer to MC5000
series PLC user manual ,MStart programming software user manual
and MC5000 series PLC programming reference manual issued by our
company. Consult the supplier if necessary.
1. Appearance and parts name
1.1 Appearance and terminal of main module
2. Model specification
2.1 models and main technical indicators
Table 2-1 technical indicators
Model specification
Appearance size (H×L×W)
Power supply
Current of power supply
The number of expansion module
Extended access speed
Ladder capacity
Running speed
MC5000-0064ETN
100X 100X 63（mm）
24Vdc (-15%/+20%)
Single main module maximum
0.3A, with extension maximum
1.5A
16
7uS/IO module
320K
4mS/100K
Maximum expansion points
SD card
USB download
Ethernet download
RS485
Ethernet
Real time clock
3. Installation
3.1 Environment temperature
PLC use environment temperature range: 0 ℃ ~ 55 ℃ . When the
ambient temperature exceeds 45 ℃ for a long time, choose a place
with good ventilation.
3.2 Installations
Places free from corrosion, flammable and explosive gases and

liquids.
A firm, vibration-free place.

The PLC is designed for the application of installing environment

II standard and pollution level 2.
3.3 Installation method
The PLC must be installed horizontally on the back panel of the
electrical cabinet. Install it up and down and keep the distance between
the PLC and the equipment or cabinet wall above and below not less
than 20cm. Installation in other directions is not conducive to heat
dissipation of the PLC, and there should be no heating equipment
under the PLC.
The main module is installed and fixed with DIN slots
In low vibration environment, the DIN tank width of 35mm can be used
for installation. Open the DIN buckle at the bottom of the module and
clamp the bottom of the module on the DIN rail; The rotating module is
close to DIN guide rail and close DIN buckle. Carefully check whether
the DIN buckle on the module is tightly fixed to the DIN guide rail.
IO terminal connection: transfer connection, terminal platform
connection and specifications
Use of wiring and wiring terminals, models are MCA05-100L and
MCA010-40P. The transfer terminal is 40PIN, which is installed as a
guide rail and connected to PLC through the transfer connection. PIN
pins are defined as A1-A20 and B1-B20. See the function terminal on
each PLC module.
classification Type
MCA05-100L
IO cable MCA05-150L
MCA05-200L
Terminal block MCA010-40P
Single module expansion 1024
points/remote IO 8192 points
Yes
Yes
Yes
2
8 sockets
Keep 1 week
Specification
1m terminal wire
1.5m terminal wire
2m terminal wire
40PIN terminal block
