Megmeet MC5000 Series User Quick Reference Manual

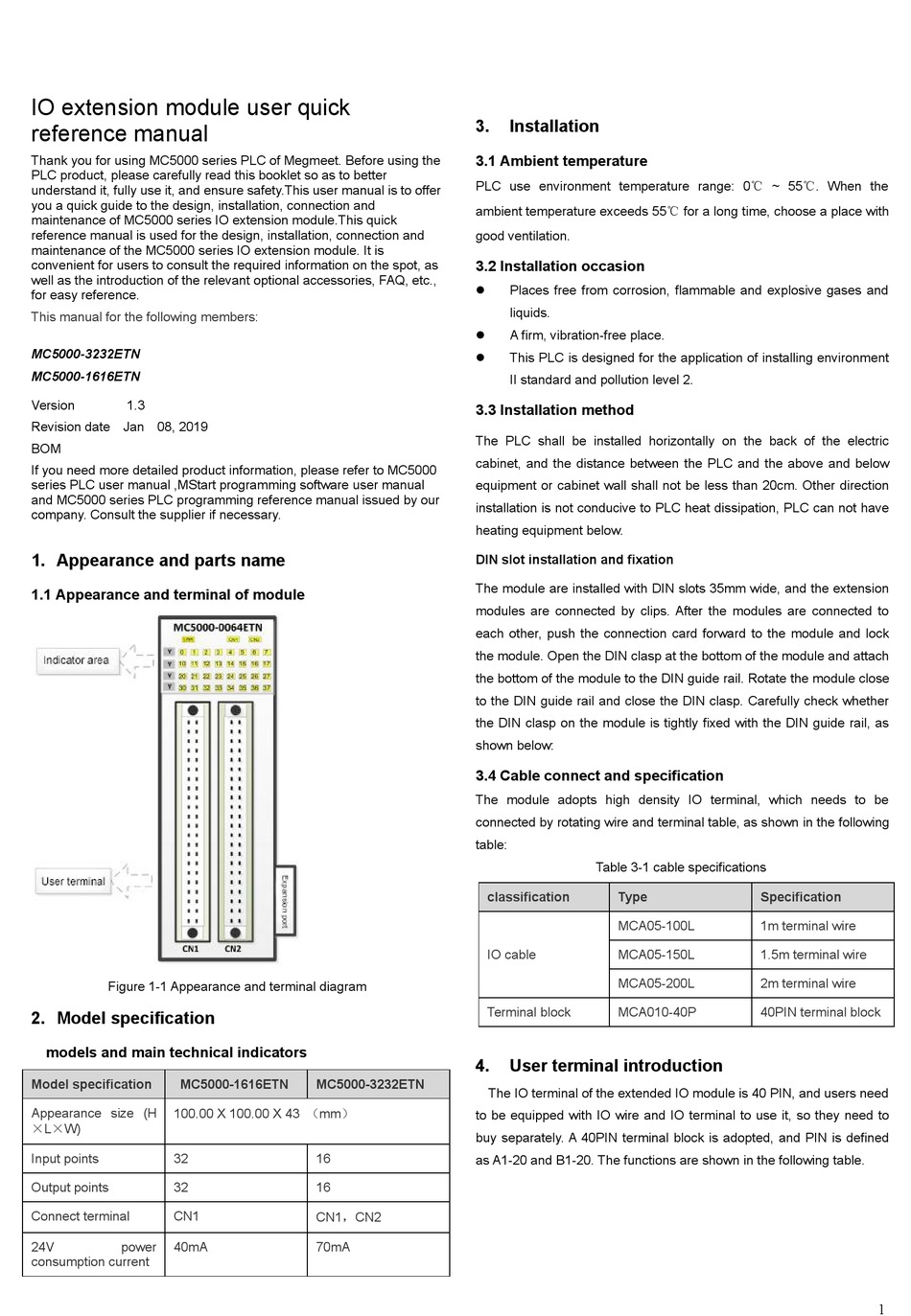

IO extension module user quick
reference manual
Thank you for using MC5000 series PLC of Megmeet. Before using the
PLC product, please carefully read this booklet so as to better
understand it, fully use it, and ensure safety.This user manual is to offer
you a quick guide to the design, installation, connection and
maintenance of MC5000 series IO extension module.This quick
reference manual is used for the design, installation, connection and
maintenance of the MC5000 series IO extension module. It is
convenient for users to consult the required information on the spot, as
well as the introduction of the relevant optional accessories, FAQ, etc.,
for easy reference.
This manual for the following members:
MC5000-3232ETN
MC5000-1616ETN
Version 1.3
Revision date Jan 08, 2019
BOM
If you need more detailed product information, please refer to MC5000
series PLC user manual ,MStart programming software user manual
and MC5000 series PLC programming reference manual issued by our
company. Consult the supplier if necessary.
1. Appearance and parts name
1.1 Appearance and terminal of module
Figure 1-1 Appearance and terminal diagram
2. Model specification
models and main technical indicators
Model specification MC5000-1616ETN
Appearance size (H
100.00 X 100.00 X 43 （mm）
×L×W)
Input points 32
Output points 32
Connect terminal CN1
24V power 40mA
consumption current
3.
3.1 Ambient temperature
PLC use environment temperature range: 0℃ ~ 55℃. When the
ambient temperature exceeds 55℃ for a long time, choose a place with
good ventilation.
3.2 Installation occasion



3.3 Installation method
The PLC shall be installed horizontally on the back of the electric
cabinet, and the distance between the PLC and the above and below
equipment or cabinet wall shall not be less than 20cm. Other direction
installation is not conducive to PLC heat dissipation, PLC can not have
heating equipment below.
DIN slot installation and fixation
The module are installed with DIN slots 35mm wide, and the extension
modules are connected by clips. After the modules are connected to
each other, push the connection card forward to the module and lock
the module. Open the DIN clasp at the bottom of the module and attach
the bottom of the module to the DIN guide rail. Rotate the module close
to the DIN guide rail and close the DIN clasp. Carefully check whether
the DIN clasp on the module is tightly fixed with the DIN guide rail, as
shown below:
3.4 Cable connect and specification
The module adopts high density IO terminal, which needs to be
connected by rotating wire and terminal table, as shown in the following
table:
classification
IO cable
Terminal block
4.
MC5000-3232ETN
to be equipped with IO wire and IO terminal to use it, so they need to
buy separately. A 40PIN terminal block is adopted, and PIN is defined
16
as A1-20 and B1-20. The functions are shown in the following table.
16
CN1，CN2
70mA
Installation
Places free from corrosion, flammable and explosive gases and
liquids.
A firm, vibration-free place.
This PLC is designed for the application of installing environment
II standard and pollution level 2.
Table 3-1 cable specifications
Type
MCA05-100L
MCA05-150L
MCA05-200L
MCA010-40P
User terminal introduction
The IO terminal of the extended IO module is 40 PIN, and users need
Specification
1m terminal wire
1.5m terminal wire
2m terminal wire
40PIN terminal block
1
