Megmeet MC5000 Series User Quick Reference Manual

IO extension module user quick
reference manual
Thank you for using MC5000 series PLC of Megmeet. Before using the
PLC product, please carefully read this booklet so as to better
understand it, fully use it, and ensure safety.This user manual is to offer
you a quick guide to the design, installation, connection and
maintenance of MC5000 series IO extension module.This quick
reference manual is used for the design, installation, connection and
maintenance of the MC5000 series IO extension module. It is
convenient for users to consult the required information on the spot, as
well as the introduction of the relevant optional accessories, FAQ, etc.,
for easy reference.
This manual for the following members:
MC5000-6400ENN
Version 1.0
Revision date Apr 02, 2019
BOM
If you need more detailed product information, please refer to MC5000
series PLC user manual ,MStart programming software user manual
and MC5000 series PLC programming reference manual issued by our
company. Consult the supplier if necessary.

1. Appearance and parts name

1.1 Appearance and terminal of module

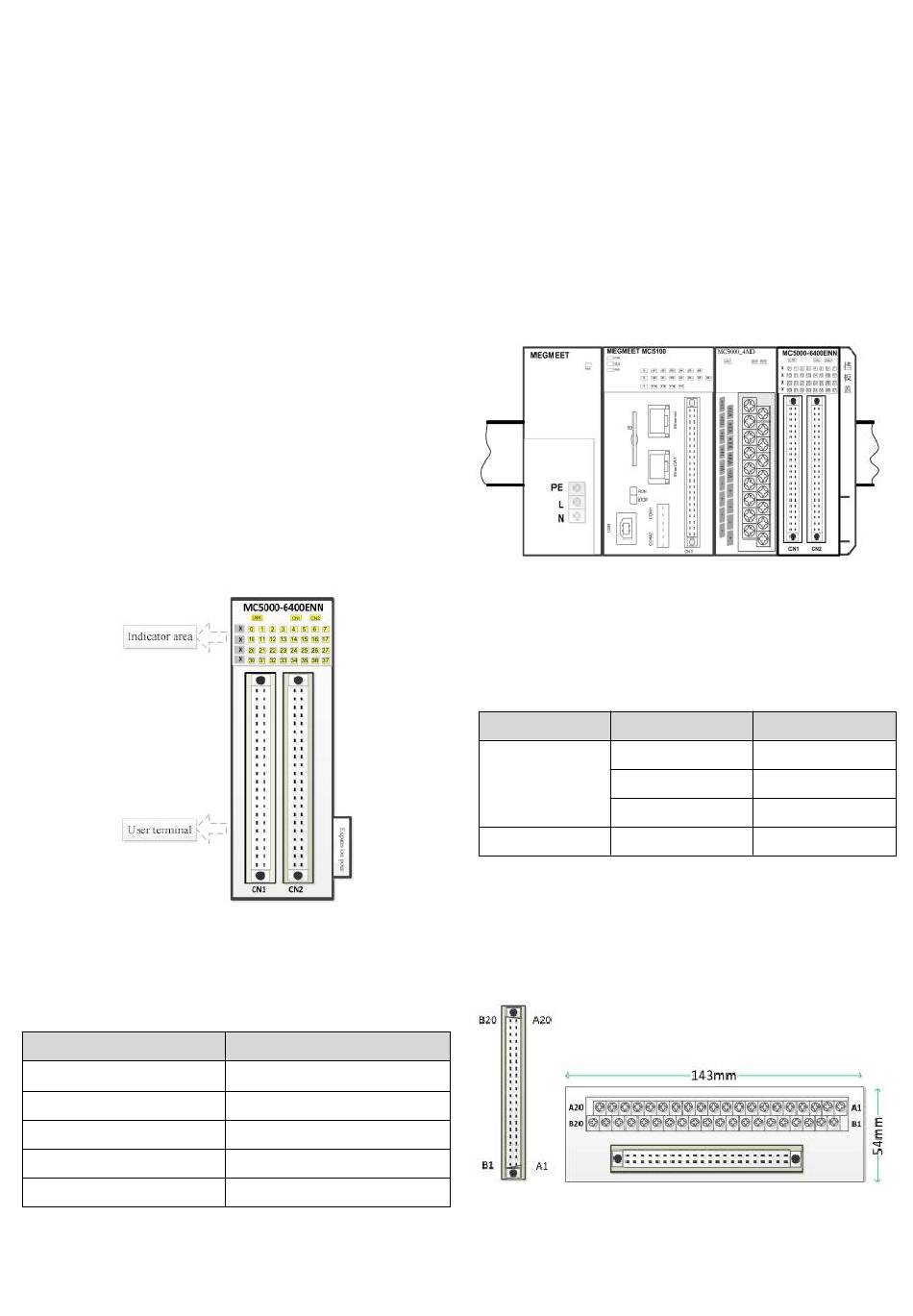

Figure 1-1 Appearance and terminal diagram
2.

Model description

2.1 Model and main technical indicators
Table 2-1 Technical indicators
Specification
Appearance size (H×L×W)
The number of input points
The number of output points
Connect terminals
24V power consumption current
MC5000-1600ENN-T
102.00 X 34.20 X 103.50（mm）
64
0
CN1,CN2
35mA

3. Installation

3.1 DIN slot installation and fixation

The module are installed with DIN slots 35mm wide, and the extension
modules are connected by clips. After the modules are connected to
each other, push the connection card forward to the module and lock
the module. Open the DIN clasp at the bottom of the module and attach
the bottom of the module to the DIN guide rail. Rotate the module close
to the DIN guide rail and close the DIN clasp. Carefully check whether
the DIN clasp on the module is tightly fixed with the DIN guide rail, as
shown below:
Module connection diagram
Figure 3-1

3.2 Cable connect and specification

The module adopts high density IO terminal, which needs to be
connected by rotating wire and terminal table, as shown in the following
table:
Table 3-1 cable specifications
classification Type
MCA05-100L
IO cable MCA05-150L
MCA05-200L
Terminal block MCA010-40P

3.3 User terminal introduction

The IO terminal of the extended IO module is 40PIN, and users need
to be equipped with IO wire and IO terminal to use it, so they need to
buy separately. A 40PIN terminal block is adopted, and PIN is defined
as A1-20 and B1-20. The functions are shown in the following table.
Module IO Block
The IO terminal CN1 of MC5000-0064ETN is defined in table 3-2，and
the IO terminal CN2 is defined in table 3-3
Table 3-2 CN1 terminal definition table
Specification
1m terminal wire
1.5m terminal wire
2m terminal wire
40PIN terminal block
Wiring terminal
1
