Megmeet MC5000 Series User Manual

MC5000-4TC/8TC Temperature
Measurement Module User Manual
Thank you for using Megmeet MC5000 series PLC. Before using the
PLC product, please carefully read this booklet so as to better
understand it, fully use it, and ensure safety.This user manual is to offer
you a quick guide to the design, installation, connection and
maintenance of MC5000-4TC/8TC module, convenient for on-site
reference. Briefly introduced in this booklet are the hardware specs,
features, and usage of MC5000-4TC/8TC module, plus the optional
parts and FAQ for your reference.
This manual MC5000-4TC/8TC
MC5000-4TC thermocouple temperature measurement module
MC5000-8TC thermocouple temperature measurement module
Version 1.0
Revision date May 13, 2019
BOM
If you need more detailed product information, please refer to MC5000
series PLC user manual and MC5000 series PLC programming
reference manual issued by our company. Consult the supplier if
necessary.
1. Introduction
1.1 Install and fix with DIN slot
The module are installed with DIN slots 35mm wide, and the extension
modules are connected by clips. After the modules are connected to
each other, push the connection card forward to the module and lock
the module. Open the DIN clasp at the bottom of the module and attach
the bottom of the module to the DIN guide rail. Rotate the module close
to the DIN guide rail and close the DIN clasp. Carefully check whether
the DIN clasp on the module is tightly fixed with the DIN guide rail, as
shown below:

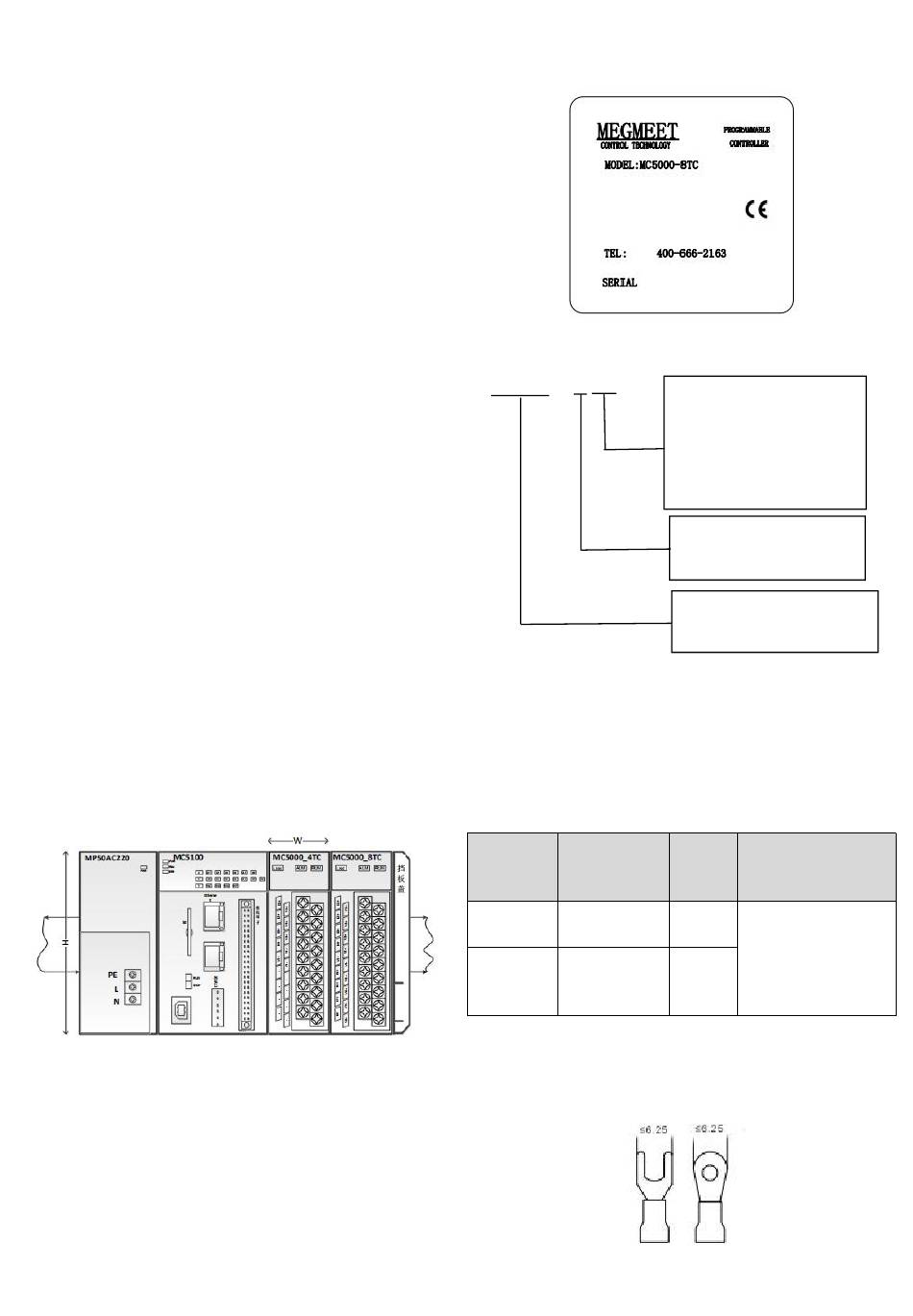

Figure 1-1 Module connection diagram
Module size (with top terminal): 103.5mm (H) ×
34mm (W)
1.2 Model and nameplate
module for the following members:
122mm (D) ×
Figure 1-2 Nameplate
MC5000 TC
8
-
Table 1-3 Module Description
1.3 Cable connection and specifications
Cable specifications
When wiring PLC, it is recommended to use multiple copper wires and
prefabricate insulated terminals to ensure the quality of wiring. The
recommended cross-sectional area and type of wire are shown in the
following table.
Recommended
Cable stripping
length
Input single
0.8～1.0mm²
wire(X)
Output
single wire
0.8～1.0mm²
(Y)
Fix the machined cable head on the connection terminal of PLC with
screws. Pay attention to the correct position of the screws. The
tightening torque of the screws is between 0.5 and 0.8Nm to ensure
reliable connection without damaging the screws. The recommended
cable preparation method is shown in figure 1-4.
Figure 1-4 Cable schematic
Special module type:
AD: voltage and current analog input
module
DA: voltage and current analog output
module
TC:Thermocouple temperature
measurement module
PT: Thermal resistance temperature
measurement module
Number of channels:
4:4 channels
8:8 channels
MC5000 series programmable
controller
Allowed
Matching terminal and
cable
heat shrinkable tube
number
UT1-3 or
AWG18、 20
cold-pressing end, Φ 3
or Φ 4 heat shrinkable
AWG18、 20
tube
OT1-3
1
