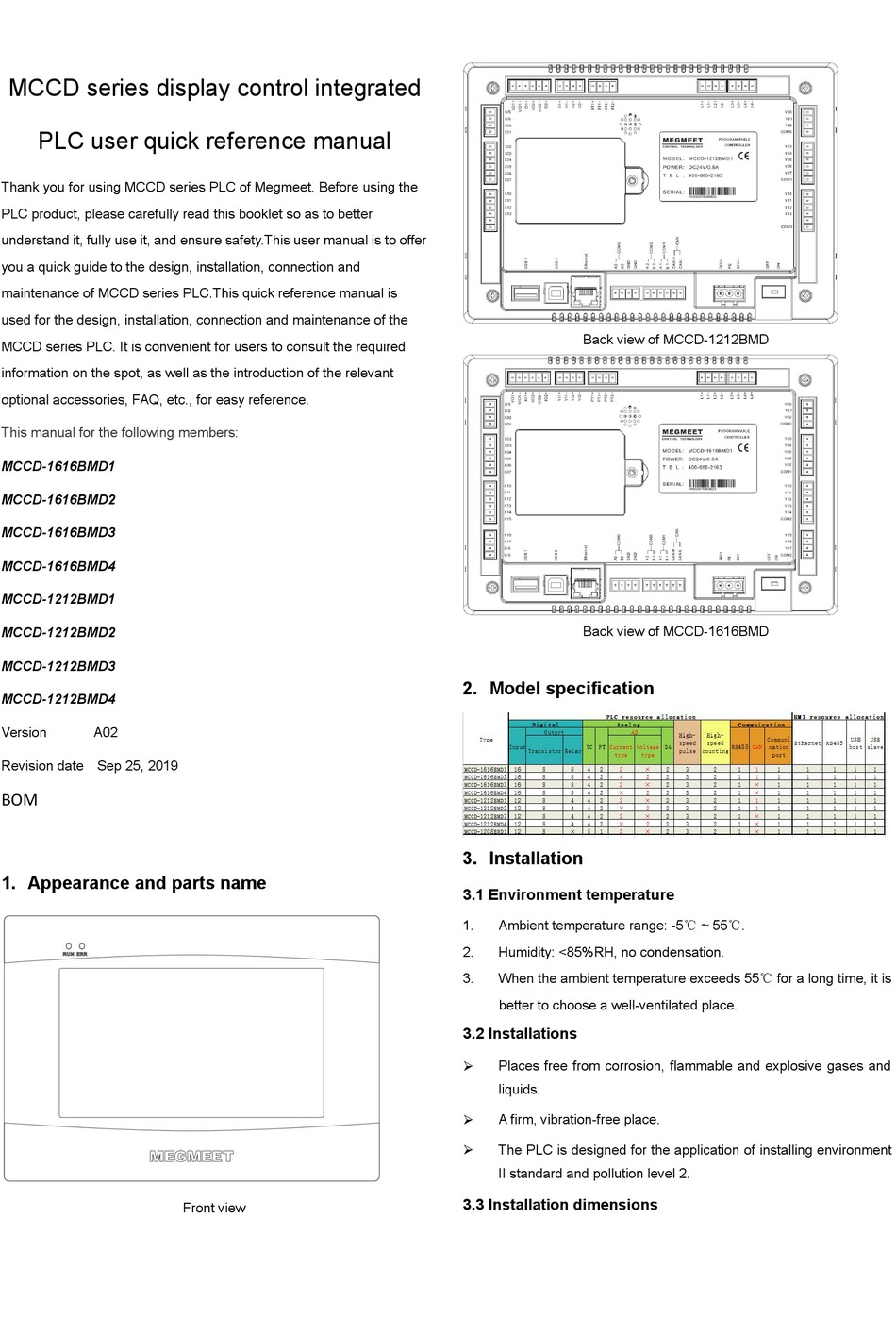

MCCD series display control integrated
PLC user quick reference manual
Thank you for using MCCD series PLC of Megmeet. Before using the
PLC product, please carefully read this booklet so as to better
understand it, fully use it, and ensure safety.This user manual is to offer
you a quick guide to the design, installation, connection and
maintenance of MCCD series PLC.This quick reference manual is
used for the design, installation, connection and maintenance of the
MCCD series PLC. It is convenient for users to consult the required
information on the spot, as well as the introduction of the relevant
optional accessories, FAQ, etc., for easy reference.
This manual for the following members:
MCCD-1616BMD1
MCCD-1616BMD2
MCCD-1616BMD3
MCCD-1616BMD4
MCCD-1212BMD1
MCCD-1212BMD2
MCCD-1212BMD3
MCCD-1212BMD4
Version
A02
Revision date Sep 25, 2019
BOM
1. Appearance and parts name
Front view
Back view of MCCD-1212BMD
Back view of MCCD-1616BMD
2. Model specification
3. Installation
3.1 Environment temperature
1.
Ambient temperature range: -5℃ ~ 55℃.
2.
Humidity: <85%RH, no condensation.
3.
When the ambient temperature exceeds 55℃ for a long time, it is
better to choose a well-ventilated place.
3.2 Installations
Places free from corrosion, flammable and explosive gases and
liquids.
A firm, vibration-free place.
The PLC is designed for the application of installing environment
II standard and pollution level 2.
3.3 Installation dimensions
