Summary of Contents for TESTO 115i

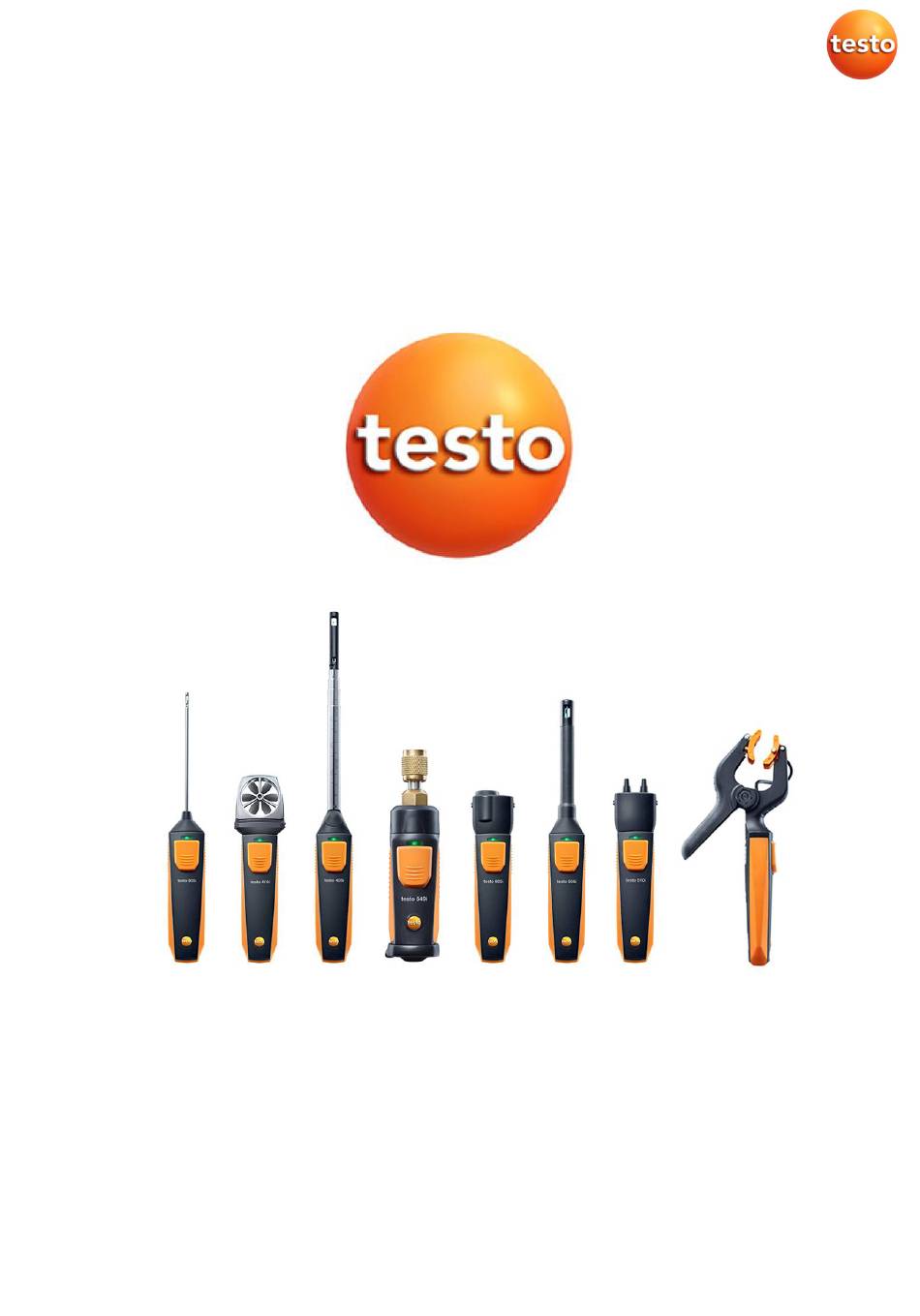

- Page 1 Testo Smart Probes...
- Page 2 2.1. Overview of operating controls 2.2. Basic settings 2.2.1 Select Language 2.2.2 Display Tutorial 2.2.3 Show help 2.2.4 Additional information 2.2.4.1 Display testo website 2.2.4.2 Display App Info 2.3 Export measurement values 2.3.1 Excel (CSV) Export 2.3.2 Exporting a graph 2.3.3 PDF Export 2.4 Hold values...
- Page 3 3 Tips and assistance 4.1 Questions and answers 4.2 Accessories and spare parts 4 Technical data 4.1 Bluetooth module 4.2 General technical data 4.2.1 testo 115i 4.2.2 testo 405i 4.2.3 testo 410i 4.2.4 testo 510i 4.2.5 testo 549i 4.2.6 testo 605i 4.2.7 testo 805i...
-
Page 4: First Steps
® You need a tablet or smartphone with the testo Smart Probes App already installed on it to be able to establish a Bluetooth connection. You can get the App for iOS instruments in the App Store or for Android instruments in the Play Store. -
Page 5: Using The App
3. Tap ◄ several times until the measurement view is displayed. - The language has been changed. 2.2.2 Display Tutorial Tutorial guides you through the first steps when operating with the testo Smart Probes App. 1. Tap -> Tutorial - The Tutorial is displayed. -
Page 6: Settings View
Export measurement values ( ) 2.3.1 Excel (CSV) Export 1. Press : A selection of export options appears. 2. Press Export Excel (CSV): A list of readings is displayed. 3. Press : A selection of sending/export options appears. 4. Select your required sending/export options. 2.3.2 Exporting a graph 1. -
Page 7: Displaying Smart Probe Details
Displaying Smart Probe details ( ✓ One or more Smart Probes are connected to your mobile terminal device via Bluetooth. 1. Press : All connected Smart Probes are displayed in this list. 2. Select the Smart Probe whose details you would like to see ... -
Page 8: Application Settings
Table view = In the Table view, all readings are displayed in sequence according to date and time. The different readings from the ◄ ►. individual Smart Probes can be selected by pressing First row indicates the connected probe (3 digits) and the measured value (e.g. - Page 9 Applications Select “Volume Flow (Outlet)” 2.9.1 Smart Probes: t405i or t410i Optional: t115i, t510i, t605i, t905i see “2.5 Settings view” 1. Press and select Edit view 2. Press and select Configure measurement Single measurement Press to make your first measurement ...
- Page 10 Select “AC + Refrigeration” 2.9.3 Smart Probes: 2x t115i, 2x t549i Optional: t605i, t905i 1. Press and select Edit view Press to select Low-pressure and high-pressure probe t549i as well as t115i Clamp Thermometers in order to calculate superheating (tcu) and sub-cooling (toh) ...
- Page 11 Select “Temperature (IR)” 2.9.5 Smart Probe: t805i see “2.5 Settings view” 1. Press and select Edit view 2. Select set emissivity Choose between pre-configured default emissivities or put them in manually 3. Press the button of t805i to start the measurement 4.
- Page 12 Select “Tightness Test” 2.9.7 Smart Probe: t510i see “2.5 Settings view” 1. Press and select Edit view 2. Press and select configure measurement Select the maximum allowed pressure drop, stabilisation time, test time and vibration alarm see “AC + Refrigeration” 3.
-
Page 13: Tips And Assistance
Item number 0516 0240 testo Smart Case (Refrigeration) for storing and transporting 2 × testo 115i and 2 × testo 549i, dimensions 250 × 180 × 70 mm 0516 0270 testo Smart Case (Heating) for storing and transporting testo 115i, testo 410i, testo 510i, testo 549i and testo 805i, dimensions 250 ×... -
Page 14: General Technical Data
Changes The FCC demands that the user be informed that any changes or modifications to the instrument that have not been explicitly approved by Testo AG may void the user's right to use this instrument. - Page 15 4.2.2 testo 405i Feature Values Measuring range 0 to 30 m/s / 0 to 5,900 fpm -20 to 60 °C / -4 to 140 °F Accuracy ± 1 digit ± (0.1 m/s + 5% of m.v.) (0 to +2 m/s) ±...
- Page 16 4.2.5 testo 549i Feature Values Measuring range 0 to 60 bar (rel) / 0 to 870 psi (rel) Accuracy ± 1 digit 0.5% of final value of measuring range Overpressure 65 bar Resolution 0.01 bar / 0.1 psi Measurement cycle...
- Page 17 4.2.8 testo 905i Feature Values Measuring range -50 to 150 °C / -58 to 302 °F Accuracy ± 1 digit ± 1 °C / ± 1.8 °F Resolution 0.1 °C / 0.1 °F Measurement cycle 1/sec Available units of measurement °C, °F...
