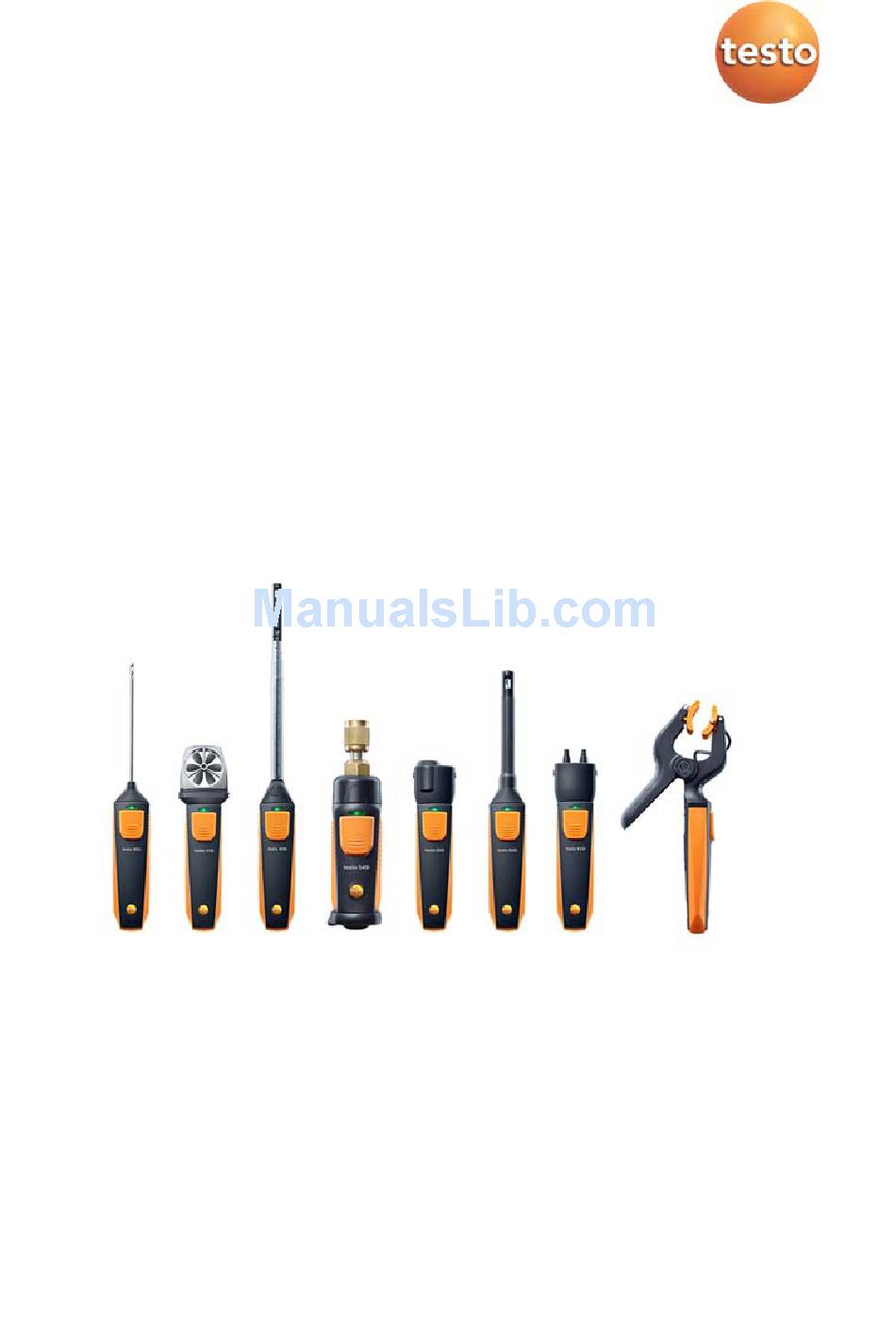

  • Page 1 · Smart Probes Instruction manual...

  • Page 3: Table Of Contents

    Safety and the environment ..............5 2.1. About this document ................ 5 2.2. Ensure safety ................... 6 2.2.1. Safety and the testo 510i ................. 6 2.2.2. Safety and the testo 549i ................. 6 2.2.3. Safety and the testo 805i ................. 7 2.3.
  • Page 4 905i ....................... 17 9.2.2. testo 410i ....................... 18 9.2.3. testo 405i ....................... 18 9.2.4. testo 549i ....................... 19 9.2.5. testo 805i ....................... 20 9.2.6. testo 605i ....................... 20 9.2.7. testo 510i ....................... 21 9.2.8. testo 115i ....................... 22 Certifications ..................23...

  • Page 5: Safety And The Environment

    2 Safety and the environment Safety and the environment 2.1. About this document > Please read this documentation through carefully and familiarize yourself with the product before putting it to use. Pay particular attention to the safety instructions and warning advice in order to prevent injuries and damage to the products.

  • Page 6: Ensure Safety

    > Dangers may also arise from the systems being measured or the measuring environment: Note the safety regulations valid in your area when performing the measurements. 2.2.1. Safety and the testo 510i • Magnetic field • May be harmful to those with pacemakers.

  • Page 7: Safety And The Testo 805I

    > At the end of its useful life, send the product to the separate collection for electric and electronic devices (observe local regulations) or return the product to Testo for disposal. Specifications Testo Smart Probes are different hand-held measuring instruments for various applications that communicate with your mobile terminal devices by means of an app.

  • Page 8: Product Description

    3 Key 4 Battery compartment (at the back) 5 Direction of flow testo 405i / testo 410i (not shown) (An arrow on the top of the housing displays the direction of flow in which the measuring instrument has been calibrated and which achieves the best measurement results.

  • Page 9: First Steps

    ® You need a tablet or smartphone with the testo Smart Probes App already installed on it to be able to establish a Bluetooth connection. You can get the App for iOS instruments in the App Store or for Android instruments in the Play Store.

  • Page 10: Transmitting Readings

    6 Using the App 5.3. Transmitting readings ✓ The Smart Probe is switched on and connected to your mobile terminal device via Bluetooth. The current readings are automatically displayed in the App. Using the App 6.1. Overview of operating controls Choice of applications.

  • Page 11: App Options

    In Tutorial, swipe to display the next page. 2. Tap X to close the Tutorial. 6.2.3. Show help An internet connection is required to display the testo website. 1. Tap -> Help The page Fehler! Linkreferenz ungültig. is displayed.

  • Page 12: Application Menus

    6 Using the App 6.3. Application menus 6.3.1. Selecting the application menu 1. Press A selection of menus for various applications is displayed. 2. Select the required application. The selection disappears and your selected application is displayed. 6.3.2. Setting favourites 1....

  • Page 13: List, Graphic Diagram And Table View

    6 Using the App 6.5. List, graphic diagram and table view The available readings can be displayed in different ways in the various views. • List view Displays the readings transmitted by the Smart Probe in the form of a list. Readings from all connected Smart Probes are displayed here.

  • Page 14: Exporting Readings

    6 Using the App 6.8. Exporting readings 6.8.1. Excel (CSV) Export 1. Press A selection of export options appears. 2. Press Export Excel (CSV). A list of readings is displayed. 3. Press A selection of sending/export options appears. 4. Select your required sending/export options. 6.8.2.

  • Page 15: Maintaining The Product

    7.2. Smart Probes App The testo Smart Probes App is kept updated via the Play Store for Android devices and the App Store for iOS devices. Please update the App as soon as a new update is available. We therefore recommend that you do not disable automatic notifications when new updates are available.

  • Page 16: Tips And Assistance

    Designation Item number testo Smart Case (Refrigeration) for storing and transporting 0516 0240 2 × testo 115i and 2 × testo 549i, dimensions 250 × 180 × 70 mm testo Smart Case (Heating) for storing and transporting 0516 0270 testo 115i, testo 410i, testo 510i, testo 549i and testo 805i, dimensions 250 ×...

  • Page 17: Technical Data

    9.2. General technical data All accuracy specifications apply at a nominal temperature of 22 °C. 9.2.1. testo 905i Feature Values Measuring range -50 to 150 °C / -58 to 302 °F Accuracy ± 1 digit ±...

  • Page 18: Testo 410I

    9 Technical data 9.2.2. testo 410i Feature Values Measuring range 0.4 to 30 m/s / 80 to 5,900 fpm -20 to 60 °C / -4 to 140 °F Accuracy ± 1 digit ± (0.2 m/s + 2% of m.v.) (0.4 to 20 m/s) ±...

  • Page 19: Testo 549I

    Extendible telescope 400 mm Probe shaft diameter 12 mm Probe tip diameter 9 mm Directives, standards EU guideline: 2014/30/EU and tests 9.2.4. testo 549i Feature Values Measuring range 0 to 60 bar (rel) / 0 to 870 psi (rel) Overpressure 65 bar Accuracy ±...

  • Page 20: Testo 805I

    9 Technical data 9.2.5. testo 805i Feature Values Measuring range -30 °C to 250 °C / -22 to 482 °F Accuracy ± 1 digit ± 1.5 °C or ± 1.5% of m.v. (0 to 250 °C) ± 2.0 °C (-20.0 to -0.1 °C) ±...

  • Page 21: Testo 510I

    Dimensions 243 mm × 30 mm × 24 mm Probe shaft length 100 mm Directives, standards EU guideline: 2014/30/EU and tests 9.2.7. testo 510i Feature Values Measuring range -150 … 150 hPa / 60 in wc Accuracy ± 1 digit ±...

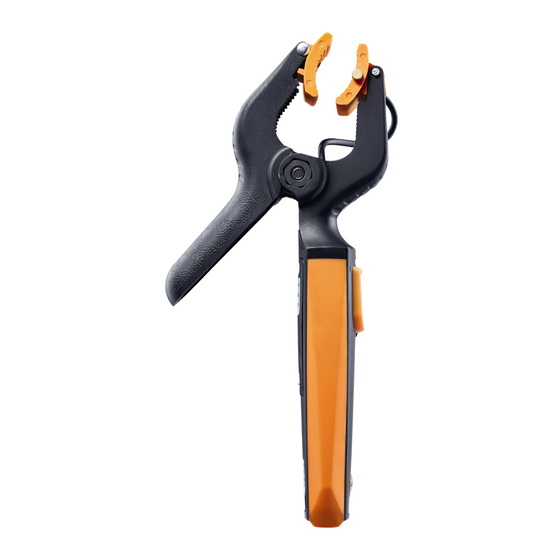

  • Page 22: Testo 115I

    9 Technical data 9.2.8. testo 115i Feature Values Measuring range -40 to 150 °C / -58 to 302 °F Accuracy ± 1 digit ± 1.3 °C (-20 to 85 °C) ± 2.34 °F (-4 to 185 °F) Resolution 0.1 °C / 0.1 °F...

  • Page 23: Certifications

    10 Certifications Certifications testo 115i, testo 405i, testo 410i, testo 510i, testo 549i, testo 605i, testo 805i, Product testo 905i 0560 1115, 0560 1405, 0560 1410, 0560 1510, 0560 1549, 0560 1605, 0560 1805, Mat.-No. 0560 1905 Country Comments E 1561...
  • Page 24 CMIIT ID: 2015DP6561 testo 805i CMIIT ID: 2015DP6562 testo 905i CMIIT ID: 2015DP6563 The EU Declaration of Conformity can be found on the testo homepage www.testo.com under the product specific downloads. Europa + EU countries: EFTA Belgium (BE), Bulgaria (BG), Denmark (DK), Germany (DE), Estonia (EE), Finland (FI),...
  • Page 25 405i testo 410i testo 510i testo 549i testo 605i testo 905i see Japan Information Korea testo 115i Certification No. MSIP-CRM-Toi-115i testo 405i Certification No. MSIP-CRM-Toi-405i testo 410i Certification No. MSIP-CRM-Toi-410i testo 510i Certification No. MSIP-CRM-Toi-510i testo 549i Certification No. MSIP-CRM-Toi-549i testo 605i Certification No.
  • Page 26 10 Certifications Taiwan testo 115i NCC: CCAB16LP177FT0 testo 405i NCC: CCAB16LP177AT3 testo 410i NCC: CCAB16LP1770T1 testo 510i NCC: CCAB16LP177DT9 testo 549i NCC: CCAB16LP177ET1 testo 605i NCC: CCAB16LP177BT5 testo 805i NCC: CCAB16LP177CT7 testo 905i NCC: CCAB16LP177GT2 Turkey Authorized Product FCC ID:...
  • Page 27 10 Certifications Bluetooth Bluetooth® Range 15 m (free field) SIG List (varies with the used mobile device) Bluetooth® type LSD Science & Technology Co., Ltd L Series BLE Module (08 Mai 2013) based on TI CC254X chip Qualified Design ID B016552 Bluetooth®...
  • Page 28 10 Certifications • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Caution Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
  • Page 32 Testo SE & Co. KGaA Testo-Straße 1 79853 Lenzkirch Germany Tel.: +49 7653 681-0 Fax: +49 7653 681-7699 E-Mail: info@testo.de www.testo.de 0970 4900 en 02...
