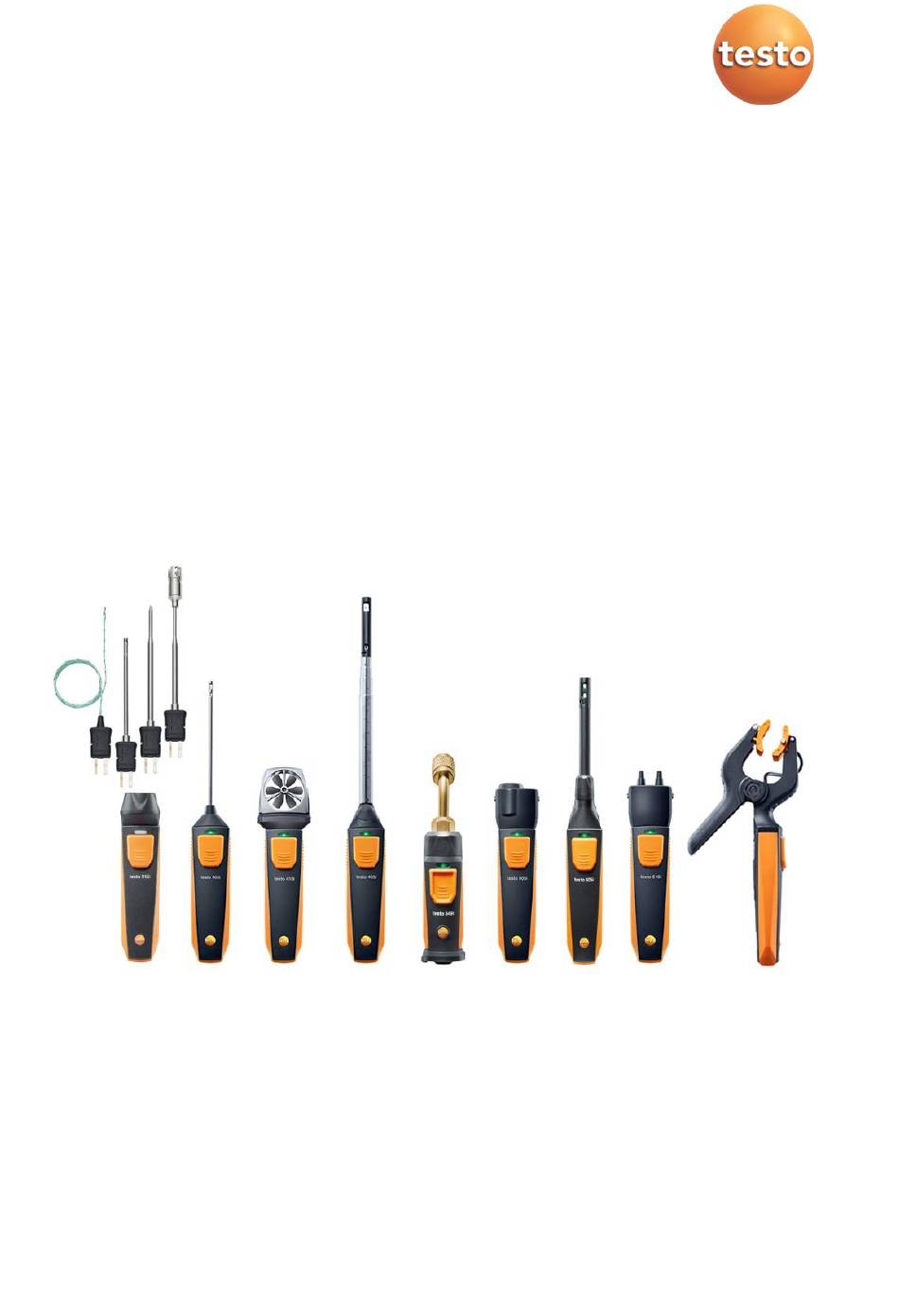

testo – Smart Probes
testo 115i (0560 1115/ 0560 2115), testo 405i (0560 1405),
testo 410i (0560 1410), testo 510i (560 1510),
testo 549i (0560 1549/ 0560 2549),
testo 552i (0560 1552/ 0560 2552)
testo 605i (0560 1605/ 0560 2605), testo 805i (0560 1805),
testo 905i (0560 1905), testo 915i (0560 1915)
Instruction manual
Advertisement
Table of Contents
Related Manuals for TESTO 115i
Summary of Contents for TESTO 115i
- Page 1 – Smart Probes testo 115i (0560 1115/ 0560 2115), testo 405i (0560 1405), testo 410i (0560 1410), testo 510i (560 1510), testo 549i (0560 1549/ 0560 2549), testo 552i (0560 1552/ 0560 2552) testo 605i (0560 1605/ 0560 2605), testo 805i (0560 1805),...
-
Page 3: Table Of Contents
About this document ................ 5 2.2. Ensure safety................... 6 2.2.1. Safety and the testo 510i/605i/915i ..........6 2.2.2. Safety and the testo 605i ..............6 2.2.3. Safety and the testo 549i/552i ............7 2.2.4. Safety and the testo 805i ..............7 2.2.5. - Page 4 Cleaning the instrument ..............19 7.2. Keeping connections clean ............19 7.3. Ensuring measuring accuracy ............19 7.4. testo 552i – Vakuumsonde reinigen ..........19 7.5. Smart Probes App ................. 21 Tips and assistance ............22 8.1. Questions and answers ..............22 8.2.
-
Page 5: Safety And The Environment
2 Safety and the environment Safety and the environment 2.1. About this document - Please read this documentation through carefully and familiarize yourself with the product before putting it to use. Pay particular attention to the safety instructions and warning advice in order to prevent injuries and damage to the products. -
Page 6: Ensure Safety
Not for condensing atmospheres. For continuous application in high humidity (> 80 %RH at ≤ 30 °C for > 12 h, > 60 %RH at > 30 °C for > 12 h), contact us via www.testo.com. The sensor must not be exposed to volatile chemicals such as solvents (e.g. -
Page 7: Safety And The Testo 549I/552I
Use with A2L refrigerants Testo measuring instruments (as of July 2020) can be used in compliance with the prescribed laws, standards, directives and safety regulations for refrigeration systems and refrigerants as well as regulations of the manufacturers of refrigerants of safety group A2L as per ISO 817. -
Page 8: Protecting The Environment
Testo for disposal. WEEE Reg. Nr. DE 75334352 Specifications Testo Smart Probes are different hand-held measuring instruments for various applications that communicate with your mobile terminal devices by means of an app. The respective Smart Probe performs the measurement and is operated by your mobile terminal device. -
Page 9: Product Description
3 Button 4 Battery compartment (at the back) 5 Direction of flow testo 405i / testo 410i (not shown) (An arrow on the top of the housing displays the direction of flow in which the measuring instrument has been calibrated and which achieves the best measurement results. -
Page 10: First Steps
You can get the App for iOS instruments in the App Store or for Android instruments in the Play Store. Compatibility: • Requires iOS 13.0 or later/Android 8.0 or later, • ® requires Bluetooth 4.0. ✓ The Testo Smart App is installed on your terminal device and ready for use. -
Page 11: Transmitting Readings
5 First steps 1. Press the button on the Smart Probe. The Smart Probe switches on. The LED flashes yellow while connecting via Bluetooth and then flashes green once the connection is established. The connection between the Smart Probe and your mobile terminal device is established. -
Page 12: Using The App
6 Using the App Using the App 6.1. Overview of operating controls Choice of applications. 2 Switch between the views (list, graphic diagram, table) 3 Display of connected Smart Probes including readings 4 Start/stop Measurement configuration (the menu changes depending on the Smart Probe connected and the application selected) Smart Probe configuration 6.2. -
Page 13: Display Tutorial
6 Using the App 6.2.2. Display Tutorial Tutorial guides you through the first steps when operating the Testo Smart App. 1. Tap -> Help & Information -> Tutorial Tutorial is displayed. In Tutorial, swipe to display the next page. 2. Tap X to close the Tutorial. -
Page 14: Smart Probe Settings
6 Using the App 6.4. Smart Probe settings If the readings fluctuate wildly, it is advisable to damp the readings. The probe is connected to the SMART App. ✓ Click on Main menu opens. Click on Sensors. The Sensors menu opens. Click on the required sensor. -
Page 15: Testo 115I/915I - Surface Increment
6 Using the App 6.5. testo 115i/915i - Surface increment Surface probes withdraw heat from the measured surface immediately after the initial contact. This makes the measurement result lower than the true surface temperature without the probe (or the reverse if the surface is colder than the environment). -
Page 16: List, Graphic Diagram And Table View
6 Using the App 6.6. List, graphic diagram and table view The available readings can be displayed in different ways in the various views. • List view Displays the readings transmitted by the Smart Probe in the form of a list. Readings from all connected Smart Probes are displayed here. -
Page 17: Exporting Readings
6 Using the App 6.8. Exporting readings 1. Press -> Memory -> Select measurement. Export Report Delete... -
Page 18: Excel (Csv) Export
Create PDF with all readings is only possible up to 30 pages, due to the resulting file size and number of pages. In the testo DataControl software, however, PDF reports can be created for all measurements without any restrictions. ... -
Page 19: Maintaining The Product
Keep connections clean and free of grease and other deposits, clean with a damp cloth as required. 7.3. Ensuring measuring accuracy > Testo Customer Service will be happy to help you if you require it. > Keep within the permissible measuring range! > Calibrate instrument regularly (recommendation: once a year). - Page 20 7 Maintaining the product Turn a suitable screw left-handed slightly into the white seal and pull out the white seal to expose the sensor opening. Alternatively you can use the plier to pull it out. Put a few drops of rubbing alcohol (95%) into the sensor opening.
-
Page 21: Smart Probes App
7.5. Smart Probes App The Testo Smart App is kept updated via the Play Store for Android devices and the App Store for iOS devices. Please update the App as soon as a new update is available. We therefore recommend that you do not disable automatic notifications when new updates are available. -
Page 22: Tips And Assistance
Designation Item number testo Smart Case (Refrigeration) for storing and transporting 0516 0240 2 × testo 115i and 2 × testo 549i, dimensions 250 × 180 × 70 mm testo Smart Case (Heating) for storing and transporting 0516 0270 testo 115i, testo 410i, testo 510i, testo 549i and testo 805i, dimensions 250 ×... -
Page 23: Technical Data
9.2. General technical data All accuracy specifications apply at a nominal temperature of 22 °C. 9.2.1. testo 905i Feature Values -50 …150 °C / -58 … 302 °F Measuring range Accuracy ±... -
Page 24: Testo 410I
9 Technical data 9.2.2. testo 410i Feature Values 0.4 … 30 m/s / 80 … 5,900 fpm Measuring range -20 … 60 °C / -4 … 140 °F ±(0.2 m/s + 2 % of m.v.) (0.4 … 20 m/s) Accuracy ± 1 digit ±(40 fpm + 2 % of m.v.) (80 …... -
Page 25: Testo 549I
Probe tip diameter 9 mm Directives, standards EU guideline: 2014/30/EU and tests RED: 2014/53/EU RoHS: 2011/65/EU + (EU) 2015/863 9.2.4. testo 549i Feature Values Measuring range 0 to 60 bar (rel) / 0 to 870 psi (rel) Accuracy ± 1 digit 0.5 % of full scale value... -
Page 26: Testo 805I
Directives, standards EU guideline: 2014/30/EU and tests RED: 2014/53/EU RoHS: 2011/65/EU + (EU) 2015/863 9.2.5. testo 805i Feature Values Measuring range -30 °C to 250 °C / -22 to 482 °F ±1.5 °C or ± 1.5 % of m.v. (0 … 250 °C) Accuracy ±... -
Page 27: Testo 605I
RED: 2014/53/EU RoHS: 2011/65/EU + (EU) 2015/863 9.2.6. testo 605i The humidity sensor attains the highest degree of accuracy in temperatures between + 5 °C and + 60 °C and 20 % to 80 % RH. If the instrument is exposed to higher humidity for a long period of time, this can falsify the readings by up to 3 % RH. -
Page 28: Testo 510I
Probe shaft length 90 mm Directives, standards EU guideline: 2014/30/EU and tests RED: 2014/53/EU RoHS: 2011/65/EU + (EU) 2015/863 9.2.7. testo 510i Feature Values -150 … 150 hPa / 60 in wc Measuring range ±0.05 hPa (0 … 1.00 hPa) / Accuracy ±... -
Page 29: Testo 115I
9 Technical data 9.2.8. testo 115i Feature Values -40 … 150 °C / -58 … 302 °F Measuring range ±1.3 °C (-20 … 85 °C) Accuracy ± 1 digit ±2.34 °F (-4 … 185 °F) Resolution 0.1 °C / 0.1 °F... -
Page 30: Testo 552I
Directives, standards and tests EU Directive: 2014/30/EU RED: 2014/53/EU RoHS: 2011/65/EU + (EU) 2015/863 Cable length of plug-in sensor max. 3 m 9.2.10. testo 552i Feature Values 0 … 26.66 mbar Measuring range 0 … 20,000 microns ±10 microns + 10 % of m.v. (100 …... - Page 31 9 Technical data Feature Values 1 micron (0 … 1,000 microns) / Resolution 10 microns (1,000 … 2,000 microns) / 100 microns (2,000 … 5,000 microns) 1/sec Measurement rate bar, psi, MPa, kPa Available units of measurement -20 … 50 °C / -4 … 122 °F Storage temperature -10 …...
- Page 32 Testo SE & Co. KGaA Celsiusstraße 2 79822 Titisee-Neustadt Germany Telefon: +49 7653 681-0 E-Mail: info@testo.de Internet: www.testo.com 0970 4901 en 14 – 06.2024...
