MOUNTING THE BIKE CARRIER

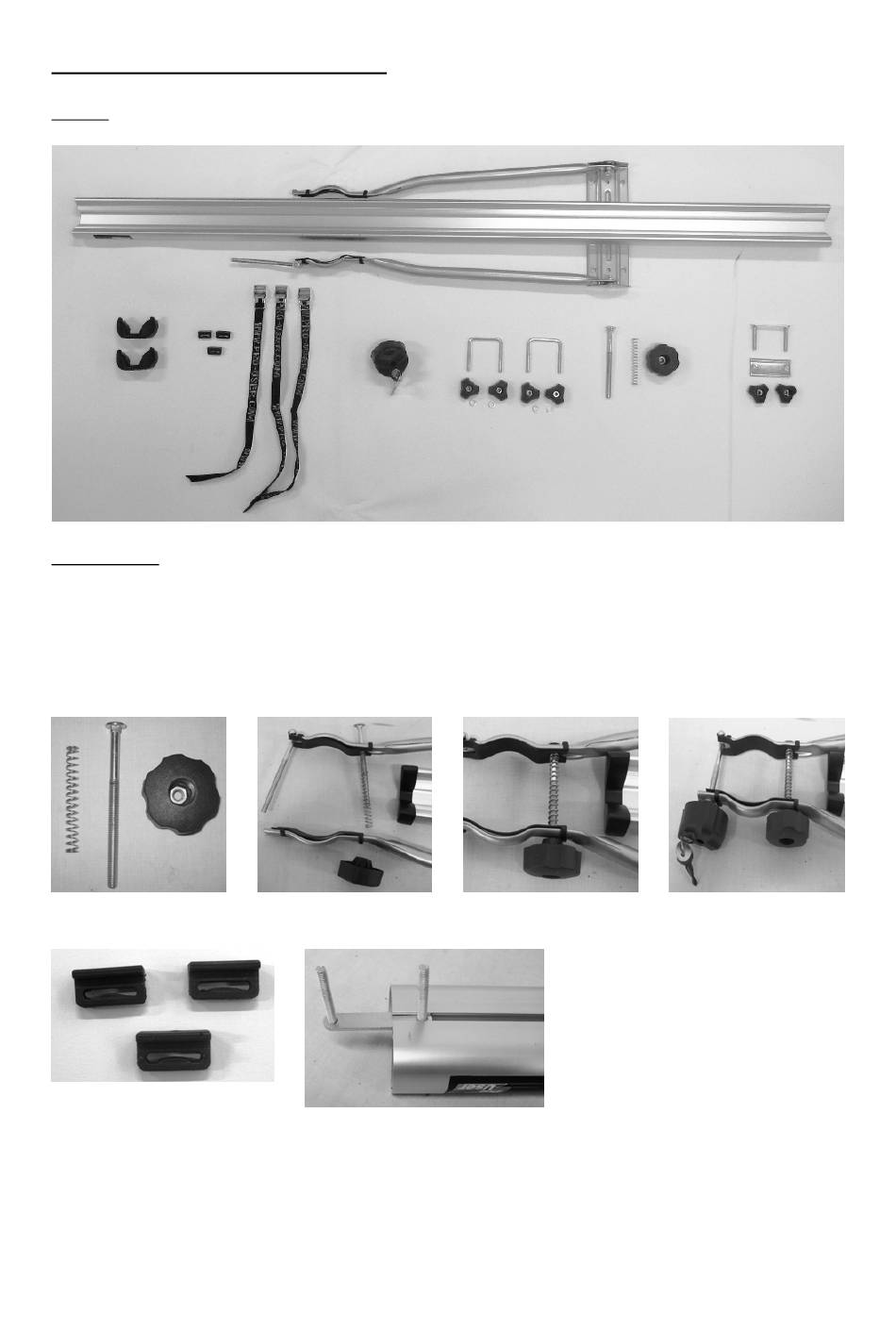

Parts:
Assembly:
Step 1
Mount the black plastic rotary knob with the screw and spring on the mounting
frame, through the pre-drilled holes (photo 1-3).
Then mount the lockable tog nut on the pivot screw on top of the mounting
frame (photo 4).
Step 2
Turn the rail around. Take off the two end caps of the rail and slide two strap
holders on the front side (that's the side where the mounting frame is pre-
mounted) into the rail. At the back side of the rail, slide in the double slide-
screws followed by the last strap holder. Put the end caps back on.
The bike carrier is now ready for fixing the roofbar of the car.
