Summary of Contents for Avery Weigh-Tronix ZM510

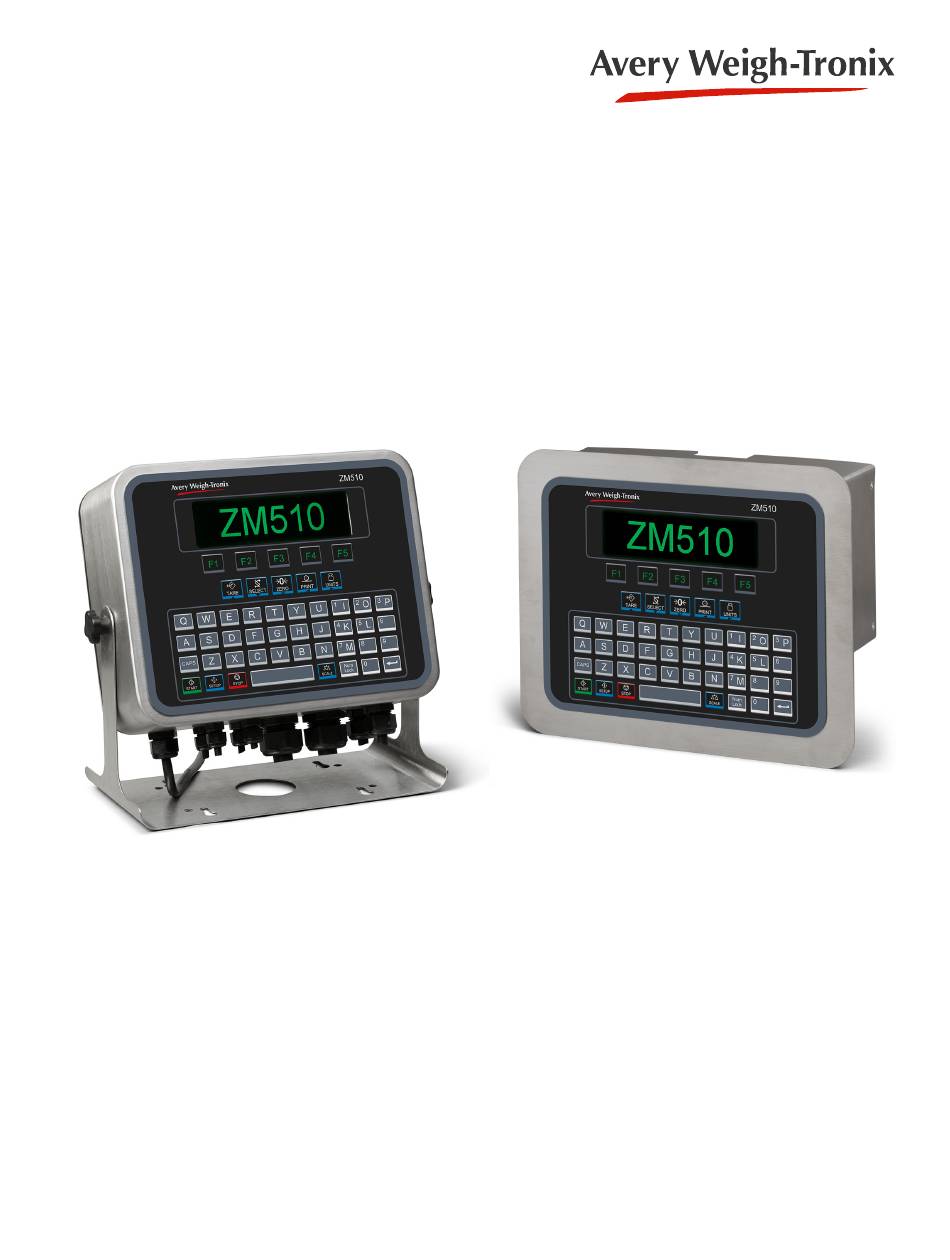

- Page 1 ZM510 Indicator User Instructions Americas AWT35-501621 Issue AC...
- Page 2 This publication was correct at the time of going to print, however Avery Weigh-Tronix reserves the right to alter without notice the specification, design, price or conditions of supply of any product or service at any time.
-
Page 3: Table Of Contents
Declarations of Conformity ....................9 Chapter 2 Introduction ..........................12 Front Panel Keys ......................14 Powering up a ZM510 indicator ..................15 Menu access and navigation ................... 15 Escaping or exiting from a menu ................16 Adjusting screen contrast ....................16 Remote input operation .................... - Page 4 US ZM510 Indicator User Instructions...
-
Page 5: Chapter 1 General Information And Warnings
NOTE: This is a Note symbol. Notes give additional and important information, hints and tips that help you to use your product. 1.2 Installation NO USER SERVICEABLE PARTS. REFER TO QUALIFIED SERVICE PERSONNEL FOR SERVICE. US ZM510 Indicator User Instructions... -
Page 6: Safe Handling Of Equipment With Batteries
Application and usage will determine the frequency of calibration required for safe operation. Always isolate the indicator from the power supply before starting any routine maintenance to avoid the possibility of electric shock. US ZM510 Indicator User Instructions... -
Page 7: Cleaning The Machine
To avoid the risk of RSI (Repetitive Strain Injury), place the machine on a surface which is ergonomically satisfactory to the user. Take frequent breaks during prolonged usage. 1.6 Sharp objects Do not use sharp objects such as screwdrivers or long fingernails to operate the keys. US ZM510 Indicator User Instructions... -
Page 8: Fcc And Emc Declarations Of Compliance
Classe A prescrites dans le Règlement sur le brouillage radioélectrique edicté par le ministère des Communications du Canada. European Countries WARNING: This is a Class A product. In a domestic environment, this product may cause radio interference in which the user may be required to take adequate measures. US ZM510 Indicator User Instructions... -
Page 9: Declarations Of Conformity
Declarations of Conformity 1.8 Declarations of Conformity US ZM510 Indicator User Instructions... - Page 10 General information and warnings US ZM510 Indicator User Instructions...
- Page 11 Declarations of Conformity US ZM510 Indicator User Instructions...
-
Page 12: Chapter 2 Introduction
The ZM510 indicator can support up to four scales for a total of 24 - 350 ohm load cells. The indicator requires a line voltage of 90 - 264 VAC, 50 or 60 Hz or 12-36VDC. The standard indicator connectivity includes two USB Host, three serial ports and an Ethernet port. - Page 13 Figure 2.1 shows the front panel of the ZM510 indicator which consists of the keys and the graphic display. Figure 2.1 ZM510 front panel Never press a key with anything but your finger. Damage to the overlay may result if sharp or rough objects are used.
-
Page 14: Front Panel Keys
Press the STOP key to stop a process defined by the active program. STOP The SCALE key can be used to perform custom application functions. It can also be used to select the active scale when more SCALE than one scale is enabled. US ZM510 Indicator User Instructions... -
Page 15: Powering Up A Zm510 Indicator
CHAN SETPT 2.3 Menu access and navigation The menus used to configure the ZM510 are accessed with passwords. Press and hold the SETUP key to access the password entry screen, shown below. Enter Password Min Value: 0, Max Value: 999,999... -
Page 16: Escaping Or Exiting From A Menu
Input 1 is setup for ZERO key operation. Input 2 is setup for TARE key operation. Input 3 is setup for PRINT key operation. This will trigger the print function and accumulate the weight and transaction counter while in the Accumulation application. US ZM510 Indicator User Instructions... -
Page 17: Chapter 3 Operating Instructions
Power Up Operating Instructions The ZM510 provides multiple tare memory, transaction counter and weight accumulator. SELECT key default function: You can view the gross, net, tare, gross total, net total, tare total and transaction total display values or other configured scale parameters by repeatedly pressing SELECT. - Page 18 TARE for 3 seconds the display will show cLEArEd and the Tare weight is cleared. If gross weight is not at 0, press the ZERO key; then press the TARE key to clear the tare value. US ZM510 Indicator User Instructions...
- Page 19 When the item is removed from the scale the Tare is cleared automatically if Auto Tare Clear is enabled. To remove the tare weight manually, select a preset tare ID that has a value of 0 for the tare or press and hold TARE for three seconds. US ZM510 Indicator User Instructions...
-
Page 20: Using The Accumulation Function
Press this key and the alphanumeric entry screen appears. Enter Channel 7 Characters Max Clear # / ' % Key in the Channel number and press the ENTER key. Remember to press the Num Lock key to enable the numeric keys. US ZM510 Indicator User Instructions... -
Page 21: Performing Accumulation Weighments
Enter ID 7 Digits Max Clear Use the keypad on the ZM510 to enter up to seven digits for the ID. When you have entered the ID, press the ENTER key and the following is displayed … Gross Accum Chan: 5... - Page 22 If enabled, press and hold the PRINT key to transmit current active total channel data out serial port #1. This will also clear the current active channel data if the clear feature is enabled under the Supervisor’s Menu. US ZM510 Indicator User Instructions...
-
Page 23: Chapter 4 Menus
User menu Menus The ZM510 three user accessible menus: User menu - Use to set Time, Date, Site ID, check Seal status and check Archive information. About menu - Use to see information on the software, firmware, application, serial number, options, ethernet and downloads Audit menu - Use this to check and/or print the calibration and configuration counters. - Page 24 The Archive report uses a rolling memory configuration (FIFO) so the oldest transaction will be written over first when all the memory slots are filled. You can exit the menu by following the instructions in Escaping or exiting from a menu on page 16. US ZM510 Indicator User Instructions...
-
Page 25: About Menu
SW Part - View the firmware part number of the cell that is connected. Version - View the firmware version of the cell that is connected. Cur. Ser - View the serial number of the cell that is connected. US ZM510 Indicator User Instructions... -
Page 26: Audit Menu
USB. Printing to USB will create a folder on the flash drive and a comma separated file with the data. You can exit the menu by following the instructions in Escaping or exiting from a menu on page 16. US ZM510 Indicator User Instructions... -
Page 27: Chapter 5 Error Messages
File Not Found File doesn’t exist. Create the database. 5.3 BSQ errors BSQ Error Communications error BSQ XCAL BSQ Calibration Mismatch Error - cell that is connected to the scale is not the cell that was calibrated. US ZM510 Indicator User Instructions... -
Page 28: Chapter 6 Supervisor Menu
The display will flash Prn-tot. Tot Fmt This stands for Total Format. This is the designated print format number used for the accumulated totals of the current active channel. (Format 8 is the default). US ZM510 Indicator User Instructions... -
Page 29: Printed Preset Tare Report Example
442.000000 rESEt This clears the entire 200-channel database. This completes the Supervisor menu. To return to normal mode repeatedly press the ESC key to exit. 6.1 Printed Preset Tare report example Tare Index Preset Tare US ZM510 Indicator User Instructions... - Page 30 Supervisor menu US ZM510 Indicator User Instructions...
- Page 32 Avery Weigh-Tronix USA 1000 Armstrong Dr. Fairmont MN 56031 USA Tel:507-238-4461 Fax:507-238-4195 Email: usinfo@awtxglobal.com www.averyweigh-tronix.com Avery Weigh-Tronix UK Foundry Lane, Smethwick, West Midlands, England B66 2LP Tel:+44 (0) 8453 66 77 88 Fax:+44 (0)121 224 8183 Email: info@awtxglobal.com www.averyweigh-tronix.com...
