Summary of Contents for Avery Weigh-Tronix 1310
- Page 1 Model 1310 Truck Scale In/Out Application User’s Manual...
- Page 2 Weigh Bar is a registered trademark of Weigh-Tronix Inc. ® Model 1310 Truck Scale In/Out Application User’s Manual 01/10/03 1310TRUCK_IN_OUT_U.P65 PN 29805-0014A e1 Printed in USA...
-
Page 3: Table Of Contents
Error Messages from the Ghost Feature ..........17 911 Diagnostic Menu ................18 SCOMM Soft Key ................21 Ethernet 10/100 SMTP Option ..............25 Pages are numbered consecutively beginning with the cover page. Model 1310 Truck Scale In/Out Application User’s Manual... -
Page 4: 1310 Specifications
Displayed symbols indicate motion, center of zero, unit of measure and more. Display Model 1310—Dot graphic display, 5"W x 1.33"H provides images and up to eight lines of weight and/or text. 240 x 64 dots cold cathode flourescent backlit, white on blue. -
Page 5: Introduction
• Date • Stainless steel enclosure • Large graphic display The 1310 front panel is shown in Figure 1. The front panel includes the following: • Dot graphic display, 5"W x 1.33"H provides images and up to eight lines of weight and/or text. 240 x 64 pixel cold cathode flourescent backlit, white on blue •... -
Page 6: 1310 Front Panel
1 keys until the desired contrast is reached. The keys on the front panel of the 1310 are of two types, hard keys and soft Front Panel Keys keys. Hard keys are labeled directly and soft keys are labeled F1-F5. If a soft key has a function, its label appears at the bottom of the display. -
Page 7: Soft Keys
Soft keys are so-called because their function is not fixed. Function can change as mode of operations change or as the program for your particular setup changes. There are five predefined soft keys used in the Truck In/Out application. See Figure 1. Model 1310 Truck Scale In/Out Application User’s Manual... -
Page 8: Truck Scale In/Out Application Introduction
Truck Scale In/Out Application Introduction The Truck Scale In/Out software application installed in the 1310 allows you Overview to automate truck weighing. You can track up to 500 different open transac- tions and store up to 1,000 completed transactions. You can also store up to 4,000 tare weights. -
Page 9: Operation
ADV and PREV soft keys. ALT-S SELECT key ALT-Z ZERO key B) Use the keypad on the 1310, following the directions for ALT-T TARE key alphanumeric entry in the Front Panel Keys section of this ALT-C C key (clear) manual. -
Page 10: Outbound Procedure
TRUCK TRUCK BALC1254 BALC1254 BALC1254 TRUCK TRUCK BALC1254 BALC1254 The 1310 searches the OPEN database for the ID number. If the WEIGHT WEIGHT WEIGHT WEIGHT WEIGHT : 1344 : 1344 : 1344 : 1344 : 1344 lb lb lb lb lb ID number is found, see A below. - Page 11 3. Press YES if you want the ticket printed. Press NO if you don't want the ticket printed. . . The 1310 searches the OPEN database for the ID number. If the number is not found, the display informs you of that fact and returns to the weight display.
-
Page 12: Tare Soft Key (F2) Function
5. Key in the weight and press ENTER. . . The tare weight is stored under that tare number and the display returns to a net weight display with that tare value active. Model 1310 Truck Scale In/Out Application User’s Manual... -
Page 13: Print Key Function
: 3425 lb lb lb lb lb : 3425 : 3425 TIME: TIME: TIME: 11:58:43 11:58:43 11:58:43 TIME: TIME: 11:58:43 11:58:43 DATE: DATE: 11-12-01 11-12-01 DATE: DATE: DATE: 11-12-01 11-12-01 11-12-01 Figure 3 Tare ticket sample Model 1310 Truck Scale In/Out Application User’s Manual... -
Page 14: Clear Key Function
Below is an example of the data transmitted from the open transaction database (truck ID, inbound weight, inbound time, inbound date): 1,3485,12:01:45,11-12-01 11,3485,12:01:51,11-12-01 111,3485,12:01:55,11-12-01 1111,3485,12:02:01,11-12-01 11111,3485,12:02:06,11-12-01 15,3485,12:02:12,11-12-01 16,3485,12:02:17,11-12-01 17,3485,12:02:21,11-12-01 89,4015,12:02:27,11-12-01 125,4486,12:02:34,11-12-01 115,3938,12:02:44,11-12-01 4589,3551,12:02:50,11-12-01 47,3551,12:02:55,11-12-01 4789,3183,12:03:07,11-12-01 789,4523,12:03:14,11-12-01 456,4263,12:03:18,11-12-01 Model 1310 Truck Scale In/Out Application User’s Manual... - Page 15 Below is an example of the data transmitted from the completed transaction database (truck ID, inbound weight, inbound time, inbound date, outbound weight, outbound time, outbound date): 1,3485,12:01:45,11-12-01,5004,12:04:52,11-12-01 11,3485,12:01:51,11-12-01,5004,12:05:00,11-12-01 111,3485,12:01:55,11-12-01,5004,12:05:05,11-12-01 1111,3485,12:02:01,11-12-01,5004,12:05:12,11-12-01 11111,3485,12:02:06,11-12-01,5004,12:05:19,11-12-01 15,3485,12:02:12,11-12-01,5004,12:05:26,11-12-01 16,3485,12:02:17,11-12-01,5004,12:05:32,11-12-01 17,3485,12:02:21,11-12-01,5004,12:05:37,11-12-01 89,4015,12:02:27,11-12-01,5004,12:05:41,11-12-01 125,4486,12:02:34,11-12-01,5004,12:05:46,11-12-01 115,3938,12:02:44,11-12-01,5004,12:05:52,11-12-01 4589,3551,12:02:50,11-12-01,5004,12:05:59,11-12-01 47,3551,12:02:55,11-12-01,5004,12:06:06,11-12-01 4789,3183,12:03:07,11-12-01,5004,12:06:12,11-12-01 789,4523,12:03:14,11-12-01,5004,12:06:25,11-12-01 456,4263,12:03:18,11-12-01,5004,12:06:32,11-12-01 Model 1310 Truck Scale In/Out Application User’s Manual...
-
Page 16: Accessing Software Version
4. Press the soft key labeled VERS. The software version will appear on the display. Setting Time and Date 1. Press and hold the ESCAPE key until the Model 1310 beeps. . . The display asks for a password and looks like the example shown below: 2. -
Page 17: Error Messages
You may see an error message when the Ghost feature is enabled. Error Message from the Ghost Feature The display at left tells you the Ghost option is functioning and that Cell X has failed. Model 1310 Truck Scale In/Out Application User’s Manual... -
Page 18: 911 Diagnostic Menu
911 Diagnostic Menu The 1310 has an emergency help menu with a password of 911 to help you diagnose problems with SensorComm components. Following are the instructions you need to access this menu and explanations of each part of the menu that pertain to the SensorComm option. Figure 4 shows a flow chart of the soft keys in the 911 menu. - Page 19 Accesses the following keys: This diagnostic will only appear if a network option card is installed. Follow the instructions on the display. For more information reference the 1310 Network Installa- tion Guide PN29806-0013. Model 1310 Truck Scale In/Out Application User’s Manual...
- Page 20 (% of scale capacity). (See the Service Manual for configuration information.) For the next weightment to increment the counter, the weight must fall below the configured re-arm point (% of scale capacity). Model 1310 Truck Scale In/Out Application User’s Manual...
-
Page 21: Scomm Soft Key
This display shows you the serial number, part number and software revision level of SensorComm #1. Press the NEXT or PREV soft key to other active SensorComm J-boxes. Model 1310 Truck Scale In/Out Application User’s Manual... - Page 22 This display shows you the current output in mV/V for each sensor attached to SensorComm #1. Press the PREV or NEXT soft key to move between multiple SensorComm j-box displays. Model 1310 Truck Scale In/Out Application User’s Manual...
- Page 23 The screen will look similar to the one below: View other connected SensorComm j-boxes by using the PREV or NEXT soft key. Press DONE to return to the previous level display. Model 1310 Truck Scale In/Out Application User’s Manual...
- Page 24 Press the appropriate softkey to scroll through the available error messages. Time and dates of errors are displayed. X = active error Y = Number of errors 2 = Cell number that was "ghosted" Model 1310 Truck Scale In/Out Application User’s Manual...
-
Page 25: Ethernet 10/100 Smtp Option
If your 1310 has the optional Ethernet 10/100 SMTP card installed, your system can be configured to send you an email informing you of system Email data will display system errors as they occur. Follow the steps below to set up your 1310 for auto- overload and underload counts notification. - Page 26 Model 1310 Truck Scale In/Out Application User’s Manual...
- Page 27 Model 1310 Truck Scale In/Out Application User’s Manual...
- Page 28 Avery Weigh-Tronix Avery Weigh-Tronix Canada, ULC 1000 Armstrong Dr. 217 Brunswick Boulevard Fairmont, MN 56031 USA Pointe Claire, QC H9R 4R7 Canada Telephone: 507-238-4461 Telephone: 514-695-0380 Facsimile: 507-238-4195 Toll free: 800-561-9461 e-mail: industrial@weigh-tronix.com Facsimile: 514-695-6820 www.wtxweb.com www.weigh-tronix.ca Weigh Bar ®...
Need help?
Do you have a question about the 1310 and is the answer not in the manual?
Questions and answers

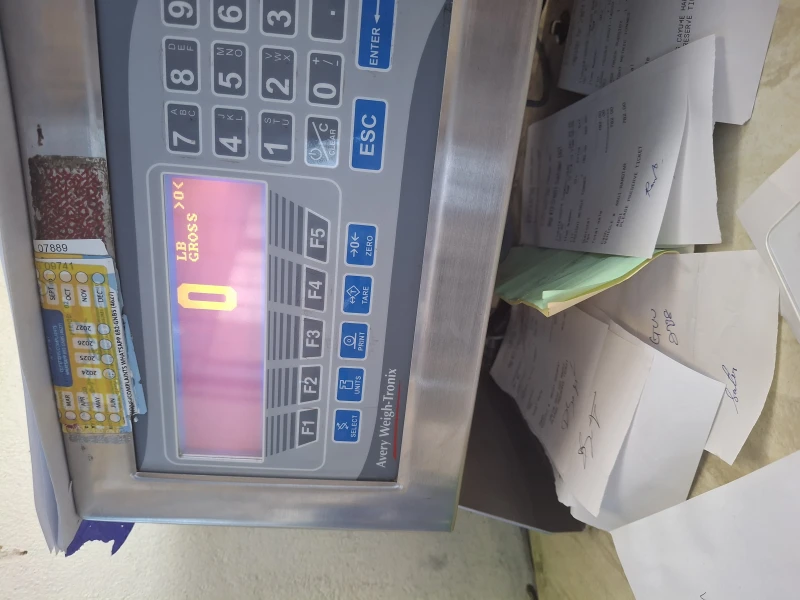

How to Install an auxiliary keyboard to input id feulds since keypad gas issues
To install an auxiliary keyboard for the Avery Weigh-Tronix 1310 to input ID fields, connect an optional remote alphanumeric keyboard to the keyboard port on the 1310. Once attached, only alpha entries can be made from the front panel keys, while the remote keyboard allows full alphanumeric entry.
