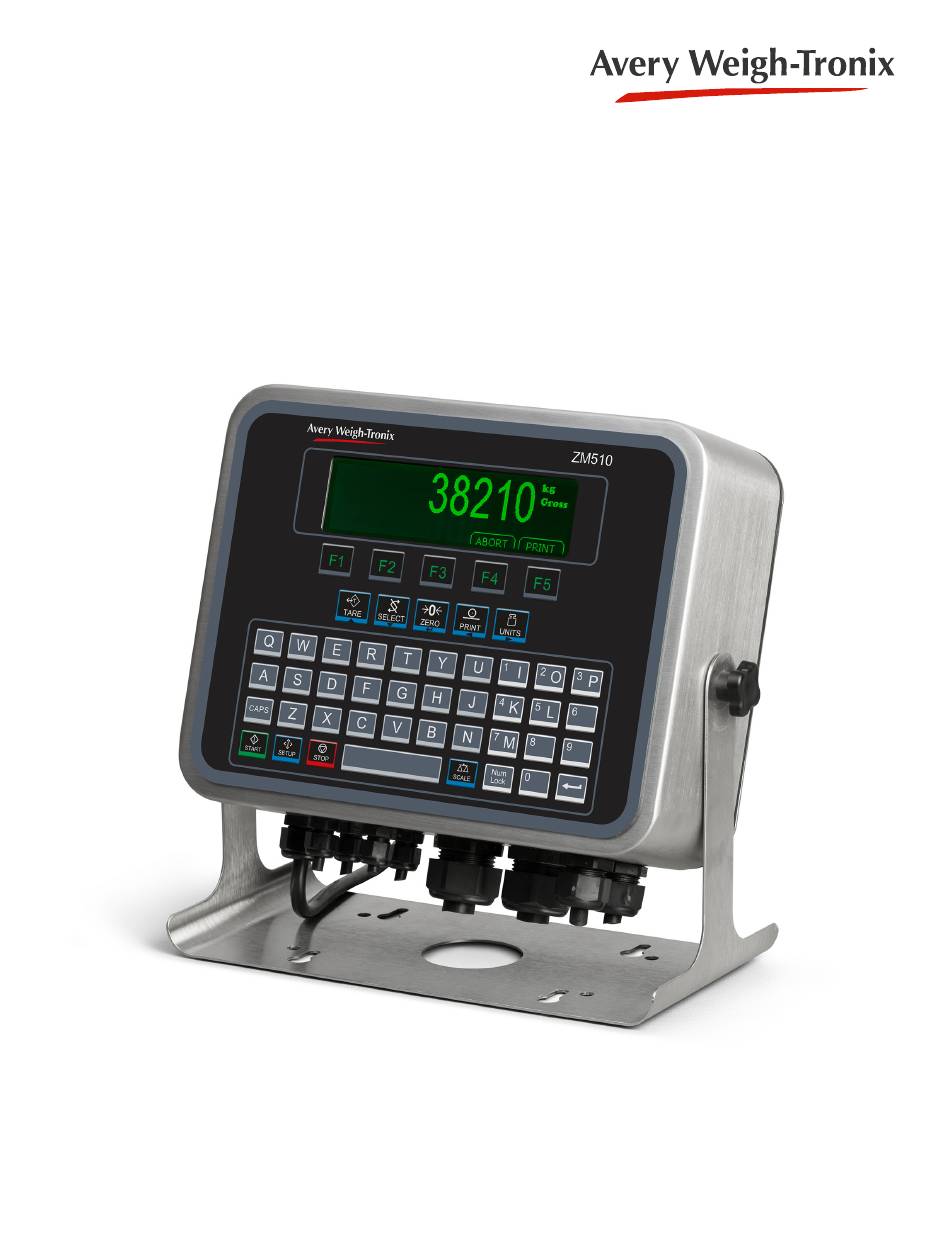

- Page 1 ZM510 Indicator User Instructions UK & ROW AWT35-501342 Issue AC...
- Page 2 This publication was correct at the time of going to print, however Avery Weigh-Tronix reserves the right to alter without notice the specification, design, price or conditions of supply of any product or service at any time.
-
Page 3: Table Of Contents
Declarations of Conformity ....................8 Chapter 2 Introduction ..........................11 Front Panel Keys ......................13 Powering up a ZM510 indicator ..................14 Menu navigation ....................... 14 Escaping or exiting from a menu ................14 Chapter 3 Weighbridge application ....................... 15 IN/OUT weighing (‘Stored and Printed’... - Page 4 VEHICLE TARE ......................33 HAULIERS ........................ 33 PLU ........................... 33 CUST/SUPP ......................33 UDF’s ........................34 PUBLIC ........................34 AXLE ......................... 34 Database manager menu ....................36 Creating or updating a database ................36 Deleting a database ....................36 Deleting an unused vehicle ..................37 Editing an existing record ..................
-
Page 5: Chapter 1 General Information And Warnings
NOTE: This is a Note symbol. Notes give additional and important information, hints and tips that help you to use your product. 1.2 Installation NO USER SERVICEABLE PARTS. REFER TO QUALIFIED SERVICE PERSONNEL FOR SERVICE. ZM510 Indicator User Instructions... -
Page 6: Safe Handling Of Equipment With Batteries
IMPORTANT: This equipment must be routinely checked for proper operation and calibration. Application and usage will determine the frequency of calibration required for safe operation. Always isolate the indicator from the power supply before starting any routine maintenance to avoid the possibility of electric shock. ZM510 Indicator User Instructions... -
Page 7: Cleaning The Machine
Classe A prescrites dans le Règlement sur le brouillage radioélectrique edicté par le ministère des Communications du Canada. European Countries WARNING: This is a Class A product. In a domestic environment, this product may cause radio interference in which the user may be required to take adequate measures. ZM510 Indicator User Instructions... -
Page 8: Declarations Of Conformity
General information and warnings 1.8 Declarations of Conformity ZM510 Indicator User Instructions... - Page 9 Declarations of Conformity ZM510 Indicator User Instructions...
- Page 10 General information and warnings ZM510 Indicator User Instructions...
-
Page 11: Chapter 2 Introduction

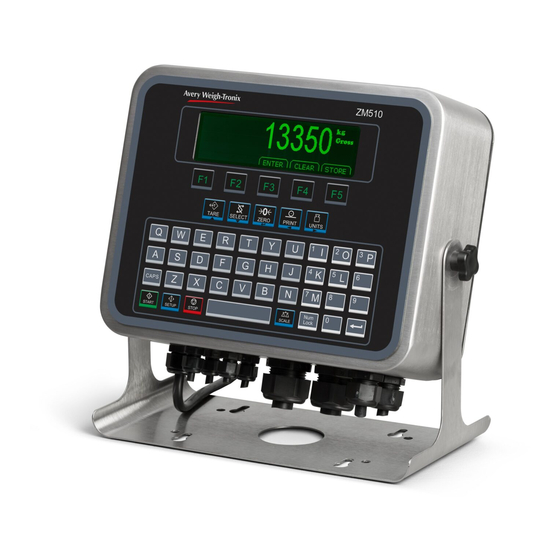

The ZM510 indicator can support up to four weighbridges with a maximum total of 24 - 350 ohm load cells. The indicators require 90 VAC - 264 VAC, 50 or 60 Hz or 12- 36VDC. - Page 12 Introduction Figure 2.1 shows the front panel of the ZM510 indicator which consists of the keys and the graphic display. Figure 2.1 ZM510 front panel Never press a key with anything but your finger. Damage to the overlay may result if sharp or rough objects are used.
-
Page 13: Front Panel Keys
It can also be used to view the password entry SETUP screen for menu access. Press the STOP key to stop a process defined by the active program. STOP This key is not active in the Weighbridge application. ZM510 Indicator User Instructions... -
Page 14: Powering Up A Zm510 Indicator
50 or 60 Hz, or 12-36 VDC. 2.3 Menu navigation The menus used to configure the ZM510 are accessed with passwords. In general, a menu is made up of a group of top level items, sub levels under each of those and lists of items to view or configure. -
Page 15: Chapter 3 Weighbridge Application
IN/OUT weighing (‘Stored and Printed’ mode) Weighbridge application The ZM510 comes with a Weighbridge application running as the default program. There are two types of weighing that can be done within this application: IN/OUT weighing IN/OUT weighing enables the indicator to calculate the net weight of goods on a vehicle after an IN and an OUT weighment. -
Page 16: Step By Step
PRINT The -., key will insert a dash, a period or a comma with each successive press of the key. Press the Num Lock key to enter numbers and press it again to stop entering numbers. ZM510 Indicator User Instructions... - Page 17 ID number on the keypad to quickly move to that section of the database list. Once the correct vehicle registration is highlighted by the asterisk (*), press the ENTER key … ZM510 Indicator User Instructions...
- Page 18 The IN weight is deleted when the OUT weighment is finished. The screen returns to the default screen, see below, and this closes out the process for this vehicle. Repeat for other vehicles. Gross VTARE PUBLIC ZM510 Indicator User Instructions...
-
Page 19: Public Weighing
IDs or press the first letter or number of the vehicle ID number on the keypad to quickly move to that section of the database list. Once the correct vehicle registration is highlighted by an asterisk (*), press the ENTER key … ZM510 Indicator User Instructions... - Page 20 ID is not stored. See a sample of the default print format (#13) below. –- PUBLIC WEIGHT – Date 29-12-2016 Time 12:57:02 ID RJ16PNO Transaction 51 Weight 38210 The display returns to the startup screen. See example below. Gross VTARE PUBLIC ZM510 Indicator User Instructions...
-
Page 21: Using The Vtare (Vehicle Tare) Key
(*), press the ENTER key … The current live weight is shown and four softkeys appear: ABORT, ENTER, CLEAR and STORE. 11210 Gross ABORT ENTER CLEAR STORE Your choices are to do either step 4 or 5 or 6. ZM510 Indicator User Instructions... - Page 22 The default startup screen is displayed. Press CLEAR to clear the current vehicle tare weight. Press STORE to accept the displayed weight value as the tare weight. Be sure to turn off NUM LOCK when done entering numbers. ZM510 Indicator User Instructions...
-
Page 23: Chapter 4 Menus
User menu Menus The ZM510 three user accessible menus: User menu - Use to set Time, Date, Site ID, check Seal status and check Archive information. About menu - Use to see information on the software, firmware, application, serial number, options, ethernet and downloads Audit menu - Use this to check and/or print the calibration and configuration counters. -
Page 24: About Menu
If you access the About menu you will see this menu: Boot Firm Serial Option Enet DLoad Definitions: Bootloader Software that makes the electronics run. Firmware Embedded system software that creates core functions of the product. Specific software that controls the behaviour for a given installation. ZM510 Indicator User Instructions... - Page 25 Cal. Ser - View the serial number of the cell that WAS connected at the time of calibration. You can exit the menu by following the instructions in Escaping or exiting from a menu on page 14. ZM510 Indicator User Instructions...
-
Page 26: Audit Menu
USB. Printing to USB will create a folder on the flash drive and a comma separated file with the data. You can exit the menu by following the instructions in Escaping or exiting from a menu on page 14. ZM510 Indicator User Instructions... -
Page 27: Chapter 5 Communications
Default print formats Communications The ZM510 can communicate through these ports: Serial Ethernet Wireless 802.11g 5.1 Default print formats Below are examples of the default formats that are available: Print format #1 (GTN) Gross 43500 kg Tare 13350 kg 30150 kg Print format #12 (Axle weighing ticket) -–... - Page 28 In Date 28-12-2016 In Time 10:50:45 RJ16PNO In Weight 43500 kg Print format #16 (Outbound ticket) In Date 28-12-2016 In Time 10:50:45 Out Date 2016-12-14 Out Time 10:56:04 RJ16PNO Transaction Gross 43500 kg Tare 13350 kg 30150 kg ZM510 Indicator User Instructions...
-
Page 29: Chapter 6 Error Messages
6.4 ‘Copying to or from USB’ errors Failed to Copy File Something interfered with the copy process. Check USB device. Can’t Close database Software error. Restart indicator. File Not Found File doesn’t exist. Create the database. ZM510 Indicator User Instructions... -
Page 30: Chapter 7 Supervisor Information
1st Level Choices 2nd Level Choices Supervisor Top Level RE-ENTERED IN MODE STORED IN STORED AND PRINTED INTERLOCK ENTER WT INTERLOCK DISABLED MULTIPLE IN ENABLED DISABLED MANDATORY IN MANDATORY OUT NON-MANDATORY IN PRINT PRINT FORMAT choice ZM510 Indicator User Instructions... -
Page 31: Supervisor Menu Details
OUT weighment only those vehicles that have an active IN weight will be listed. When you do the OUT weighing the database is updated and the IN / OUT weights will be sent to the printer and the IN weight will no longer be active. ZM510 Indicator User Instructions... -
Page 32: Interlock
NWA must be done during the IN weighment. MANDATORY OUT - NWA must be done during the OUT weighment. NON-MANDATORY - You have the option to do an NWA at the start of the OUT weighment. ZM510 Indicator User Instructions... -
Page 33: In Print
OUT weighment process. When one is selected the user can then pick the name of the customer or supplier from the list that appears onscreen. DISABLED - This function is disabled. ENABLED - This function is enabled. ZM510 Indicator User Instructions... -
Page 34: Udf's
ID RJ16PNO Transaction 17 Axle 1 3940 Axle 2 3940 Axle 3 4220 Axle 4 4320 Axle 5 4420 Axle 6 3440 Axle 7 3340 Axle 8 3140 Axle 9 4120 Axle 10 4040 Sum 38920 ZM510 Indicator User Instructions... - Page 35 Do not require vehicle ID. No ID is required to perform a weighment Require vehicle ID. An ID is required before a weighment can be performed. PRINT FORMAT Type in the desired format number and press ENTER to accept. ZM510 Indicator User Instructions...
-
Page 36: Database Manager Menu
7.3.2 Deleting a database To delete a database you must import an empty database using USB or FTP. This will overwrite an existing database and leave all the records blank. ZM510 Indicator User Instructions... -
Page 37: Deleting An Unused Vehicle
7.3.4 Editing an existing record Follow these steps to edit a record that exists in the ZM510. Hold the SETUP key until the password entry screen appears and enter 1000 and press ENTER …... - Page 38 Select this item to type in a grand total weight for the customer. Erase Select this item and this message is displayed: Erasing Customer. The customer is erased from the database. Editing SUPPLIER item Here are the items listed if you choose to edit the SUPPLIER record: ZM510 Indicator User Instructions...
- Page 39 Select this item to type in a grand total weight for the supplier. Erase Select this item and this message is displayed: Erasing Supplier. The supplier is erased from the database. When you are finished, press the ESC softkey to return to normal weighing mode. ZM510 Indicator User Instructions...
- Page 40 Supervisor information ZM510 Indicator User Instructions...
- Page 42 Avery Weigh-Tronix USA 1000 Armstrong Dr. Fairmont MN 56031 USA Tel:507-238-4461 Fax:507-238-4195 Email: usinfo@awtxglobal.com www.averyweigh-tronix.com Avery Weigh-Tronix UK Foundry Lane, Smethwick, West Midlands, England B66 2LP Tel:+44 (0) 8453 66 77 88 Fax:+44 (0)121 224 8183 Email: info@awtxglobal.com www.averyweigh-tronix.com...
