- Page 1 ZM605 Indicator User Instructions AWT35-501346 Issue AC...
- Page 2 This publication was correct at the time of going to print, however Avery Weigh-Tronix reserves the right to alter without notice the specification, design, price or conditions of supply of any product or service at any time.
-
Page 3: Table Of Contents
Declarations of Conformity ....................9 Chapter 2 Introduction ..........................12 Front Panel Keys ......................14 Powering up a ZM605 indicator ..................15 Using the alphanumeric keypad ..................15 Entering negative numbers or decimal point ..............15 Menu access and navigation ................... 15 Escaping or exiting from a menu ................ - Page 4 ZM605 Indicator User Instructions...
-
Page 5: Chapter 1 General Information And Warnings
NOTE: This is a Note symbol. Notes give additional and important information, hints and tips that help you to use your product. 1.2 Installation NO USER SERVICEABLE PARTS. REFER TO QUALIFIED SERVICE PERSONNEL FOR SERVICE. ZM605 Indicator User Instructions... -
Page 6: Safe Handling Of Equipment With Batteries
IMPORTANT: This equipment must be routinely checked for proper operation and calibration. Application and usage will determine the frequency of calibration required for safe operation. Always isolate the indicator from the power supply before starting any routine maintenance to avoid the possibility of electric shock. ZM605 Indicator User Instructions... -
Page 7: Cleaning The Machine
To avoid the risk of RSI (Repetitive Strain Injury), place the machine on a surface which is ergonomically satisfactory to the user. Take frequent breaks during prolonged usage. 1.6 Sharp objects Do not use sharp objects such as screwdrivers or long fingernails to operate the keys. ZM605 Indicator User Instructions... -
Page 8: Fcc And Emc Declarations Of Compliance
Classe A prescrites dans le Règlement sur le brouillage radioélectrique edicté par le ministère des Communications du Canada. European Countries WARNING: This is a Class A product. In a domestic environment, this product may cause radio interference in which the user may be required to take adequate measures. ZM605 Indicator User Instructions... -
Page 9: Declarations Of Conformity
Declarations of Conformity 1.8 Declarations of Conformity ZM605 Indicator User Instructions... - Page 10 General information and warnings ZM605 Indicator User Instructions...
- Page 11 Declarations of Conformity ZM605 Indicator User Instructions...
-
Page 12: Chapter 2 Introduction

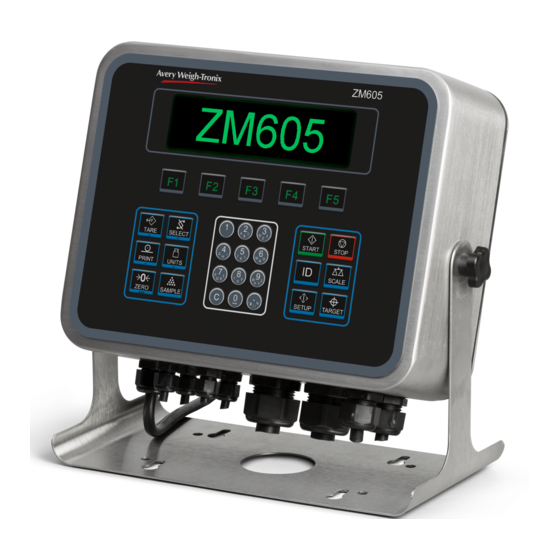

Both have a high contrast, graphic display for text and graphic messages appropriate to the function of the program. The ZM605 indicator can support up to 24 - 350 ohm load cells. The indicator requires 90 VAC - 264 VAC, 50 or 60 Hz or 12-36VDC. The standard indicator connectivity includes two USB Host, three serial ports and an Ethernet port. - Page 13 Figure 2.1 shows the front panel of the ZM605 indicator which consists of the keys and the graphic display. ZM605 TARE SELECT START STOP PRINT UNITS SCALE ZERO SAMPLE SETUP TARGET Figure 2.1 ZM605 front panel Never press a key with anything but your finger. Damage to the overlay may result if sharp or rough objects are used.
-
Page 14: Front Panel Keys
The SETUP key can be used to perform custom application functions. It can also be used to view the password entry screen for menu access. SETUP The TARGET key can be used to perform custom application functions. TAR GET ZM605 Indicator User Instructions... -
Page 15: Powering Up A Zm605 Indicator
(-) negative sign. Enter the rest of the digits normally. To enter a decimal point (or comma), on a ZM605 use the decimal point key. To enter a value less than 1 requires the entry of the leading 0 before a decimal point is allowed. -
Page 16: Escaping Or Exiting From A Menu
The indicator will reboot and return to the startup screen. 2.6 Adjusting screen contrast To decrease or increase the screen contrast press and hold the UNITS key and press the TARE (UP arrow) or SELECT (DOWN arrow) key repeatedly. ZM605 Indicator User Instructions... -
Page 17: Chapter 3 Operating Instructions
Power Up Operating Instructions The ZM605 provides multiple tare memory, transaction counter and weight accumulator. SELECT key default function: You can view the gross, net, tare, gross total, net total, tare total and transaction total display values or other configured scale parameters by repeatedly pressing SELECT. - Page 18 TARE for 3 seconds the display will show cLEArEd and the Tare weight is cleared. If gross weight is not at 0, press the ZERO key; then press the TARE key to clear the tare value. ZM605 Indicator User Instructions...
- Page 19 When the item is removed from the scale the Tare is cleared automatically if Auto Tare Clear is enabled. To remove the tare weight manually, select a preset tare that has a value of 0 for the tare or press and hold TARE for three seconds. ZM605 Indicator User Instructions...
-
Page 20: Using The Accumulation Function
Press this key and the alphanumeric entry screen appears. Enter Channel 7 Characters Max Clear # / ' % Key in the Channel number and press the ENTER key. Remember to press the Num Lock key to enable the numeric keys. ZM605 Indicator User Instructions... -
Page 21: Performing Accumulation Weighments
Enter ID 7 Digits Max Clear Use the keypad on the ZM605 to enter up to seven digits for the ID. When you have entered the ID, press the ENTER key and the following is displayed … Gross Accum Chan: 5... - Page 22 If enabled, press and hold the PRINT key to transmit current active total channel data out serial port #1. This will also clear the current active channel data if the clear feature is enabled under the Supervisor’s Menu. ZM605 Indicator User Instructions...
-
Page 23: Chapter 4 Menus
User menu Menus The ZM605 three user accessible menus: User menu - Use to set Time, Date, Site ID, check Seal status and check Archive information. About menu - Use to see information on the software, firmware, application, serial number, options, ethernet and downloads Audit menu - Use this to check and/or print the calibration and configuration counters. -
Page 24: About Menu
If you access the About menu you will see this menu: Boot Firm Serial Option Enet DLoad Definitions: Bootloader Software that makes the electronics run. Firmware Embedded system software that creates core functions of the product. Specific software that controls the behaviour for a given installation. ZM605 Indicator User Instructions... - Page 25 Cal. Ser - View the serial number of the cell that WAS connected at the time of calibration. You can exit the menu by following the instructions in Escaping or exiting from a menu on page 16 . ZM605 Indicator User Instructions...
-
Page 26: Audit Menu
USB. Printing to USB will create a folder on the flash drive and a comma separated file with the data. You can exit the menu by following the instructions in Escaping or exiting from a menu on page 16 . ZM605 Indicator User Instructions... -
Page 27: Chapter 5 Error Messages
File doesn’t exist. Create the database. 5.3 BSQ errors BSQ Error Communications error BSQ XCAL BSQ Calibration Mismatch Error - cell that is connected to the scale is not the cell that was calibrated. X = scale number. ZM605 Indicator User Instructions... -
Page 28: Chapter 6 Supervisor Menu
The display will flash Prn-tot . Tot Fmt This stands for Total Format. This is the designated print format number used for the accumulated totals of the current active channel. (Format 8 is the default). ZM605 Indicator User Instructions... -
Page 29: Printed Preset Tare Report Example
2524.000000 442.000000 rESEt This clears the entire 200-channel database. This completes the Supervisor menu. To return to normal mode repeatedly press the ESC key to exit. 6.1 Printed Preset Tare report example Tare Index Preset Tare ZM605 Indicator User Instructions... - Page 30 Supervisor menu ZM605 Indicator User Instructions...
- Page 32 Avery Weigh-Tronix USA 1000 Armstrong Dr. Fairmont MN 56031 USA Tel:507-238-4461 Fax:507-238-4195 Email: usinfo@awtxglobal.com www.averyweigh-tronix.com Avery Weigh-Tronix UK Foundry Lane, Smethwick, West Midlands, England B66 2LP Tel:+44 (0) 8453 66 77 88 Fax:+44 (0)121 224 8183 Email: info@awtxglobal.com www.averyweigh-tronix.com...
