Ducting Options

spaces between walls, crawl spaces, ceilings, attics, or garages.
Use single wall rigid metal ductwork only.
Fasten all connections with sheet metal screws and tape all joints w/ certified Silver Tape or Duct
Tape.
Venezia Use, Care, and Installation Guide
WARNING
Fire Hazard: NEVER exhaust air or terminate ductwork into
All exhaust must be ducted to the outside, unless using the
recirculating option.

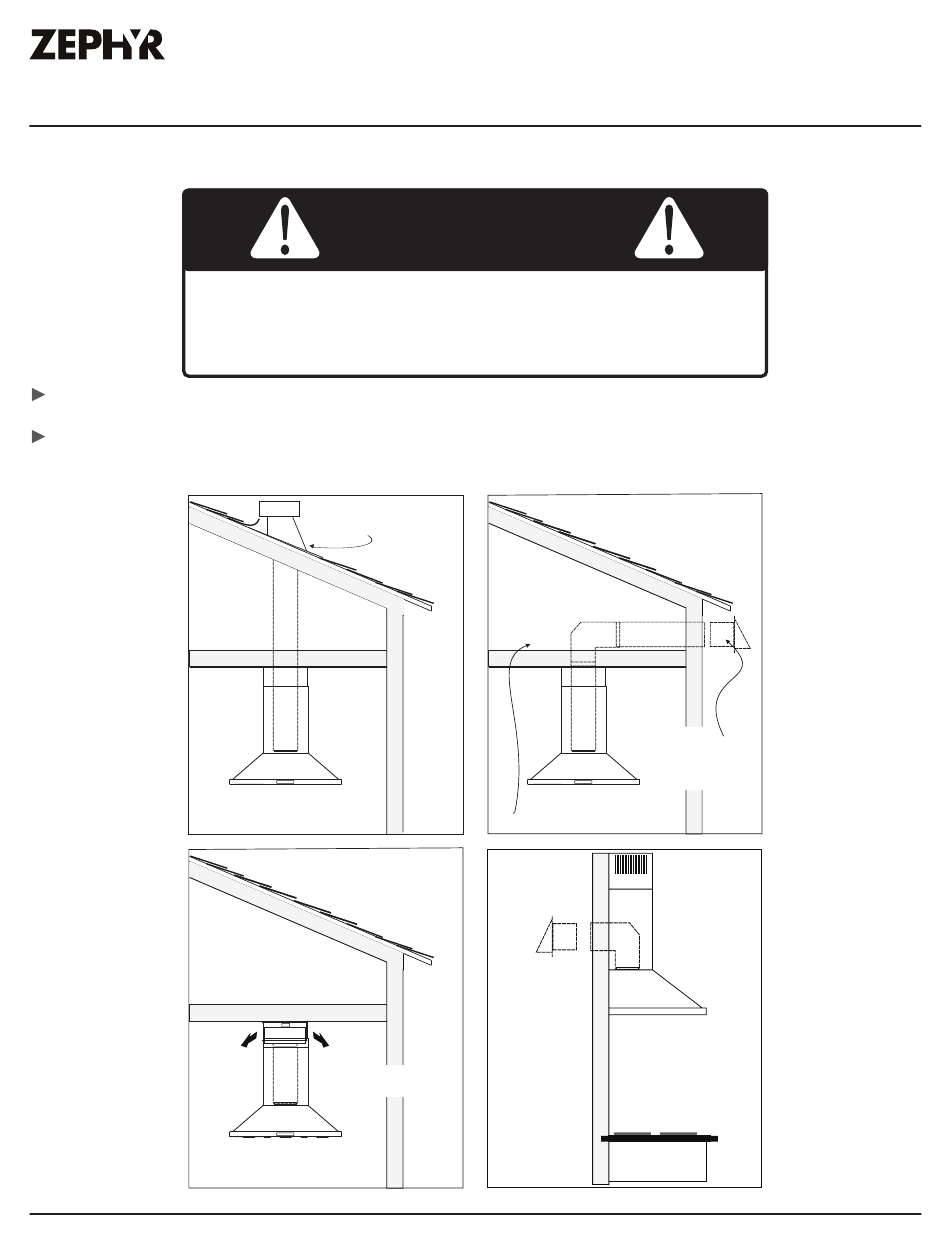

roof pitch w/
flashing & cap
ductless
recirculating
Installation Instructions
side wall cap
w/ gravity
damper
Soffit or crawl space
side wall cap
w/ gravity
damper
