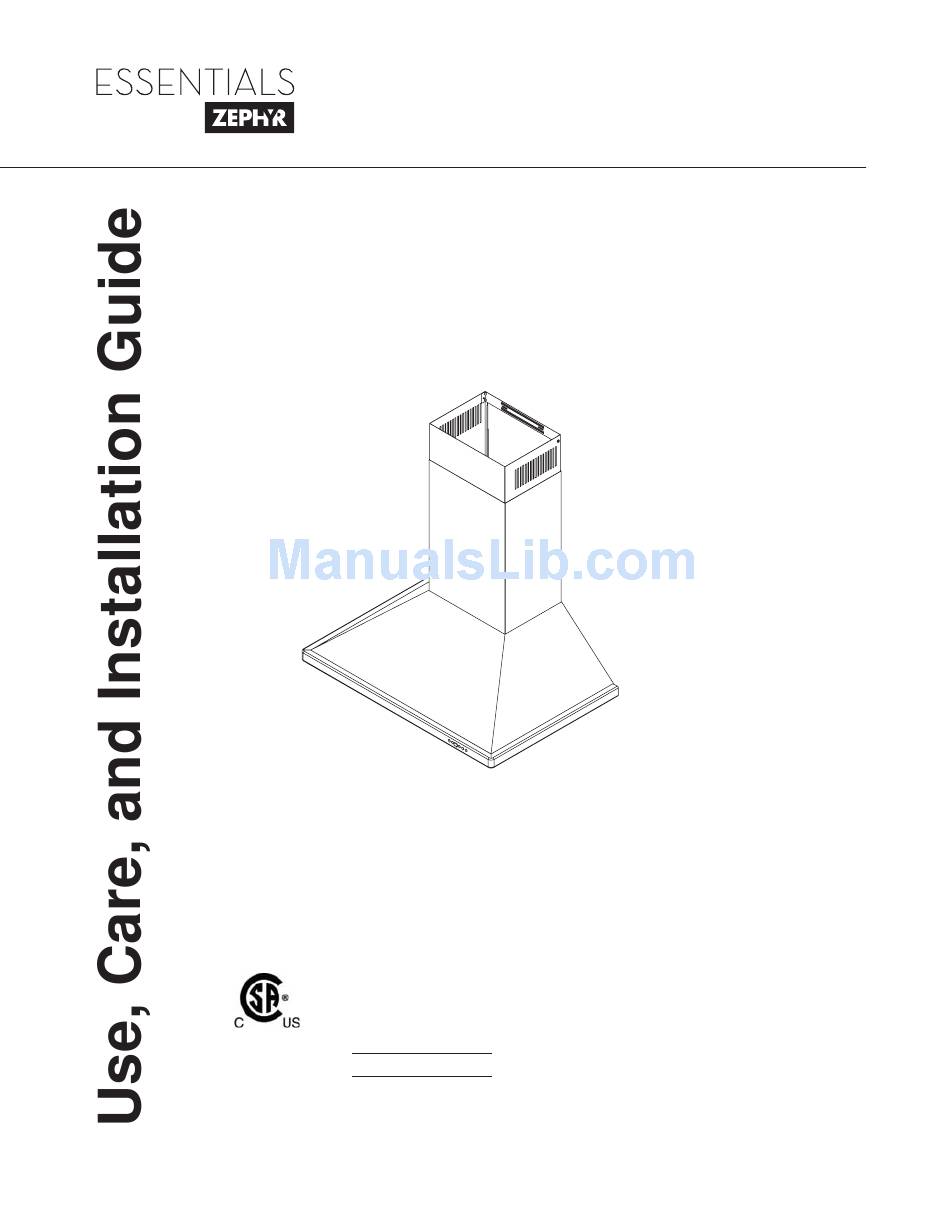

- Page 1 Venezia ZVE-E30AS ZVE-E36AS ZVE-E42AS Model number: Serial Number: JUL08.0201 © Zephyr Corporation...
- Page 2 www.zephyronline.com...
- Page 3 SAFETY NOTICE ..............LIST OF MATERIALS ............INSTALLATION Ducting Calculation Sheet ........Mounting Height & Clearance ........ Ducting Options ............Hood Speci cations ........... Mounting the Range Hood ........Ductless Recirculating ..........FEATURES & CONTROLS Touch Controls ............. Charcoal Filter Replace Reminder ......
- Page 4 www.zephyronline.com READ AND SAVE THESE INSTRUCTIONS WARNING TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT USE THIS FAN WITH ANY SOLID-STATE CONTROL DEVICE. WARNING TO REDUCE THE RISK OF FIRE ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING: a.
- Page 5 WARNING TO REDUCE THE RISK OF FIRE, USE ONLY METAL DUCTWORK. CAUTION To reduce risk of re and to properly exhaust air outside - Do not vent exhaust air into spaces within walls, ceilings, attics, crawl spaces or garages. OPERATION Always leave safety grilles and lters in place.
- Page 6 www.zephyronline.com MODELS: ZVE-ExxAS PARTS SUPPLIED 1 - Hood with internal blower 3 - Metal mesh filters (2 for ZVE-E30AS) 1 - Duct cover assembly (top and bottom) 1 - Duct cover wall bracket 4 - 50W GU-10 halogen light bulbs (2 for ZVE-E30AS) 1 - 6”...
- Page 7 Equivalent number Equivalent number Duct pieces Duct pieces length x used T otal length x used T otal 3- 1/ 4” x 10” 1 Ft. 6”- 8” Round 30 Ft. Rect., wall cap straight with damper 7” Round, 1 Ft. 6”- 8”...
- Page 8 www.zephyronline.com Minimum mount height between range top to hood bottom should be no less than 28”. Maximum mount height should be no higher than min. ducted 32-1/2” 36”. min. recirc. 36“ max. 51” It is important to install the hood at the proper mounting height.
- Page 9 WARNING FIRE HAZARD NEVER exhaust air or terminate duct work into spaces between walls, crawl spaces, ceiling, attics or garages. All exhaust must be ducted to the outside, unless using the recirculating option. Use single wall rigid Metal ductwork only. Fasten all connections with sheet metal screws and tape all joints w/ certi ed Silver Tape or Duct Tape.
- Page 10 www.zephyronline.com Front of Hood Side of Hood ” 5/16 ” min. ducted 32-1/2”” min. recirc. 36” max. 51” ”, 35- ”, 41- 15/16 15/16 15/16” 24” Top of Hood 2” electrical...
- Page 11 CAUTION: At least two installers are required due to the weight and size of the hood. 1. Measure from range top to hood bottom and mark line A. Duct Cover Bracket (28” minimum from range top) . 2. Plum and mark center line. 9-7/16"...
- Page 12 www.zephyronline.com Ductless recirculating is intended for applications where an exhaust duct work is not possible to be installed. When converted, the hood functions as a recirculating hood rather than an exhaust hood. Fumes and exhaust from cooking are drawn and ltered by a set of optional charcoal lters. The air is then puri ed and re- circulated back within the home.
- Page 13 Blower On/Off Display (speed level, delay off, filter clean/change) Lights On/Dim/Off Adjust 6 Speed Levels 15 Min Delay Off 1. Blower On/Off By pressing the blower is switched on and off. When switched on, the blower starts up on speed level 3. 2.
- Page 14 www.zephyronline.com Charcoal Filter Change Reminder (charcoal filter, if installed) When your hood is installed as a recirculating unit, it is fitted with a set of charcoal filters to purify exhaust and fumes from cooking, then re-circulates the air within the home. These charcoal filters are required to be replaced after every 120 hours of use.
- Page 15 Metal Filter Clean Reminder (metal mesh filter) Whether your hood is installed as an exhaust or purifying unit, a set if metal mesh filters are fitted by the factory, These metal mesh filters are intended to filter out residue from cooking. They need not be replaced on a regular basis but are required to be kept clean.
- Page 16 www.zephyronline.com SURFACE MAINTENANCE: Clean periodically with hot soapy water and clean cotton cloth. Do not use corrosive or abrasive detergent , or steel wool/scouring pads which will scratch and damage surface. For heavier soil use liquid degreaser. After cleaning it is recommended that you use non-abrasive stainless steel polish/cleaners, to polish and buff out the stainless luster and grain.
- Page 17 If bulbs are dif cult to turn due to prolonged use, rmly attach a glass suction cup approximately the diameter of the bulb or use a rubber/latex glove and turn counter clockwise. Replacement bulbs are available at specialty lighting stores. Purchase type MR16 (GU-10) 50W halogen. For Zephyr part numbers please turn to page 17 of the manual.
- Page 18 www.zephyronline.com TROUBLESHOOTING PROCEDURES FOR VENEZIA Issue Cause What to do After installation, 1. The power source is not turned ON. 1. Make sure the circuit breaker and the unit’s the unit doesn’t power is ON. work. 2. The power line and the cable locking connector 2.
- Page 19 DESCRIPTION PART# Replacement Parts Light Bulb MR16 (GU10) 50W (each) Z0B0020S Metal Mesh Filter (each) 50200004 Optional Accessories Recirculating Kit, ZVE-E30AS ZRC-0050 Recirculating Kit, ZVE-E36AS/E42AS ZRC-0051 Replacement Charcoal Filter (each) Z0F-C002 Duct Cover Extension Kit Z1C-00VE To order parts, visit us online at http://store.zephyronline.com or call us at 1.888.880.8368...
- Page 20 Zephyr Corporation (referred to herein as “we” or “us”) warrants to the original consumer purchaser (referred to herein as “you” or “your”) of Zephyr products (the “Products”) that such Products will be free from defects in materials or work- manship as follows: Two Year Limited Warranty for Parts: For two years from the date of your original purchase of the Products, we will provide, free of charge, Products or parts to replace those that failed due to manufacturing defects.
