Jumper & Connector Guide

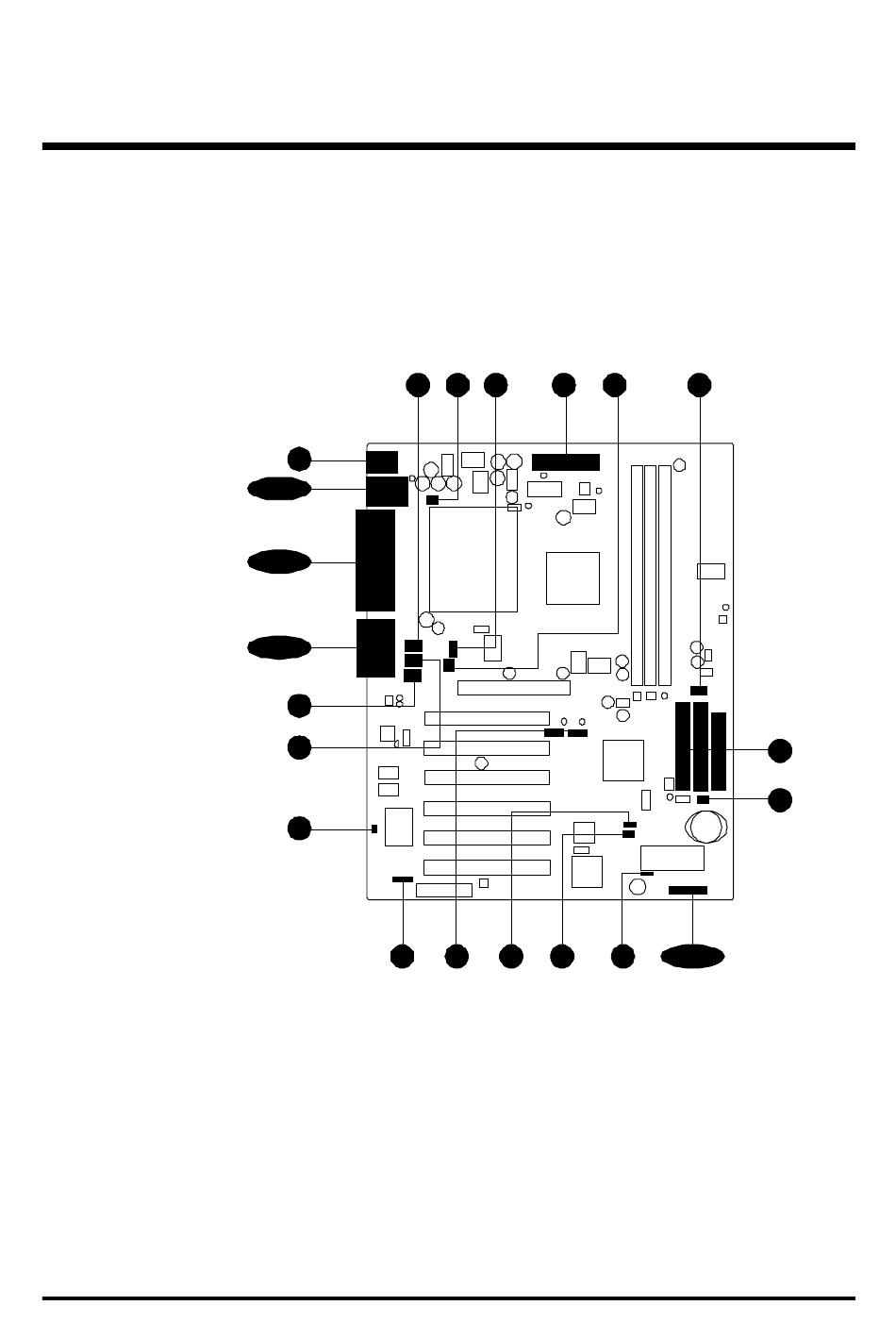

Use the mainboard layout on page 11 to locate CPU socket, memory slots,
expansion slots, jumpers and connectors on the mainboard during
installation. The following list will help you identify jumpers, slots, and
connectors along with their assigned functions:
B1
B2~B3
B4~B5
B6~B9
E7
E5
E8
CPU/Memory/Expansion Slots
Socket 370
DIM1/2/3
AGP
CNR
PCI
E2 A1
E6
E3 C8
: CPU Socket for PPGA and FC-PGA 370 processors
: Three DIMM Slots for 64, 128, 256, 512 MB, and 1GB
of 2.5V DDR SDRAM
: One AGP (Accelerated Graphics Port) Slot
: One CNR Expansion Slot for Communication/Network
Riser Cards
: Six 32-bit PCI Expansion Slots
- 25 -
E1 E2
A4
E4 A3 C1~C7
A2
D1
E2
