Peachy Fuzz
Frantastically heavy but
smooth fuzz tones
Contents of this document are ©2014 Pedal Parts Ltd.
No reproduction permitted without the express written
permission of Pedal Parts Ltd. All rights reserved.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Peachy Fuzz and is the answer not in the manual?

Questions and answers

Summary of Contents for FuzzDog Peachy Fuzz

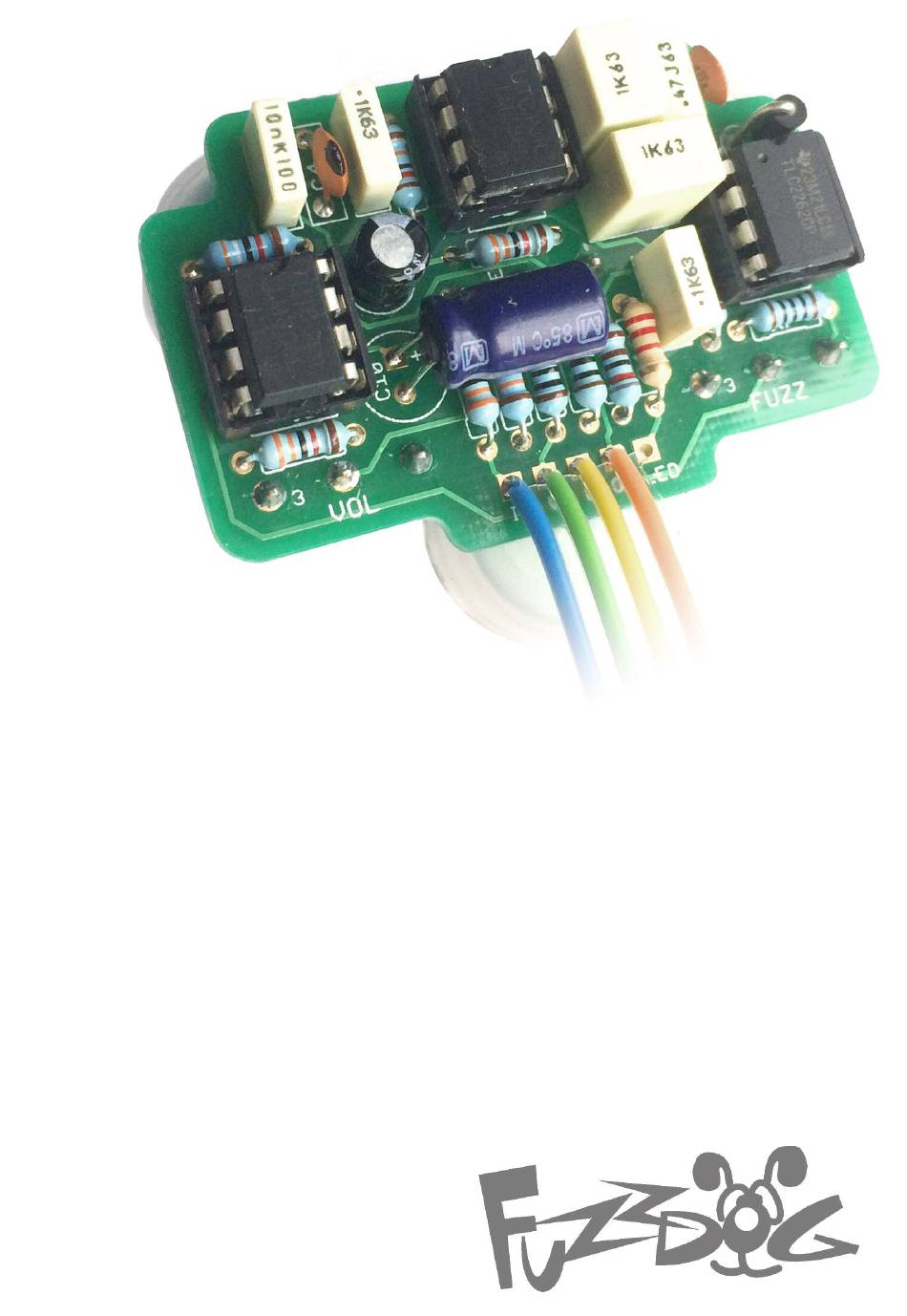

  • Page 1 Peachy Fuzz Frantastically heavy but smooth fuzz tones Contents of this document are ©2014 Pedal Parts Ltd. No reproduction permitted without the express written permission of Pedal Parts Ltd. All rights reserved.
  • Page 2 Schematic 100n TLC2262 100K 100p LM386N-1 560K* (567K) 100n LM386N-1 1N4001 8K2* (9K1) 470n 100R FUZZ 10KA 120K 10KB TONE 39K* (41K) 10u elec 100KB 100u elec 2K2 (CLR) *Resistor values marked have been substituted for the original values marked in blue, which may be awkward to get hold of.

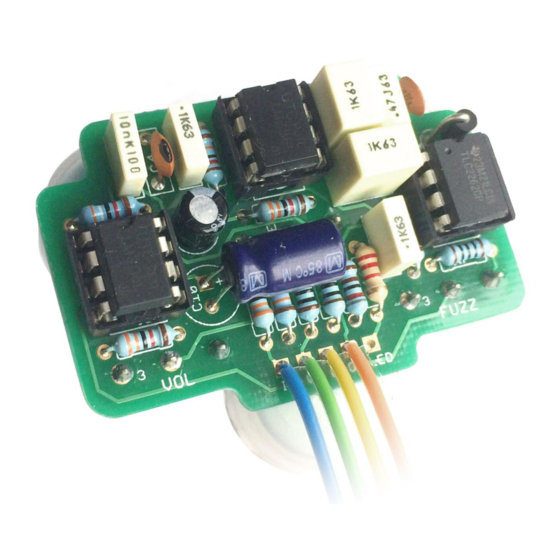

  • Page 3 PCB Layout PCB Layout ©2014 Pedal Parts Ltd. The power and signal pads on the PCB conform to the FuzzDog Direct Connection format, so can be paired with the appropriate daughterboard for quick and easy offboard wiring. Snap the small metal tag off the pots so they can be mounted flush in the box.
  • Page 4 Test the board! BATTERY 9V GND Your nice, new circuit board INCLUDING WIRED POTS!!!! UNDER NO CIRCUMSTANCES will troubleshooting help be offered if you have skipped this stage. No exceptions. Once you’ve finished the circuit it makes sense to test is before starting on the switch and LED wiring.
  • Page 5 Wire it up (if using a daughterboard please refer to the relevant document) BOARD BOARD INPUT BOARD BOARD BOARD BOARD LED+ BOARD BOARD BATTERY Wiring shown above will disconnect the battery when you remove the jack plug from the input, and also when a DC plug is inserted. The Board GND connections don’t all have to directly attach to the board.
