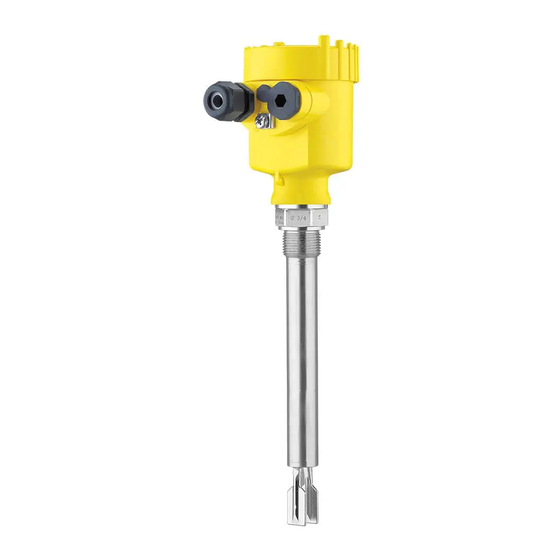

Vibrating level switch with tube extension for liquids
Hide thumbs Also See for VEGASWING 63:
Table of Contents

Advertisement

Quick Links

Download this manual
Operating Instructions
Vibrating level switch with tube
extension for liquids
VEGASWING 63
Contactless electronic switch
Document ID: 29228

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VEGASWING 63 and is the answer not in the manual?

Questions and answers

Related Manuals for Vega VEGASWING 63

Summary of Contents for Vega VEGASWING 63

  • Page 1 Operating Instructions Vibrating level switch with tube extension for liquids VEGASWING 63 Contactless electronic switch Document ID: 29228...

  • Page 2: Table Of Contents

    How to proceed if a repair is necessary ................26 Dismount..........................27 Dismounting steps......................27 Disposal ......................... 27 Supplement ..........................28 Technical data ........................ 28 Dimensions ........................35 Industrial property rights ....................38 Trademark ........................38 VEGASWING 63 • Contactless electronic switch...
  • Page 3 Contents Safety instructions for Ex areas Take note of the Ex specific safety instructions for Ex applications. These instructions are attached as documents to each instrument with Ex approval and are part of the operating instructions. Editing status: 2019-11-21 VEGASWING 63 • Contactless electronic switch...

  • Page 4: About This Document

    Symbols used Document ID This symbol on the front page of this instruction refers to the Docu- ment ID. By entering the Document ID on www.vega.com you will reach the document download. Information, tip, note This symbol indicates helpful additional information.

  • Page 5: For Your Safety

    During work on and with the device, the required personal protective equipment must always be worn. Appropriate use The VEGASWING 63 is a sensor for point level detection. You can find detailed information about the area of application in chapter "Product description". Operational reliability is ensured only if the instrument is properly used according to the specifications in the operating instructions manual as well as possible supplementary instructions.

  • Page 6: Safety Label On The Instrument

    That is why we have introduced an environment management system with the goal of continuously improving company environmental pro- tection. The environment management system is certified according to DIN EN ISO 14001. Please help us fulfil this obligation by observing the environmental instructions in this manual: • Chapter "Packaging, transport and storage" • Chapter "Disposal" VEGASWING 63 • Contactless electronic switch...

  • Page 7: Product Description

    – Safety Manual "Functional safety (SIL)" (optional) – Supplementary instructions manual "Plug connector for level sensors" (optional) – Ex-specific "Safety instructions" (with Ex versions) – If necessary, further certificates Constituent parts The VEGASWING 63 consists of the components: • Housing lid • Housing with electronics •...

  • Page 8: Principle Of Operation

    Principle of operation Application area VEGASWING 63 is a point level sensor with tuning fork for point level detection. It is designed for industrial use in all areas of process technology and can be used in liquids.

  • Page 9: Storage And Transport

    Screwed flanges are available in different versions according to the following standards: DIN 2501, EN 1092-1, BS 10, ASME B 16.5, JIS B 2210-1984, GOST 12821-80. Electronics module The electronics module SW E60 is a replacement part for level switch- es VEGASWING 63. VEGASWING 63 • Contactless electronic switch...
  • Page 10 For connecting the sensors with a separator to voltage supply or sig- nal processing, the sensors are also available with plug connectors. The following plug connectors are available: • M12 x 1 • ISO 4400 • Harting HAN 7D • Harting HAN 8D • Amphenol-Tuchel VEGASWING 63 • Contactless electronic switch...

  • Page 11: Mounting

    DIN/EN/IEC/ANSI/ISA/UL/CSA 61010-1. Switching point In general, VEGASWING 63 can be installed in any position. The instrument only has to be mounted in such a way that the tuning fork is at the height of the desired switching point.
  • Page 12 Switching point approx. 27 mm (1.06 in) Fig. 3: Horizontal mounting Switching point Marking with screwed version, facing up Fig. 4: Horizontal installation (recommended mounting position, particularly for adhesive products) Switching point Marking with screwed version, facing up In the case of flange versions, the fork is aligned as follows. VEGASWING 63 • Contactless electronic switch...
  • Page 13 "Technical data" meets the existing ambient conditions. Fig. 6: Measures against moisture ingress Caution: Transport Do not hold VEGASWING 63 on the tuning fork. Particularly with flange or tube versions, the tuning fork can be damaged just by the weight of the instrument. Transport coated instruments very carefully and avoid touching the tuning fork.

  • Page 14: Mounting Instructions

    Mounting instructions Welded socket VEGASWING 63 has a defined thread starting point. This means that every VEGASWING 63 is in the same fork position after being screwed in. Remove therefore the supplied seal from the thread of VEGASWING 63. This seal is not required when using a welded socket with O-ring in front.
  • Page 15 VEGASWING 63 at a position in the vessel where no disturbances, e.g. from filling openings, agitators, etc., can occur. This applies particularly to instrument types with long extension tube. Fig. 8: Inflowing medium Product flow To make sure the tuning fork of VEGASWING 63 generates as little resistance as possible to product flow, mount the sensor so that the surfaces are parallel to the product movement. VEGASWING 63 • Contactless electronic switch...
  • Page 16 4 Mounting Due to the effects of agitators, equipment vibration or similar, the level Agitators switch can be subjected to strong lateral forces. For this reason, do not use an overly long extension tube for VEGASWING 63, but check if you can mount a level switch on the side of the vessel in horizontal position. Extreme vibration caused by the process or the equipment, e.g.

  • Page 17: Connecting To Power Supply

    In hazardous areas, use only approved cable connections for VEGASWING 63. Take note of the corresponding installation regulations for Ex applica- Connection cable tions. for Ex applications Cover all housing openings conforming to standard according to EN 60079-1. VEGASWING 63 • Contactless electronic switch...

  • Page 18: Connection Procedure

    Plastic (not with Ex d) Aluminium Stainless steel (not with Ex d) Stainless steel, electropolished (not with Ex d) Filter element for pressure compensation or blind plug with version IP66/ IP68, 1 bar (not with Ex d) VEGASWING 63 • Contactless electronic switch...
  • Page 19 DIL switch for switching point adaptation Ground terminal Connection terminals Wiring plan We recommend connecting VEGASWING 63 in such a way that the switching circuit is open when there is a level signal, line break or failure (safe state). Information: The contactless electronic switch is always shown in non-operative condition.
  • Page 20 5 Connecting to power supply When VEGASWING 63 is used as part of an overfill protection system according to WHG, also note the regulations of the general type ap- proval. Fig. 12: Wiring plan, single chamber housing VEGASWING 63 • Contactless electronic switch...

  • Page 21: Setup

    DIL switch for adjustment of the density range (3) Note: Always immerse the tuning fork of VEGASWING 63 in a liquid to test its function. Do not test the function of VEGASWING 63 with your hand. This can damage the sensor.

  • Page 22: Function Table

    Switch closed Green Mode A Overflow protec- tion Switch open Mode B Dry run protection Switch closed Green Mode B Dry run protection Switch open Failure of the sup- ply voltage (mode A/B) Switch open VEGASWING 63 • Contactless electronic switch...
  • Page 23 6 Setup Level Switching status Control lamp Fault Switch open flashes red VEGASWING 63 • Contactless electronic switch...

  • Page 24: Maintenance And Fault Rectification

    24 hour service hotline Should these measures not be successful, please call in urgent cases the VEGA service hotline under the phone no. +49 1805 858550. The hotline is manned 7 days a week round-the-clock. Since we offer this service worldwide, the support is only available in the English language. The service is free, only standard call charges are incurred.

  • Page 25: Exchanging The Electronics

    You can find all the information you need to carry out an electronics exchange in the handbook of the new electronics module. In general, all electronics modules of series SW60 can be inter- changed. If you want to use an electronics module with a different signal output, you carry out the complete setup. You find the neces- sary, suitable operating instruction on our homepage. VEGASWING 63 • Contactless electronic switch...

  • Page 26: How To Proceed If A Repair Is Necessary

    Clean the instrument and pack it damage-proof • Attach the completed form and, if need be, also a safety data sheet outside on the packaging • Please contact the agency serving you to get the address for the return shipment. You can find the agency on our home page www.vega.com. VEGASWING 63 • Contactless electronic switch...

  • Page 27: Dismount

    Pass the instrument directly on to a specialised recycling company and do not use the municipal collecting points. If you have no way to dispose of the old instrument properly, please contact us concerning return and disposal. VEGASWING 63 • Contactless electronic switch...

  • Page 28: Supplement

    Ʋ The Second Line of Defense (SLOD) is a second level of the process separation in the form of a gas-tight feedthrough in the lower part of the housing, preventing product from penetrating into the housing. VEGASWING 63 • Contactless electronic switch...
  • Page 29 10 Nm (7.376 lbf ft) Ʋ Aluminium/Stainless steel housing max. 50 Nm (36.88 lbf ft) Gas-tight leadthrough (optional) Ʋ Leakage rate < 10 mbar l/s Ʋ Pressure resistance PN 64 Output variable Output Contactless electronic switch VEGASWING 63 • Contactless electronic switch...
  • Page 30 (482 °F) (122 °F) (212 °F) (302 °F) (392 °F) (32 °F) Fig. 14: Influence of the process temperature on the switching point Shifting of the switching point in mm (in) Process temperature in °C (°F) Switching point at reference conditions (notch) Tuning fork VEGASWING 63 • Contactless electronic switch...
  • Page 31 Shifting of the switching point in mm (in) Process pressure in bar (psig) Switching point at reference conditions (notch) Tuning fork Non-repeatability 0.1 mm (0.004 in) Hysteresis approx. 2 mm (0.08 in) with vertical installation Switching delay approx. 500 ms (on/off) Measuring frequency approx. 1200 Hz VEGASWING 63 • Contactless electronic switch...
  • Page 32 Ʋ VEGASWING 63 of 316L/Alloy C22 -50 … +250 °C (-58 … +482 °F) (2.4602) Ʋ VEGASWING 63 with ECTFE coating -50 … +150 °C (-58 … +302 °F) Ʋ VEGASWING 63 with PFA coating -50 … +250 °C (-58 … +482 °F) Ʋ...
  • Page 33 0.1 … 10000 mPa s (requirement: with density 1) Flow velocity max. 6 m/s (with a viscosity of 10000 mPa s) Density Ʋ Standard sensitivity 0.7 … 2.5 g/cm³ (0.025 … 0.09 lbs/in³) Ʋ High sensitivity 0.5 … 2.5 g/cm³ (0.018 … 0.09 lbs/in³) Vibration resistance Ʋ Instrument housing 1 g at 5 … 200 Hz according to EN 60068-2-6 (vibration with resonance) VEGASWING 63 • Contactless electronic switch...
  • Page 34 Pollution degree Protection rating (IEC 61010-1) Functional safety (SIL) Functional safety according to IEC 61508/IEC 61511 Ʋ Single channel architecture (1oo1D) up to SIL2 Ʋ Multiple channel architecture see supplementary instructions manual "Safety Manual (SIL)" VEGASWING 63 • Contactless electronic switch...

  • Page 35: Dimensions

    For that reason the associated approval documents of these instruments have to be carefully noted. They are part of the delivery or can be downloaded by entering the serial number of your instrument into the search field under www.vega.com as well as in the general download area. Dimensions...
  • Page 36 "NPT G1A, 1"NPT ø 21,3 mm (0.84") ø 33,7 mm (1.33") Fig. 21: VEGASWING 63 Thread Clamp Cone DN 25 Slotted nut DN 40 Flange Tuchenhagen Varivent = Sensor length, see chapter "Technical data" VEGASWING 63 • Contactless electronic switch...
  • Page 37 9 Supplement VEGASWING 63, options Fig. 22: Options Gas-tight leadthrough Temperature adapter VEGASWING 63 • Contactless electronic switch...

  • Page 38: Industrial Property Rights

    Les lignes de produits VEGA sont globalement protégées par des droits de propriété intellec- tuelle. Pour plus d'informations, on pourra se référer au site www.vega.com. VEGA lineas de productos están protegidas por los derechos en el campo de la propiedad indus- trial. Para mayor información revise la pagina web www.vega.com.
  • Page 39 Notes VEGASWING 63 • Contactless electronic switch...
  • Page 40 Subject to change without prior notice © VEGA Grieshaber KG, Schiltach/Germany 2019 VEGA Grieshaber KG Phone +49 7836 50-0 Am Hohenstein 113...
