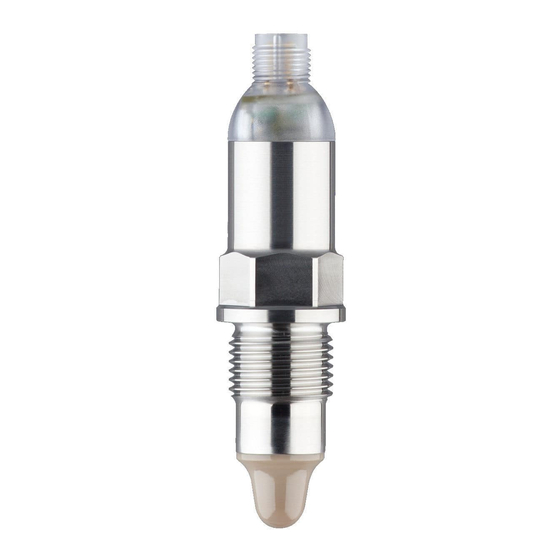

- Page 1 Operating Instructions Capacitive level switch VEGAPOINT 11 Transistor (PNP) Document ID: 56622...
-
Page 2: Table Of Contents
Conformity ........................21 Environment management system ................. 21 10 Supplement ..........................22 10.1 Technical data ........................ 22 10.2 Dimensions ........................24 10.3 Industrial property rights ....................26 10.4 Licensing information for open source software ............. 26 VEGAPOINT 11 • Transistor (PNP) - Page 3 Contents 10.5 Trademark ........................26 Editing status: 2022-09-27 VEGAPOINT 11 • Transistor (PNP)
-
Page 4: About This Document
Symbols used Document ID This symbol on the front page of this instruction refers to the Docu- ment ID. By entering the Document ID on www.vega.com you will reach the document download. Information, note, tip: This symbol indicates helpful additional infor- mation and tips for successful work. -
Page 5: For Your Safety
During work on and with the device, the required personal protective equipment must always be worn. Appropriate use The VEGAPOINT 11 is a sensor for point level detection. You can find detailed information about the area of application in chapter " Product description". Operational reliability is ensured only if the instrument is properly used according to the specifications in the operating instructions manual as well as possible supplementary instructions. - Page 6 National Electrical Code (ANSI/NFPA 70). Installations in Canada shall comply with the relevant requirements of the Canadian Electrical Code A Class 2 power supply unit has to be used for the installation in the USA and Canada. VEGAPOINT 11 • Transistor (PNP)
-
Page 7: Product Description
This operating instructions manual applies to the following instrument instructions versions: • Hardware version from 1.0.1 • Software version from 1.2.5 Constituent parts The VEGAPOINT 11 consists of the components: • Housing with integrated electronics • Process fitting • Plug Fig. 1: VEGAPOINT 11... -
Page 8: Principle Of Operation
Principle of operation Application area The VEGAPOINT 11 is a capacitive point level sensor for point level detection It is designed for industrial use in all areas of process technology and can be used in water-based liquids. -
Page 9: Adjustment
3 Product description to its simple and robust measuring system, VEGAPOINT 11 is virtual- ly unaffected by the chemical and physical properties of the medium. It functions even under difficult conditions such as turbulence, air bub- bles, buildup, strong external vibration or changing products. If a malfunction is detected or in case of voltage supply, the electron- ics takes on a defined switching status, i.e. the output is open (safe state). Functional principle An alternating electric field is generated at the tip of the measur- ing electrode. If the sensor is covered with medium, the resonance frequency changes. -
Page 10: Accessories
The instructions for the listed accessories can be found in the down- load area on our homepage. Threaded and hygienic Various threaded and hygienic sockets are available for devices with socket threaded version. You can find further information in chapter " Technical Data". VEGAPOINT 11 • Transistor (PNP) -
Page 11: Mounting
Chemical properties of the medium • Abrasion and mechanical influences Switching point The VEGAPOINT 11 can be mounted in any position. The instrument must be mounted in such a way that the sensor is at the height of the requested switching point. Fig. 3: Installation examples 1 Upper level detection (max.) as overflow protection... -
Page 12: Mounting Instructions
Fig. 4: Adhesive products In horizontal pipelines, avoid mounting in the upper or lower area of the pipe. In the upper part of the pipe cavities can form due to air inclusions. Solids can settle in the lower pipe area. Both can lead to measure- ment errors. In horizontal pipelines, lateral installation is therefore recommended. VEGAPOINT 11 • Transistor (PNP) - Page 13 A Not recommended - danger of air inclusions B Not recommended - Danger of buildup If VEGAPOINT 11 is mounted in the filling stream, unwanted false Inflowing medium measurement signals can be generated. For this reason, mount VE- GAPOINT 11 at a position in the vessel where no disturbances, e.g. from filling openings, agitators, etc., can occur. VEGAPOINT 11 • Transistor (PNP)
-
Page 14: Connecting To Power Supply
Make sure that the cable and the plug used have the required temperature resistance and fire safety for max. occurring ambient temperature. When mounting outdoors, on cooled vessels or in moist areas in which cleaning is made with steam or high pressure, it is very impor- tant that the plug is screwed on correctly. VEGAPOINT 11 • Transistor (PNP) -
Page 15: Connecting
5 Connecting to power supply Connecting Instrument versions Fig. 6: VEGAPOINT 11 - M12 x 1 plug A Device version with full metal housing 316L B Device version with housing 316L and plastic Plug connection 360° status indication Instrument housing... -
Page 16: Setup
Coverage Switching sta- Switching sta- Control lamp Output 1 Output 2 Covered open closed Green Uncovered closed open Yellow Covered/Uncov- open open ered 1) Default setting 2) Default setting 3) Default setting 4) Output 1 VEGAPOINT 11 • Transistor (PNP) -
Page 17: Diagnostics And Servicing
Should these measures not be successful, please call in urgent cases 24 hour service hotline the VEGA service hotline under the phone no. +49 1805 858550. The hotline is also available outside normal working hours, seven days a week around the clock. - Page 18 Reset device to delivery status Out of specification Red signal lamp flashes Error Cause Rectification S600 Electronics temperature too Error in the electronics high Allow device to cool down and restart If the error occurs again, check the ambient temperature VEGAPOINT 11 • Transistor (PNP)
-
Page 19: How To Proceed If A Repair Is Necessary
Clean the instrument and pack it damage-proof • Attach the completed form and, if need be, also a safety data sheet outside on the packaging • Ask the agency serving you to get the address for the return ship- ment. You can find the agency on our homepage. VEGAPOINT 11 • Transistor (PNP) -
Page 20: Dismount
If personal data is stored on the old device to be disposed of, delete it before disposal. If you have no way to dispose of the old instrument properly, please contact us concerning return and disposal. VEGAPOINT 11 • Transistor (PNP) -
Page 21: Certificates And Approvals
DIN EN ISO 14001. Help us to meet these requirements and observe the environmental instructions in the chapters " Packaging, transport and storage", " Disposal" of this operating instructions. VEGAPOINT 11 • Transistor (PNP) -
Page 22: Supplement
Ʋ Thread G1, 1 NPT 100 Nm (73 lbf ft) Ʋ Hygienic adapter 20 Nm (15 lbf ft) Surface quality < 0.76 µm (3.00 Measurement accuracy Hysteresis approx. 1 mm (0.04 in) 5) not in contact with the medium VEGAPOINT 11 • Transistor (PNP) - Page 23 Dielectric constant ≥ 2.0 Indication (NE 107) 360° status indication (LED) Ʋ Green Power supply on - Output 1 open Ʋ Yellow Power supply on - Output 1 closed Ʋ Red Voltage supply on - failure/simulation VEGAPOINT 11 • Transistor (PNP)
-
Page 24: Dimensions
ø 18 mm (0.71") Fig. 9: VEGAPOINT 11, standard version - thread Thread G½, G¾, G1 (DIN ISO 228/1) with M12 x 1 plug connection (Housing: 316L and plastic) Thread ½ NPT, ¾ NPT, 1 NPT with M12 x 1 plug connection (full metal housing: 316L) - Page 25 (1.18") (0.71") ø 50,5 mm (1.99") Fig. 10: VEGAPOINT 11, hygienic version - Thread Thread G½ for hygienic threaded adapter (DIN ISO 228/1) with M12 x 1 plug connection VEGAPOINT 11, hygienic version in threaded adapter, Clamp Keep in mind that the total length is extended by the plug connection. VEGAPOINT 11 • Transistor (PNP)
-
Page 26: Industrial Property Rights
Les lignes de produits VEGA sont globalement protégées par des droits de propriété intellec- tuelle. Pour plus d'informations, on pourra se référer au site www.vega.com. VEGA lineas de productos están protegidas por los derechos en el campo de la propiedad indus- trial. Para mayor información revise la pagina web www.vega.com. - Page 27 Notes VEGAPOINT 11 • Transistor (PNP)
- Page 28 Subject to change without prior notice © VEGA Grieshaber KG, Schiltach/Germany 2022 VEGA Grieshaber KG Am Hohenstein 113 Phone +49 7836 50-0 77761 Schiltach E-mail: info.de@vega.com...
