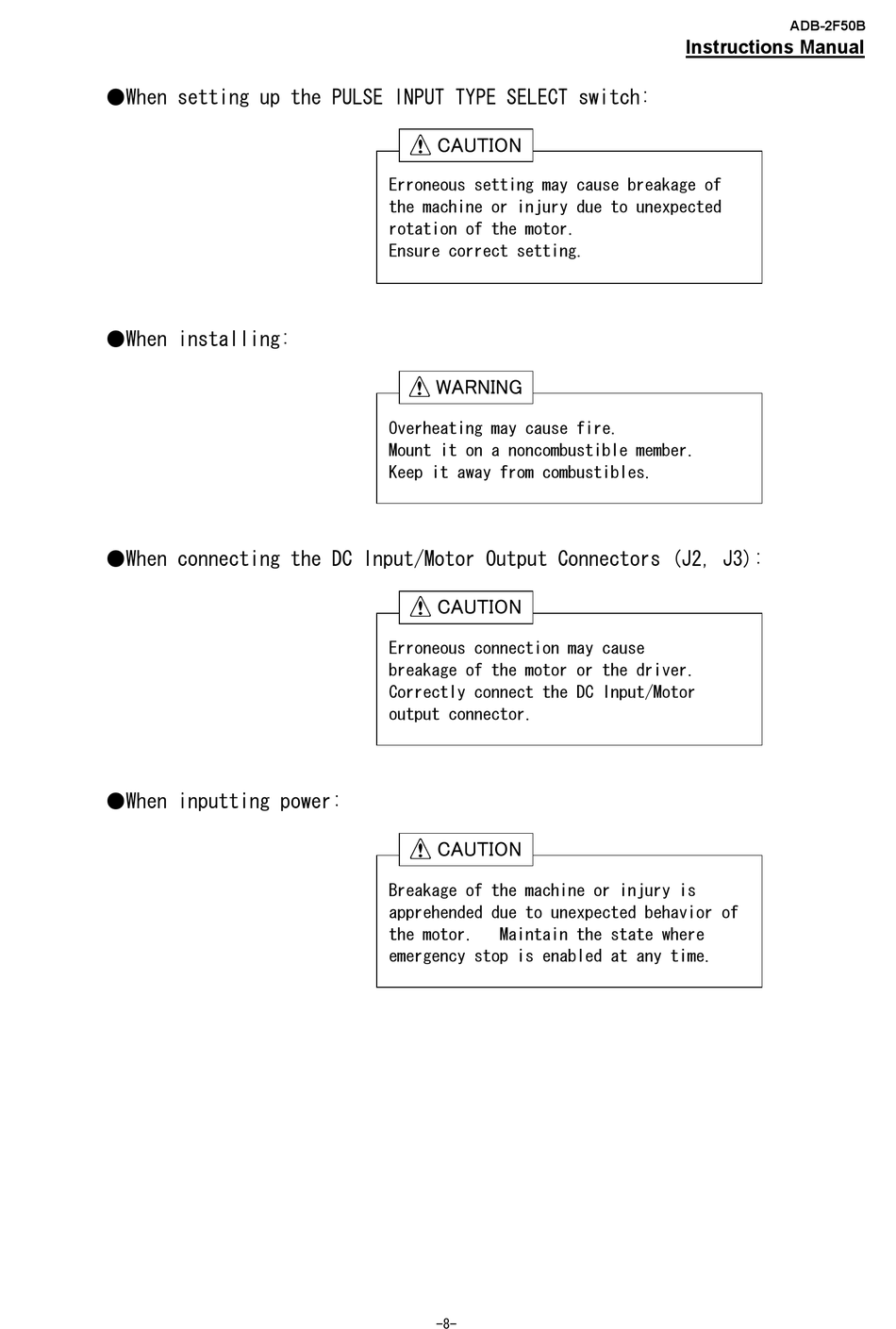

Melec ADB-2F50B Instruction Manual page 8

●When setting up the PULSE INPUT TYPE SELECT switch:
●When installing:
●When connecting the DC Input/Motor Output Connectors (J2, J3):
●When inputting power:

Erroneous setting may cause breakage of
the machine or injury due to unexpected
rotation of the motor.
Ensure correct setting.

Overheating may cause fire.
Mount it on a noncombustible member.
Keep it away from combustibles.

Erroneous connection may cause
breakage of the motor or the driver.
Correctly connect the DC Input/Motor
output connector.

Breakage of the machine or injury is
apprehended due to unexpected behavior of
the motor. Maintain the state where
emergency stop is enabled at any time.
-8-
ADB-2F50B
Instructions Manual
