6.

Installation and connection

Only install pumps under the operating parameters and conditions
described in Chapter 4, Technical data, and in Section 2.3, Using
the pump in a potentially explosive atmosphere.
Observe the safety precautions (see Chapter 3).
6.1. Installation
➔ Before installation, store the pump at the installation location to
bring it up to ambient temperature.
➔ Mounting dimensions (see Fig. 3)
NF1.100 Ex
NF1.100.27 Ex

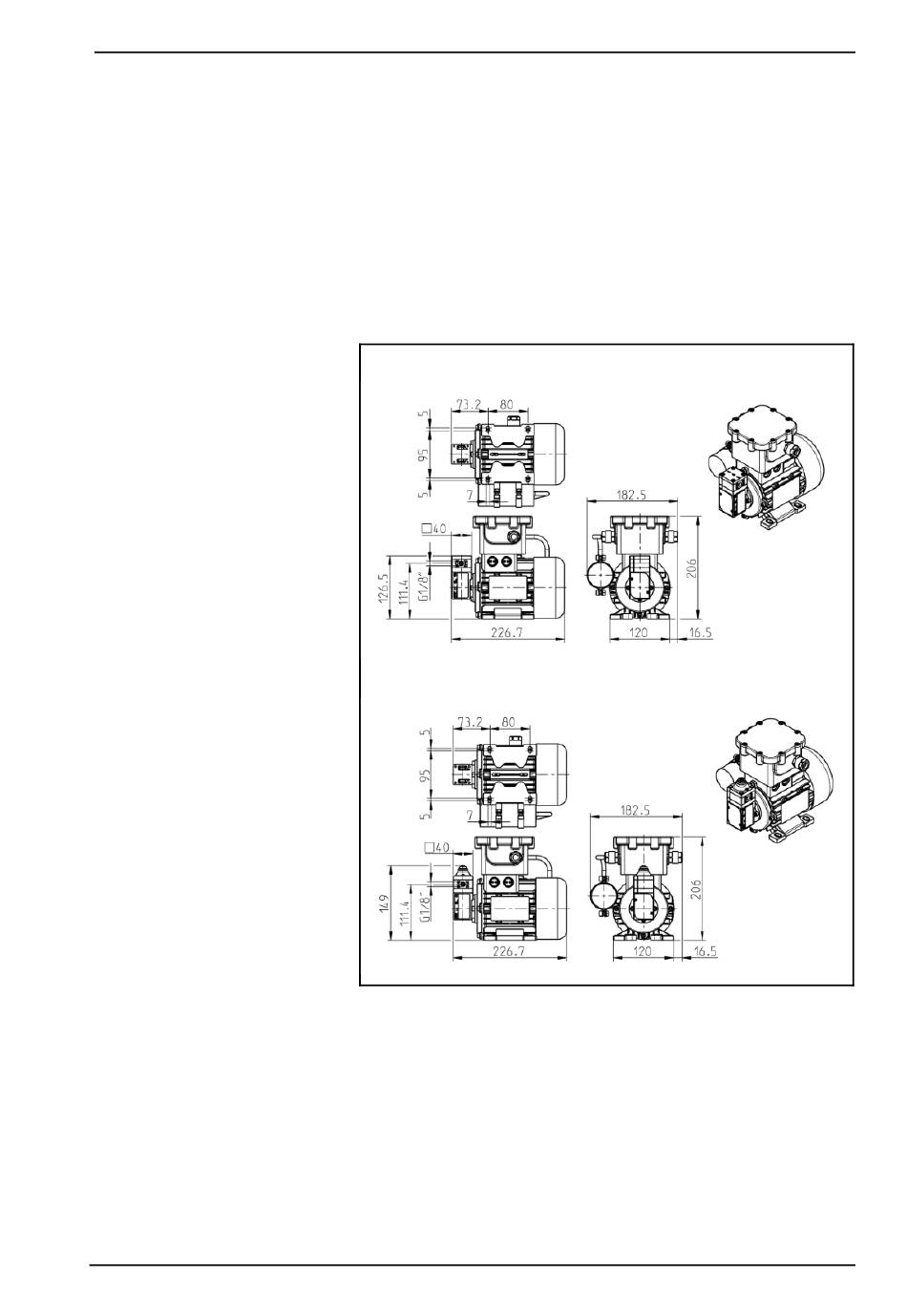

Fig. 3: Mounting dimensions NF1.100 Ex
➔ For pumps with fan: When installing the pump, make sure that
the motor's fan can draw in an adequate amount of cooling air.
➔ Make sure that the installation location is dry and the pump is
protected against water in the form of rain, spray, splashes and
drips.
➔ Protect the pump against dust.
➔ Protect the pump against vibration and impact.
