Diaphragm liquid pump NF 1.100 EX
KNF Flodos AG BA_NF1.100EX_EN_05_152147
English translation of original Operating and Installation Instructions
Connecting the pump
Connect individual conductors of the motor supply cable to the
terminal bar. Tighten the clamping (pressure) screw of the
screwed cable gland to a torque of 2.5 Nm.
Carefully inspect the marked earthing screw with non-rotating
clamp inside the motor terminal box.
Connect earthing equipment conductor to earthing screw as
shown in Fig. 5.

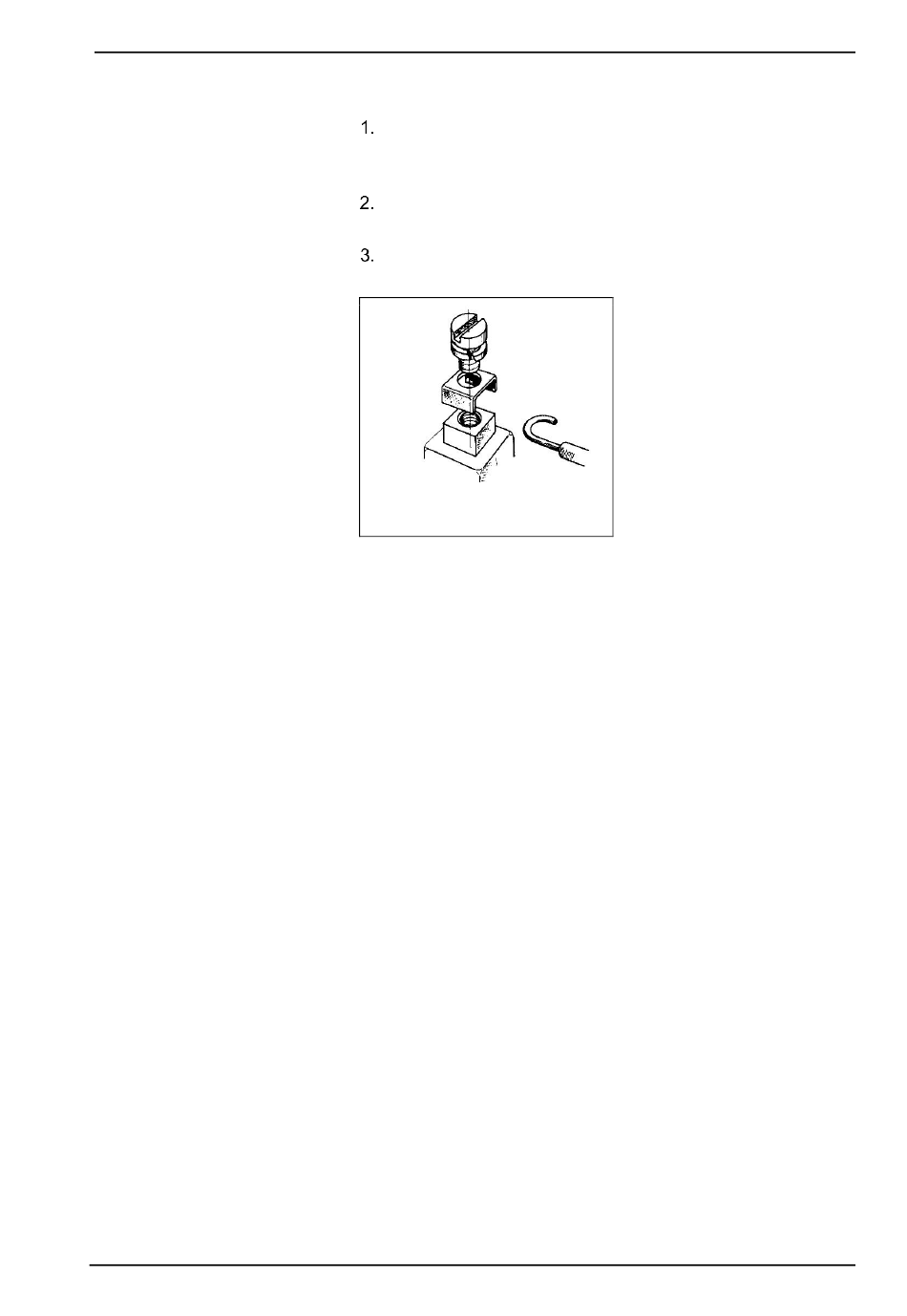

Fig. 5: Connecting the earthing
equipment conductor
Installation and connection
16
