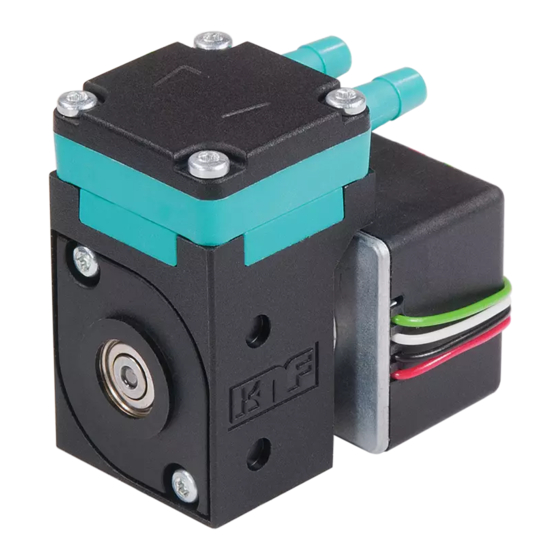

KNF NF 25 Series Operating And Installation Instructions

Diaphragm liquid pump

Hide thumbs

Table of Contents

Quick Links

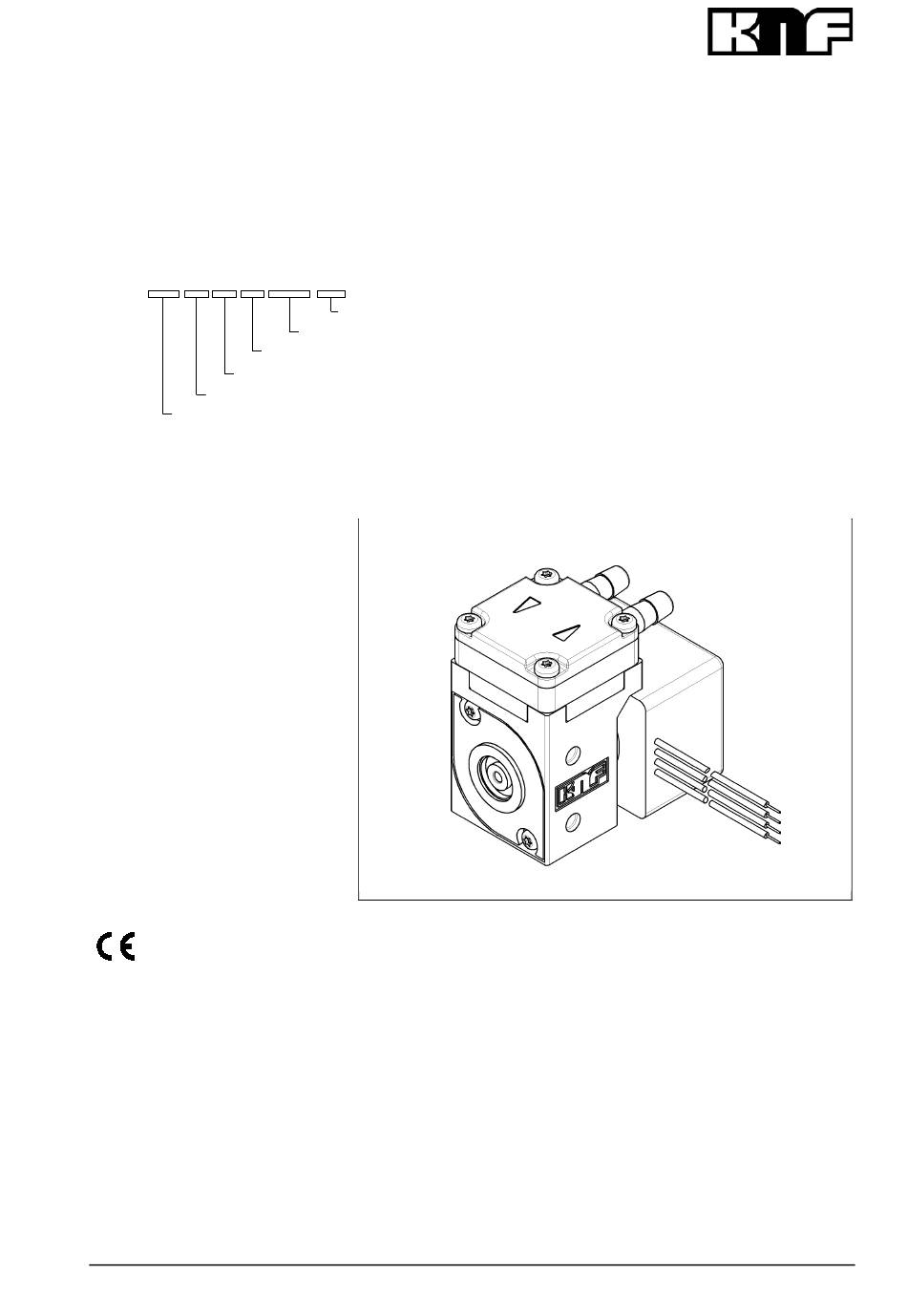

DIAPHRAGM LIQUID PUMP

NF 25, NFB 25

NF 25 KP DC-M 12V

NF / NFB

- / PMLxxxx / PLxxxx [Ch. 1]

Operating and

Installation

Instructions

Read and observe these

Operating and Installation

Instructions!

An additional letter prefixing

the NF model code is a

country-specific designation,

with no technical relevance.

KNF Flodos AG

Wassermatte 2

6210 Sursee, Switzerland

Tel +41 (0)41 925 00 25

Fax +41 (0)41 925 00 35

www.knf-flodos.ch

info@knf-flodos.ch

KNF Flodos AG BA_NF25_NFB25_EN_07_159615

Translated from the Original Operating and Installation Instructions

Supply voltage [Ch. 4]

DC-M / DCB / DCB-4 / DCB-B / DCB-4B

KP / KT / TT [Ch. 4]

Contents

1. About this document ................................................................. 2

2. Use ........................................................................................... 3

3. Safety ....................................................................................... 4

4. Technical data .......................................................................... 6

5. Assembly and function ............................................................. 9

6. Installation and connection ..................................................... 10

7. Operation ................................................................................ 15

8. Servicing ................................................................................. 19

9. Troubleshooting ...................................................................... 22

10. Accessories ............................................................................ 24

11. Decontamination declaration .................................................. 25

Page

Keep for future reference!

Table of Contents

Need help?

Do you have a question about the NF 25 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for KNF NF 25 Series

Page 1: Table Of Contents
Fax +41 (0)41 925 00 35 7. Operation ................15 www.knf-flodos.ch 8. Servicing ................. 19 info@knf-flodos.ch 9. Troubleshooting ..............22 10. Accessories ................24 11. Decontamination declaration ..........25 KNF Flodos AG BA_NF25_NFB25_EN_07_159615 Keep for future reference! Translated from the Original Operating and Installation Instructions...
Page 2: About This Document
Other information and symbols  This indicates a required activity (step). 1. This indicates the first step of a required activity. Additional consecutively numbered steps follow. This symbol indicates important information. KNF Flodos AG BA_NF25_NFB25_EN_07_159615 Translated from the Original Operating and Installation Instructions...
Page 3: Use
The pumps must not be operated in an explosive atmosphere. DANGER Please contact your local KNF partner for special designs that are not included in the technical specification (www.knf.com). KNF Flodos AG BA_NF25_NFB25_EN_07_159615 Translated from the Original Operating and Installation Instructions...
Page 4: Safety
The packaging materials are recyclable. Dispose of end-of-life equipment in an environmentally friendly manner. Use appropriate waste collection systems for the disposal of end-of-life equipment. Used pumps contain valuable recyclable materials. KNF Flodos AG BA_NF25_NFB25_EN_07_159615 Translated from the Original Operating and Installation Instructions...
Page 5 IEC/EN 61000-6-2  IEC/EN 61000-6-3 Customer service and repairs All repairs to the pump(s) must be carried out by the relevant KNF customer service team. Only use genuine parts from KNF for servicing work. KNF Flodos AG BA_NF25_NFB25_EN_07_159615 Translated from the Original Operating and Installation Instructions...
Page 6: Technical Data
Permissible pressure [bar g] Suction head [mWG] Tab. 5 Measured with water and using KNF standardised test equipement at atmospheric pressure, KP pump head material Flow rates may vary from the values shown, depending on fluid viscosi- ty, ambient temperature, pump head material and the hoses / hose con- nectors used.
Page 7 However, a PWM signal (frequency 1-20kHz) can be used to control the control voltage. Electrostatic sensitive components (ESD) 1) The weight may differ slightly from the stated value, depending on the version KNF Flodos AG BA_NF25_NFB25_EN_07_159615 Translated from the Original Operating and Installation Instructions...
Page 8 Permissible ambient temperature range [C] + 5 to + 40 Permissible media temperature [C] + 5 to + 80 ≤ 150 Permissible kinematic viscosity of medium [cSt] Tab. 10 KNF Flodos AG BA_NF25_NFB25_EN_07_159615 Translated from the Original Operating and Installation Instructions...
Page 9: Assembly And Function
NFB 25 Version (double-headed pump, see Fig. 3) Fig. 3 : NFB 25 This pump type has two NF25 pump heads that can be operated (double-headed pump) individually or in parallel connection (see Chapter 0). KNF Flodos AG BA_NF25_NFB25_EN_07_159615 Translated from the Original Operating and Installation Instructions...
Page 10: Installation And Connection
 Mounting dimensions (see Fig. 4 to 6) Mounting dimensions Fig. 4: Mounting dimensions NF 25 DC-M Fig. 5: Mounting dimensions NF 25 DCB KNF Flodos AG BA_NF25_NFB25_EN_07_159615 Translated from the Original Operating and Installation Instructions...
Page 11 Installation location protected against water in the form of rain, spray, splashes and drips.  Protect the pump against dust.  Protect the pump against vibration and impact. KNF Flodos AG BA_NF25_NFB25_EN_07_159615 Translated from the Original Operating and Installation Instructions...
Page 12  Generally speaking, the pump can be installed in any position. For maximum accuracy and rapid venting of one-headed pumps, please install as shown in the illustration (Fig. 7). Fig. 9: Optimum installation position for one-headed pumps: horizontal KNF Flodos AG BA_NF25_NFB25_EN_07_159615 Translated from the Original Operating and Installation Instructions...
Page 13 Check that the hoses and transition joints (hose connect- or/hose) are fitted correctly and securely. Check that the system is leak-tight. KNF Flodos AG BA_NF25_NFB25_EN_07_159615 Translated from the Original Operating and Installation Instructions...
Page 14  Cause as little narrowing as possible with connection ele- ments. Recommendation: Min. inside diameter 3mm. Fig. 10: Hose connection options Please contact your local KNF partner for further information Please contact your local KNF partner for further information for NFB versions (www.knf.com).
Page 15: Operation
Excessive pressure and the inherent dangers thereof can be prevented by placing a bypass line with a pressure relief valve between the pressure and suction side of the pump. Please contact your local KNF partner for further information (www.knf.com). Risk of burns when transferring hot media ...
Page 16  In order to ensure that the pump starts every time, make sure that counterpressure is reduced to an acceptable level before start-up. This should also be done during operation after a brief power cut. Please contact your local KNF partner for further in- formation (www.knf.com). Switching off the pump ...
Page 17 0.30 0 mWg 10 mWg 0.25 0.20 0.15 0.10 0.05 0.00 Control voltage Vctrl [V] Fig. 15: Flow rate of pump NF 25 DCB-4 depending on control voltage KNF Flodos AG BA_NF25_NFB25_EN_07_159615 Translated from the Original Operating and Installation Instructions...
Page 18 Fig. 16: Flow rate of pump NFB 25 DCB-B and NFB 25 DCB-4B (per pump head) Fig. 17: Flow rate of pump NFB 25 DCB-4B depending on control voltage (per pump head) KNF Flodos AG BA_NF25_NFB25_EN_07_159615 Translated from the Original Operating and Installation Instructions...
Page 19: Servicing
With NFB pumps the necessary steps are repeated for the second pump head. 8.2.1. Flushing the pump  If transferring aggressive media, KNF recommends flushing the pump with a neutral fluid under atmospheric conditions for a few minutes before switching off, to extend the service life of valves and diaphragm.
Page 20 (see directional arrow on the head plate (2)) is the same as before. Alternately tighten the four head screws (1). Reconnect the hoses to the pump head. KNF Flodos AG BA_NF25_NFB25_EN_07_159615 Translated from the Original Operating and Installation Instructions...
Page 21 CAUTION  Run pump for several minutes with a harmless liquid at maximum operating pressure.  Check that pump is leak-tight. KNF Flodos AG BA_NF25_NFB25_EN_07_159615 Translated from the Original Operating and Installation Instructions...
Page 22: Troubleshooting
 Remove pressure and suction lines and reconnect correctly Incorrect interchange of pres- sure and suction line connec- tions Tab. 14 KNF Flodos AG BA_NF25_NFB25_EN_07_159615 Translated from the Original Operating and Installation Instructions...
Page 23 Fault cannot be rectified If you are unable to identify any of the above causes, please send the pump to KNF customer service (see address on last page). Flush the pump to clear the pump head of any hazardous or aggressive liquids (see Chapter 8.2.1).
Page 24: Accessories
FS 25 X PEEK 35 µm 250 ml/ min 165213 ID 3.2 / 4 mm Tab. 16 Please contact your local KNF partner for further information (www.knf.com). KNF Flodos AG BA_NF25_NFB25_EN_07_159615 Translated from the Original Operating and Installation Instructions...
Page 25: Decontamination Declaration
Diaphragm liquid pump NF 25, NFB 25 Decontamination declaration 11. Decontamination declaration KNF shall only undertake to repair the pump on condition that the customer provides certification of the transferred media and the cleaning of the pump (decontamination declaration).  In order to send a product back use the decontamination declaration, which either was delivered with the product or is available on www.knf.com (Downloads).
Page 26 Diaphragm liquid pump NF 25, NFB 25 For your notes KNF Flodos AG BA_NF25_NFB25_EN_07_159615 Translated from the Original Operating and Installation Instructions...
Page 27 KNF worldwide Please find your local KNF partners at: www.knf.com...

This manual is also suitable for:

Nfb 25 series Nfb 25 dcb-b Nf 25 dc-m Nfb 25 dcb-4b Nf 25 dcb Nf 25 dcb-4
