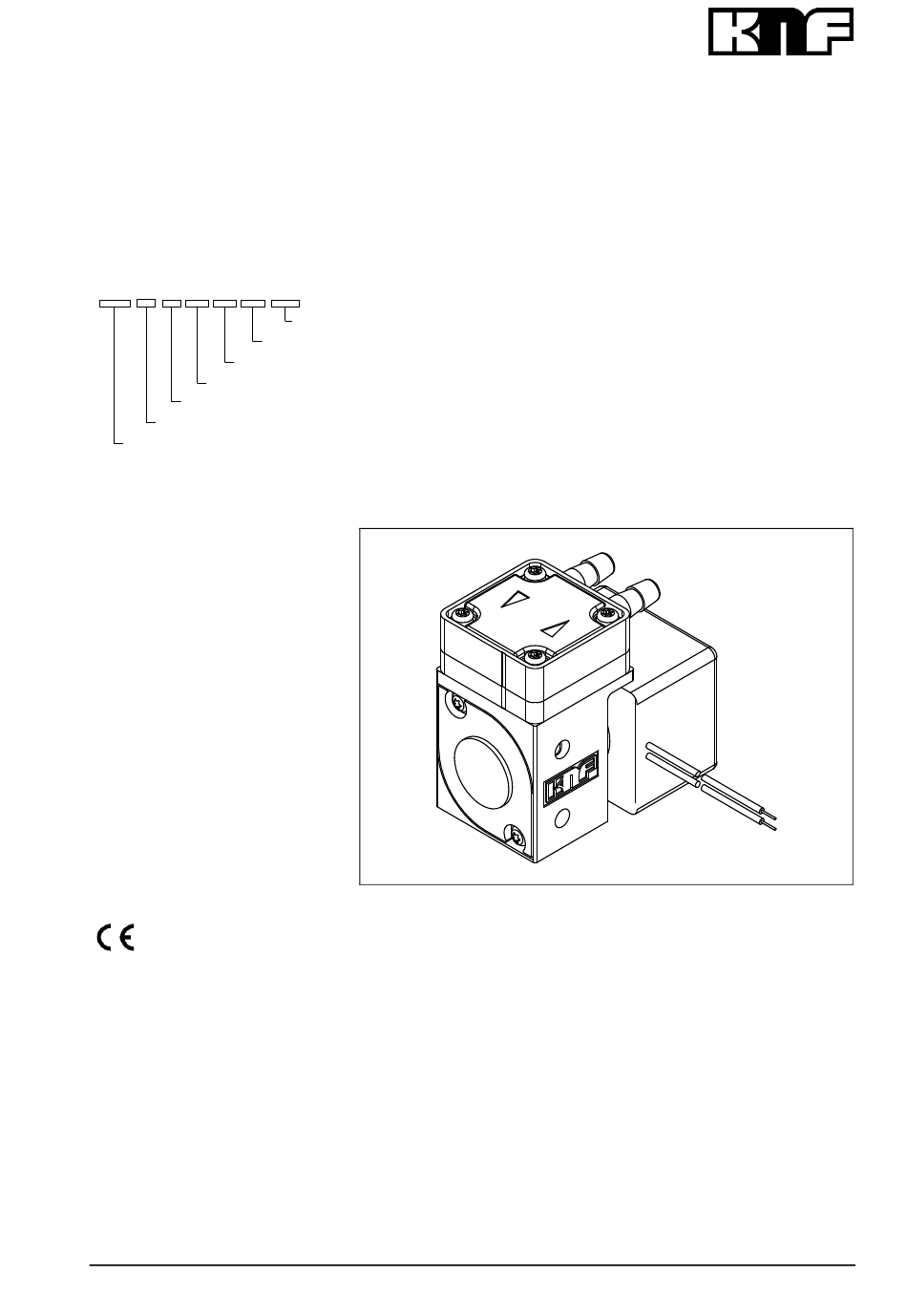

DIAPHRAGM LIQUID PUMP
NF 10
NF 10 KP .51 DC 12V
.51 / - [Section. 2]
KP / KT / KV / TT / TV [Section. 4]
10
NF / JNF
- / PMLxxxx / PLxxxx [Section. 1)
Operating
Instructions
Read and observe these oper-
ating instructions!
An additional letter before the
NF model code is a country-
specific designation, with no
technical relevance
KNF Flodos AG
Wassermatte 2
6210 Sursee, Schweiz
Tel +41 (0)41 925 00 25
Fax +41 (0)41 925 00 35
www.knf-flodos.ch
info@knf-flodos.ch
KNF Flodos BA_NF10_EN_05_069219
Operating and Installation Manual
Supply voltage [Section 4]
DC / DCB / E
Contents
1. About this document ................................................................. 2
2. Use ........................................................................................... 3
3. Safety ....................................................................................... 5
4. Technical Data.......................................................................... 7
5. Assembly and function ........................................................... 10
6. Installation and connection ..................................................... 11
7. Operation ................................................................................ 15
8. Servicing ................................................................................. 18
9. Troubleshooting ...................................................................... 20
10. Spare parts ............................................................................. 22
11. Decontamination declaration .................................................. 23
page
keep for future reference!
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for KNF NF 10 DC series
Summary of Contents for KNF NF 10 DC series
-
Page 1: Table Of Contents
Contents page 1. About this document ..............2 2. Use ................... 3 KNF Flodos AG 3. Safety ..................5 Wassermatte 2 4. Technical Data................7 6210 Sursee, Schweiz 5. Assembly and function ............10 Tel +41 (0)41 925 00 25 6. -
Page 2: About This Document
An activity to be carried out (a step) is specified here. 1. The first step of an activity to be carried out is specified here. Additional, consecutively numbered steps follow. This symbol refers to important information. KNF Flodos AG BA_NF10_EN_05_069219 Operating and Installation Manual... -
Page 3: Use
To see the operating conditions see 4.2 NSF: National Sanitary Foundation FDA: Food and Drug Administration ANSI: American National Standard Institute *on request it is possible to deliver pumps with customer specific material combinations. KNF Flodos AG BA_NF10_EN_05_069219 Operating and Installation Manual... - Page 4 All wetted parts can be replaced as spare parts without losing the certification. Component parts can not be traded as certi- fied parts. Only original parts / assemblies from KNF may be used. 2.2. Improper use The pumps may not be operated in an explosive atmosphere.
-
Page 5: Safety
Ensure that the pump is disposed of in an environmentally appropriate manner at the end of its useful life. Use appropri- ate waste collection systems for the disposal of end-of-life equipment. Used pumps contain valuable recyclable materials. KNF Flodos AG BA_NF10_EN_05_069219 Operating and Installation Manual... - Page 6 EN 61000-6-3 (incl.: EN 55022 / EN 55011) NF 10 E ▪ EN 55014-1 Customer service and Only have repairs to the pumps carried out by the KNF Customer repairs Service responsible. KNF Flodos AG BA_NF10_EN_05_069219 Operating and Installation Manual...
-
Page 7: Technical Data
The pump type TV stands for: Head component Material Pump head * PVDF Valves / seals Diaphragm Resonating diaphragm Tab. 6 according DIN ISO 1629 and 1043.1 * Pump head (Fig.1): contains connection plate and intermediate plate KNF Flodos AG BA_NF10_EN_05_069219 Operating and Installation Manual... - Page 8 0.45 0.45 10…28 10…28 Power supply range [V] Lead size [-] AWG28 Protection class [-] IP40 Weight Tab. 10 The weight can differ slightly from the stated value depending on the version KNF Flodos AG BA_NF10_EN_05_069219 Operating and Installation Manual...
- Page 9 Various parameters Parameter Value Ambient temperature range (°C) + 5 to + 40 Media temperature range (°C) + 5 to + 80 ≤ 150 Allowed kinematic viscosity of the media [cSt] Tab. 13 KNF Flodos AG BA_NF10_EN_05_069219 Operating and Installation Manual...
-
Page 10: Assembly And Function
(2). During the up stroke, it forces medium out of the pump head through the exhaust valve (1). The diaphragm hermetically seals off the working chamber (3) from the pump drive (7). KNF Flodos AG BA_NF10_EN_05_069219 Operating and Installation Manual... -
Page 11: Installation And Connection
Before installation, store the pump at the installation location to bring it up to ambient temperature. Mounting dimensions (see Fig. 3 to 7) Mounting dimensions Fig. 3: Mounting dimensions NF 10 DC Fig. 4: Mounting dimensions NF 10 DCB KNF Flodos AG BA_NF10_EN_05_069219 Operating and Installation Manual... - Page 12 Diaphragm–Liquid pump NF 10 Installation and connection Fig. 5: Mounting dimensions NF 10 E KNF Flodos AG BA_NF10_EN_05_069219 Operating and Installation Manual...
- Page 13 Pump should only be connected by a specialist. Only connect the pump when the power supply is turned off.. For the electrical connection ensure that the relevant guide- lines, regulations and technical standards are fulfilled. KNF Flodos AG BA_NF10_EN_05_069219 Operating and Installation Manual...
- Page 14 4. Check tubes and hose barbs for leak tightness. 5. Check that the system is leak tight. KNF Flodos AG BA_NF10_EN_05_069219 Operating and Installation Manual...
-
Page 15: Operation
For further information please contact a KNF specialist (Telephone number: see front page). If the pump stops running release the pressure in the system to Pump standstill that atmospheric conditions are created. - Page 16 Short start and stop cycles can change the lifetime of the brushed motors. If the pump is operated with short cycles in your application please contact a KNF pump specialist for further information (Telephone number: see front page). Turning the pump on ...
- Page 17 0.30 NF 11-DC NF 10-E 0.25 NF 10-DCB 0.20 0.15 0.10 0.05 Suction Head [mWg] Pressure Head [mWg] Fig. 8: Flow rate of the pumps NF 10 E and NF 10 DCB KNF Flodos AG BA_NF10_EN_05_069219 Operating and Installation Manual...
-
Page 18: Servicing
Rinse the pump with a neutral liquid and pump empty. 8.2.1. Flushing the pump When pumping aggressive media, KNF recommends flushing the pump with a neutral fluid under atmospheric conditions for a few minutes before switching off, to extend the service life of valves and diaphragm. - Page 19 The same procedure is to followed as in section 8.2 cleaning. But instead of just cleaning the diaphragm (7), resonating diaphragm (3) and valves (5) these must be replaced with new parts. KNF Flodos AG BA_NF10_EN_05_069219 Operating and Installation Manual...
-
Page 20: Troubleshooting
Pump head materials are not resistant to the liquids being pumped. Check the arrows on the pump head indicating flow Inlet and outlet tubes have been wrongly connected. direction Tab. 17 KNF Flodos AG BA_NF10_EN_05_069219 Operating and Installation Manual... - Page 21 Fault cannot be rectified If you are unable to identify any of the above causes, please send the pump to KNF customer services (See address on last page). Flush the pump to clear the pump head of any hazardous or aggressive fluids (see section 8.2.1).
-
Page 22: Spare Parts
10. Spare parts Spare part Order No. Spares-Kit Assembly sheet 151356 Spare part NF 10 JNF 10_V 151366 Spare part NF 10 JNF 10_P 151367 Spare part NF 10 JNF 10_T 151368 Tab. 19 KNF Flodos AG BA_NF10_EN_05_069219 Operating and Installation Manual... -
Page 23: Decontamination Declaration
Diaphragm–Liquid pump NF 10 Decontamination declaration 11. Decontamination declaration The condition for the repair of a pump by KNF is the certifica- tion of the customer on the transferred media and on the cleaning of the pump (decontamination declaration). In order to send a product back use the decontamination declaration, which either was delivered with the product or is available on www.knf.com (Downloads). - Page 24 KNF worldwide Please find your local KNF partners at: www.knf.com...
