Installation position
Contact and foreign-object
protections
KNF Flodos AG BA_NF1.100EX_EN_05_152147
English translation of original Operating and Installation Instructions
➔ Generally speaking, the pump can be mounted in any orienta-
tion. For maximum precision and rapid venting, install pump as
shown in the illustration (Fig. 4).
Decoupling

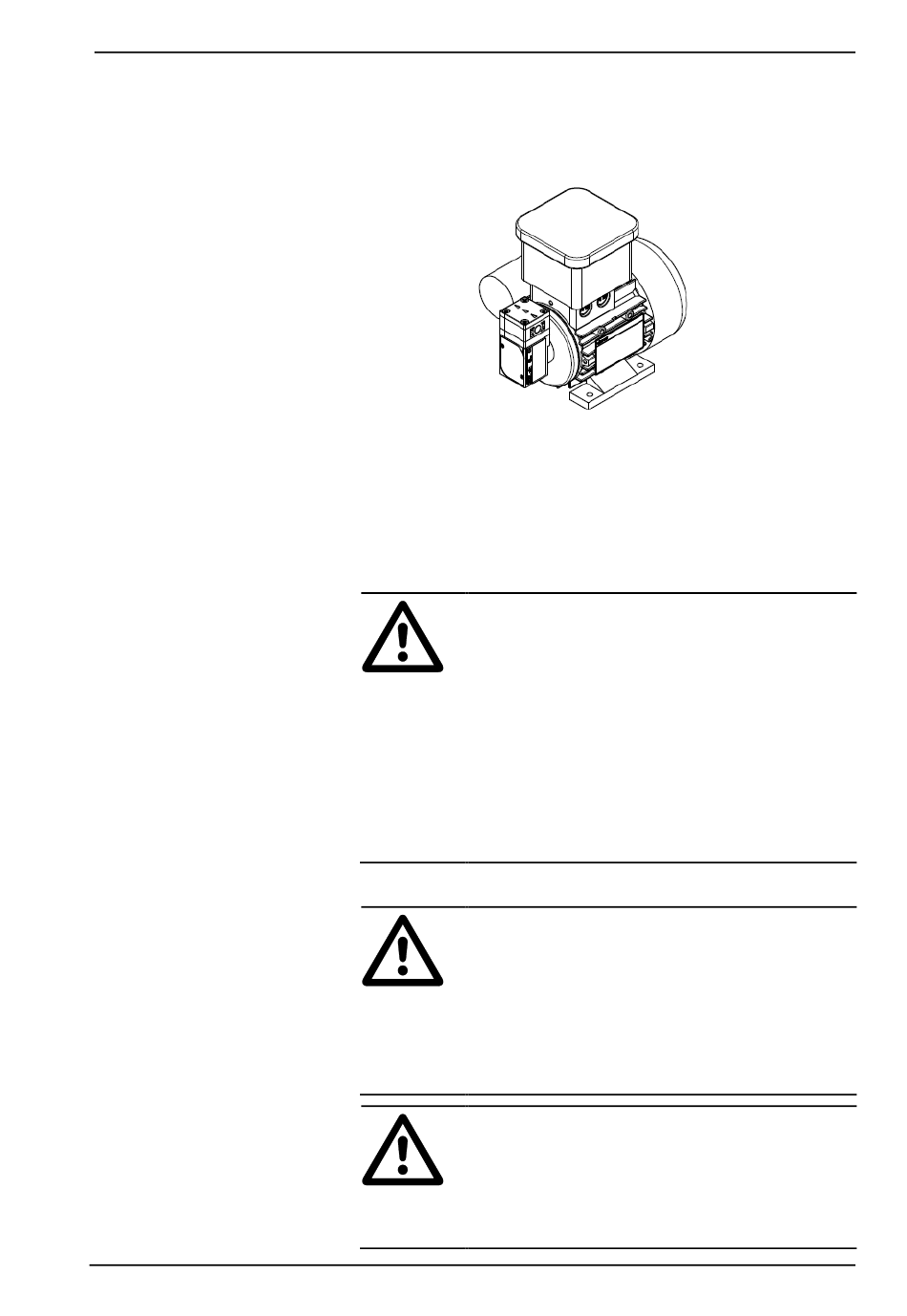

Fig. 4: optimum installation position / horizontal
➔ KNF recommends mechanically decoupling the pump from the
piping system. This can be achieved with flexible hoses or
pipes, for example. This prevents any oscillations of the pump
being transferred to the system.
WARNING
6.2. Electrical connection
WARNING
DANGER
Danger of injury during operation
➔ Take protective measures against touching parts
which are energised (live), such as electrical
connections or windings.
➔ Take protective measures against touching
moving parts (e.g. fan).
Danger of damaging the pump during operation
➔ Take protective measures to ensure that no
foreign objects can get into the pump (see pro-
tection class).
Danger of explosion as a result of incorrect electrical
connection
May cause severe injuries or death
➔ Only connect pump/motor if it is safe to operate
them in the explosive atmosphere concerned.
➔ Observe the Operating and Installation Instruc-
tions and the following requirements.
Danger of electric shock, danger of death
➔ Only have the pump connected by an authorized
specialist.
➔ Only have the pump connected when the power
supply is disconnected.
Installation and connection
