Example for Report Configuration:
Fport：0x07
Description
ConfigReportReq
ConfigReportRsp
R718VB
ReadConfigReportReq
ReadConfigReportRsp
(1) Configure the device report parameters MinTime = 1min, MaxTime = 1min, BatteryChange = 0.1v
Downlink: 019F003C003C0100000000
The device returns:
819F000000000000000000 (The configuration succeeded)
819F010000000000000000 (The configuration failed)
(2) Read the device configuration parameters
Downlink: 029F000000000000000000
The device returns:
829F003C003C0100000000 (current configuration parameters)

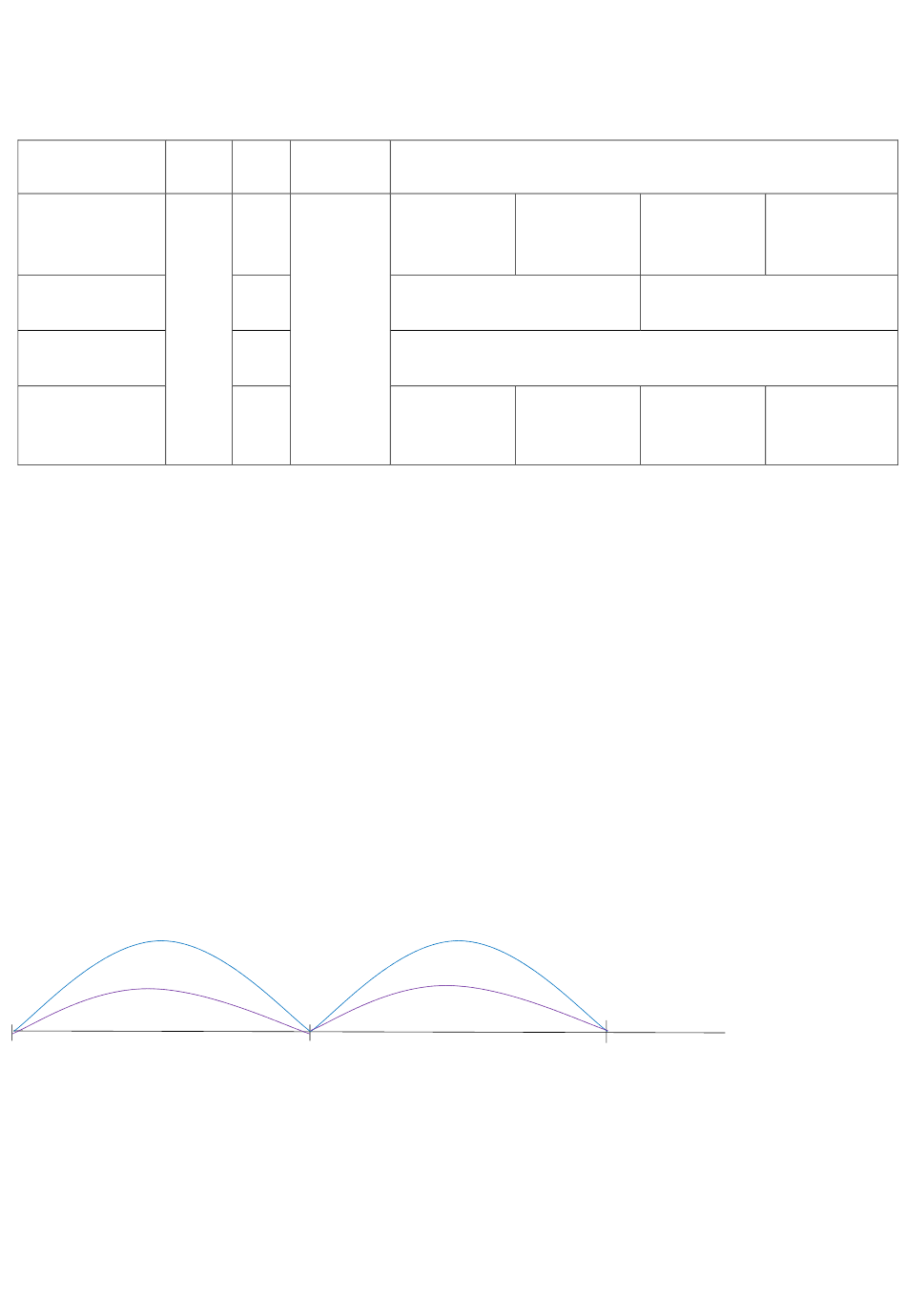

Example for MinTime/MaxTime logic:
Example#1 based on MinTime = 1 Hour, MaxTime= 1 Hour, Reportable Change i.e. BatteryVoltageChange=0.1V
MaxTime
Sleeping(MinTime)
Wakes up and collects data
REPORTS 3.6V
Note: MaxTime=MinTime. Data will only be report according to MaxTime (MinTime) duration regardless BatteryVoltageChange value.
Device CmdID DeviceType
0x01
0x81
0x9F
0x02
0x82
Wakes up and collects data
REPORTS 3.6V
MinTime MaxTime
(2bytes Unit:s) (2bytes Unit:s)
Status
(0x00_success)
MinTime MaxTime
(2bytes Unit:s) (2bytes Unit:s)
MaxTime
Sleeping(MinTime)
Wake up and collects data
REPORTS 3.6V
6
NetvoxPayLoadData
BatteryChange
(1byte Unit:0.1v)
Reserved
(8Bytes,Fixed 0x00)
Reserved
(9Bytes,Fixed 0x00)
BatteryChange
(1byte Unit:0.1v)
Reserved
(4Bytes,Fixed 0x00)
Reserved
(4Bytes,Fixed 0x00)
