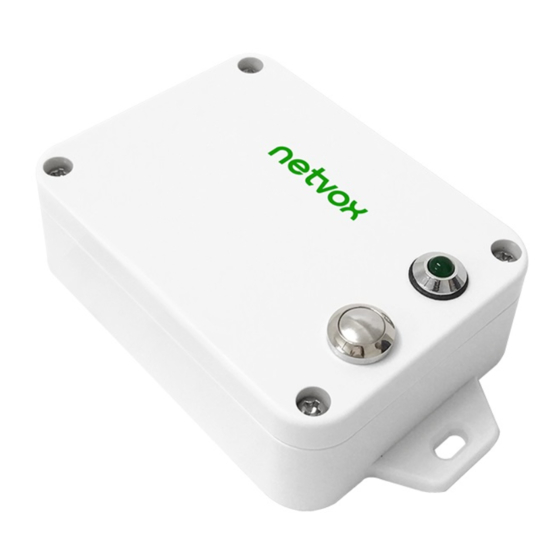

Model: R718EB
Wireless Tilt Angle Sensor
Wireless Tilt Angle Sensor
R718EB
User Manual
Copyright©Netvox Technology Co., Ltd.
This document contains proprietary technical information which is the property of NETVOX Technology. It shall be maintained
in strict confidence and shall not be disclosed to other parties, in whole or in part, without written permission of NETVOX
Technology. The specifications are subject to change without prior notice.
Advertisement
Table of Contents
Related Manuals for netvox R718EB
Summary of Contents for netvox R718EB
- Page 1 This document contains proprietary technical information which is the property of NETVOX Technology. It shall be maintained in strict confidence and shall not be disclosed to other parties, in whole or in part, without written permission of NETVOX Technology. The specifications are subject to change without prior notice.
-
Page 2: Table Of Contents
6. Data Report ............................. 6 6.1 ActiveThreshold and InActiveThreshold .................. 7 6.2 Calibration ..........................7 6.3 The X, Y, Z axis direction of R718EB ..................7 5.4 Example of ReportDataCmd ..................... 8 6.5 Example of Data Configuration ....................9 6.6 Example of GlobalCalibrateCmd .................... 10 6.7 Example for MinTime/MaxTime logic ..................11... -
Page 3: Introduction
R718EB is the Class A device based on the LoRaWAN protocol of Netvox. The device detects the tilt angle of three axes. When the device moves or vibrates beyond the set threshold value, and after the device is stationary, if the angle variation of any one of the three axes is greater or equal to than the AngleChange, it will immediately report the current tilt angle of the X, Y, and Z axes and the battery voltage. -
Page 4: Appearance
⚫ Low power consumption and long battery life Battery Life: ⁻ Please refer to web: http://www.netvox.com.tw/electric/electric_calc.html ⁻ At this website, users can find battery life time for variety models at different configurations. 1. Actual range may vary depending on environment. -
Page 5: Set Up Instruction
5. Set up Instruction On/Off Power on Insert batteries. (Users may need a screwdriver to open) Turn on Press and hold the function key for 3 seconds till the green indicator flashes once. Turn off (Restore to factory setting) Press and hold the function key for 5 second, and the green indicator flashes 20 times. Power off Remove Batteries. -
Page 6: Data Report
(1) The device report interval will be programmed based on the default firmware which may vary. (2) The interval between two reports must be the minimum time. Please refer Netvox LoRaWAN Application Command document and Netvox Lora Command Resolver http://cmddoc.netvoxcloud.com/cmddoc to resolve uplink data. -
Page 7: Activethreshold And Inactivethreshold
The 0g offset is an important accelerometer indicator because it defines the baseline used to measure acceleration. After installing R718EB, turn on the device and wait for the device join the network 1 minute, the device will automatically offset the calibration. -
Page 8: Example Of Reportdatacmd
Version– 1 byte –0x01——the Version of NetvoxLoRaWAN Application Command Version DeviceType– 1 byte – Device Type of Device The devicetype is listed in Netvox LoRaWAN Application Devicetype doc ReportType – 1 byte –the presentation of the NetvoxPayLoadData，according the devicetype NetvoxPayLoadData– Fixed bytes (Fixed =8bytes) Tips 1. -
Page 9: Example Of Data Configuration
byte (0003): Angle Y －0.3°, 3*0.1°=0.3° byte (FC81): Angle Z －- 89.5°, 0x10000 H -0xFC81 H = 37F H , 37F H =895 D -895*0.1°= -89.5° byte (00): Reserved 6.5 Example of Data Configuration FPort：0x07 Bytes Var(Fix =9 Bytes) CmdID DeviceType NetvoxPayLoadData CmdID–... -
Page 10: Example Of Globalcalibratecmd
81C8000000000000000000 (configuration is successful) 81C8010000000000000000 (configuration failed) (2) Read device parameters Downlink: 02C8000000000000000000 Device returns:82C8007800780100320000 (current device parameters) (3) Assuming that the Active Threshold is set to 10m/s , the value to be set is 10/9.8/0.0625=16.32,and the last value obtained is an integer and is configured as 16. -
Page 11: Example For Mintime/Maxtime Logic
Reserved 0x83 CalibrateRsp (1Byte,0x00_success) (9Bytes,Fixed 0x00) R718EB angle unit: 0.1° The calibration channel corresponding to each angle: AngleX = 00, AngleY= 01, AngleZ = 02 Example 1. Sensor detects Angle X value = 0° > Actual = 1° // +1°... - Page 12 Note: MaxTime=MinTime. Data will only be report according to MaxTime (MinTime) duration regardless BatteryVoltageChange value. Example#2 based on MinTime = 15 Minutes, MaxTime= 1 Hour, Reportable Change i.e. BatteryVoltageChange= 0.1V. MaxTime Sleeping(MinTime) sleeping sleeping sleeping Wakes up and Wakes up and Wakes up and Wakes up and Wakes up and...
-
Page 13: Installation
(The purpose is that the device will automatically perform the offset calibration to reduce the error of the detection result.) 8. Information about Battery Passivation Many of Netvox devices are powered by 3.6V ER14505 Li-SOCl2 (lithium-thionyl chloride) batteries that offer many advantages including low self-discharge rate and high energy density. -
Page 14: Description Of Waterproof Grade
67 Ω RAMWAY 8 minutes 50mA 67 Ω 8 minutes 50mA 67 Ω SAFT 8 minutes 50mA Note: If you buy batteries from other than the above four manufacturers, then the battery activation time, activation current, and required load resistance shall be mainly subject to the announcement of each manufacturer. 9. -
Page 15: Important Maintenance Instruction
10. Important Maintenance Instruction Kindly pay attention to the following in order to achieve the best maintenance of the product: • Keep the device dry. Rain, moisture, or any liquid might contain minerals and thus corrode electronic circuits. If the device gets wet, please dry it completely.
