BTRP230V(50) THERMOSTAT - FULL USER MANUAL

Advertisement

Table of Contents
loading

Related Manuals for Salus BTRP230V

Summary of Contents for Salus BTRP230V

  • Page 1 BTRP230V(50) THERMOSTAT - FULL USER MANUAL...

  • Page 3: Table Of Contents

    TABLE OF CONTENTS 1. Introduction ................................4 1.1 Product Compliance ..................................4 1.2 Safety Informations ..................................4 1.3 Product Overview ..................................5 2. Montage ..................................6 2.1 Package content ....................................6 2.2 Proper thermostat location ................................6 2.3 Connection description ..................................7 I A - 4 wire installation with KL08NSB wiring centre ......................8 I B - 4 wire installation with KL06 wiring centre .........................10 II - 3 wire installation with KL08NSB wiring centre ......................12 III A - work with RM-16A relay module - volt-free heating source control ................14...

  • Page 4: Introduction

    1. Introduction 1.1 Product Compliance This product complies with the essential requirements and other relevant provisions of Directives 2014/53/EU and 2011/65/EU. The full text of the EU Declaration of Conformity is available at the following internet address: www.saluslegal.com. 1.2 Safety Informations •...

  • Page 5: Product Overview

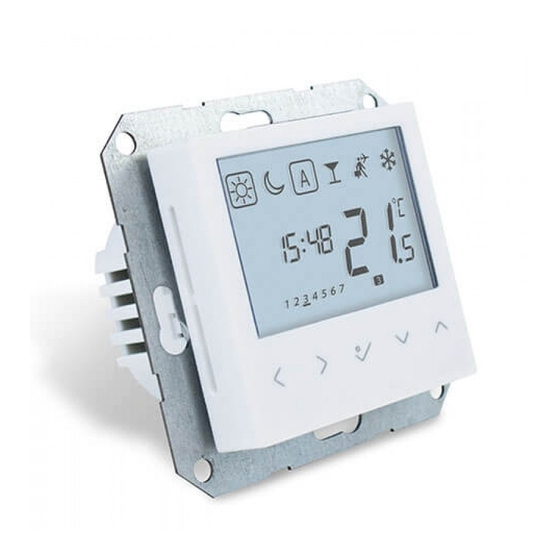

    1.3 Product Overview The BTRP230V(50) from SALUS Controls is a stylish and accurate 5/2 or 24h programmable electronic thermostat with a large, easy to read Liquid Crystal Display (LCD). It is flush-mounted (in a 55 mm frame) temperature controller dedicated for surface heating / cooling, characterized by high thermal inertia.

  • Page 6: Montage

    2. Montage 2.1 Package content 1) BTRP230V(50) thermostat 2) Short instruction 3) Mounting screws 2.2 Proper thermostat location Please note: The ideal position to thermostat mounting is about 1,5m under floor level far from heating or cooling sources. Thermostat can’t be exposed to sunlight or any extreme conditions like for example draft.

  • Page 7: Connection Description

    2.3 Connection description NSB input in Wejście NSB SLAVE thermostat w regulatorze SLAVE T30NC NSB output Wyjście NSB BTRP 230 BTRP Legend: Thermal actuator Temperature sensor Symbols explanation: L, N - power supply 230V - NSB - Night temperature reduction (230V output) - SL - 230 V AC output signal CO - Switching jumper between heating and...

  • Page 8: I A - 4 Wire Installation With Kl08Nsb Wiring Centre

    I A - 4 wire installation with KL08NSB wiring centre When BTRP230V(50) thermostat works as a MASTER (group controller) it means it takes control of SLAVE thermostats e.g. BTR230V(20). MASTER thermostat controls SLAVE thermostat only when SLAVE thermostat is in AUTO mode. Comfort (SUN) and economy (MOON) setpoint temperatures are set individually on each thermostat but switching between those temperature is based on time schedule taken from BTRP230(50) thermostat which works like a group controller.
  • Page 9 MASTER SLAVE VS30 RT200 RT520 BTRP230V(50) BTR230V(20) BTR230V(20) KL08NSB 1 - 8 Strefy 1 - 8 Strefy 1 - 8 Strefy 1-8 Zones 1-8 Zones 1-8 Zones Power Pump Boiler BOILER CONNECTION* max 6 max 6 max 6 T30NC T30NC...

  • Page 10: I B - 4 Wire Installation With Kl06 Wiring Centre

    I B - 4 wire installation with KL06 wiring centre MASTER SLAVE BTRP230(50) BTR230(20) BTR230(20) Power Supply 230V AC 4 wires x 0.75 mm2 KL06 PL07 PL06 Actuators wires Pump control wires Boiler control wires 2 x 0.75 mm2 2 x 1 mm2 2 x 1 mm2 T30NC230 THB23030...
  • Page 11 MASTER SLAVE BTRP230V(50) BTR230V(20) BTR230V(20) RT10 // RT20 RT10 // RT20 RT520 RT520 KL06-M KL06-M 1 - 6 Strefy 1 - 6 Strefy 1 - 6 Strefy PL06 1 - 6 Strefy PL06 1-8 Zones 1-8 Zones 1-8 Zones Power...

  • Page 12: Wire Installation With Kl08Nsb Wiring Centre

    3 wire installation with KL08NSB wiring center. Description of the operation rules: - BTRP230V(50) thermostat’s functionality is limited because of 3 wire installation. NSB function is disabled and BTRP230V(50) thermostat doesn’t work as a MASTER thermostat - no effect on other thermostats like BTR230V(20)
  • Page 13 BTRP230V(50) BTRP230V(50) VS30 BTRP230V(50) RT200 RT520 KL08NSB 1 - 8 Strefy 1 - 8 Strefy 1 - 8 Strefy 1-8 Zones 1-8 Zones 1-8 Zones Power Pump Boiler BOILER CONNECTION* max 6 max 6 max 6 T30NC T30NC T30NC per zone...

  • Page 14: A - Work With Rm-16A Relay Module - Volt-Free Heating Source Control

    III A - work with RM-16A relay module - volt-free heating source control VS30 RT52 BTRP230V(50) N SL (input) (wejście) (wejści RM-16A RM-16 AC 230V AC 230V Connection of a 230 V AC voltage thermostat to a boiler (or other device) with an ON - OFF contact.

  • Page 15: C - Work With Rm-16A Relay Module - Connecting An Electrical Device With A Higher Power

    III C - work with RM-16A relay module - connecting an electrical device with a higher power than the thermostat relay allows RM-16A RM-16A AC 230V AC 230V PLEASE NOTE! The maximum current consumption of an electrical device should not exceed 16A. VS30 091FL BTRP230V(50) N SL 16 (5) A (wejście) (input) RM-16A AC 230V KL08NSB (wejście)

  • Page 16: Before You Start (First Power Up)

    3. Before you start (first power up) 3.1 LCD icon description 1. Comfort temperature 9. Current / set temperature 2. Economic temperature 10. Program number 3. Automatic mode 11. Clock 4. PARTY mode 12. Day indicator 5. Holiday mode 13. External temperature sensor 6.

  • Page 17: First Power Up Sequence

    3.3 First power up sequence To power on the thermostat you ...display will show all icons..then thermostat will display the have to connect it to the 230V software version. power supply then... Confirm by button. Set time format „ ” or „ ” buttons. Set time (hours and minutes) using Confirm by button.

  • Page 18: Work Modes

    4. Work modes BTRP230V(50) offers a few work modes. Frame on a given icon indicates which mode is currently active. In manual mode only one temperature level is maintained. Thermostat follows programmed schedule when AUTO mode is active („A” icon). Detailed description of work modes is located below: - Frame - means that the work mode is active (the icon of the work mode must be in the center of the frame).

  • Page 19: User Settings (Basic Settings)

    5. User settings (basic settings) 5.1 Schedule mode - programming schedule To program schedule, please follow steps below: 3 sec. Hold button for 3 seconds to Enter into the schedule settings. enter the menu. There are 4 possible schedule variants. Use and buttons to select schedule variant and confirm by button: Separate schedule for WORKING DAYS.
  • Page 20 Schedule programming example for the WORKING DAYS variant: Select schedule variant by button. buttons to set hour buttons to set mi- for the first program. nutes for the first program. Confirm Confirm by button. button. Confirm by button. Schedule editing will jump to the Use and buttons to choose next program’s time setting.
  • Page 21 In addition to editing and creating your own schedule, there are also 5 default profiles for built-in schedules. You can select and customize any of the programs listed below. Default programs are selectable through Installer Parameters (parameter D17). Program Profile 1 5 days (Monday to Friday) 2 days (Saturday to Sunday) Program Program...

  • Page 22: Time/Date

    5.2 Time/Date To set time/date follow steps below: 3 sec. Hold button for 3 seconds to Go to the time and date settings Choose time and date settings option enter the menu. using button. button. First, select time format (12/24h) Set hour using buttons.

  • Page 23: Thermostat Calibration

    5.3 Thermostat calibration Thermostat calibration is a function which allows user to recalibrate internal thermostat’s temperature sensor by a given number of degrees (in the range from -3,0 °C to 3,0 °C in 0,5 °C steps). To calibrate thermostat’s temperature sensor please follow steps below: 3 sec.

  • Page 24: Heat/Cool Mode Change

    5.4 Heat/cool mode change The heating / cooling mode for the thermostat can be changed manually or automatically via „CO” terminal. If 230V power is applied to the „CO” terminal - then thermostat automatically switches to cooling mode. If you use this function in automatic mode, set the d18 parameter value to „1”. MANUALLY: 3 sec.

  • Page 25: Installer Parameters

    6. Installer parameters To enter installer parameters please follow steps below. Please refer to parameters table description before any changes. Use buttons to move up or down between all parameters. Every change/selection confirm by button: 3 sec. 3 sec. Hold + buttons for 3 seconds to choose to enter the installer mode.
  • Page 26 Parameter Default Function Description Values Values SPAN ± 0.25°C (± 0.5°F) Cooling Control SPAN ± 0.5°C (± 1.0°F) Enable. Valve protection function is intended to protect thermostatic valves against Valve Protection getting stuck or jamming (e.g. in summer time when heating system is disa- bled).

  • Page 27: Factory Reset

    7. Factory Reset To RESET BTRP230V(50) thermostat to it’s factory default settings please follow steps below: 3 sec. 3 sec. Hold + buttons for 3 seconds buttons Press button to confirm. to enter the installer mode. to choose code „47”.

  • Page 28: Cleaning And Maintenance

    8. Cleaning and Maintenance The BTRP230V(50) thermostat requires no special maintenance. Periodically, the outer casing can be wiped clean using a dry cloth (please DO NOT use solvents, polishes, detergents or abrasive cleaners, as these can damage the thermostat). There are no user serviceable parts within the unit; any servicing or repairs could only be carried out by Salus Controls or their appointed agents.

  • Page 29: Warranty

    SALUS Controls warrants that this product will be free from any defect in materials or workmanship, and shall perform in accordance with its specification, for a period of five years from the date of installation. SALUS Controls sole liability for breach of this warranty will be (at its option) to repair or replace the...
  • Page 30 SALUS Controls is a member of the Computime Group. Maintaining a policy of continuous product development SALUS Controls plc reserve the right to change specification, design and materials of products listed in this brochure without prior notice. Ver. 3 Issued: 01 IX 2020 Soft version: 1.8...
