MULTISPAN PC-1044 Operating Manual page 2

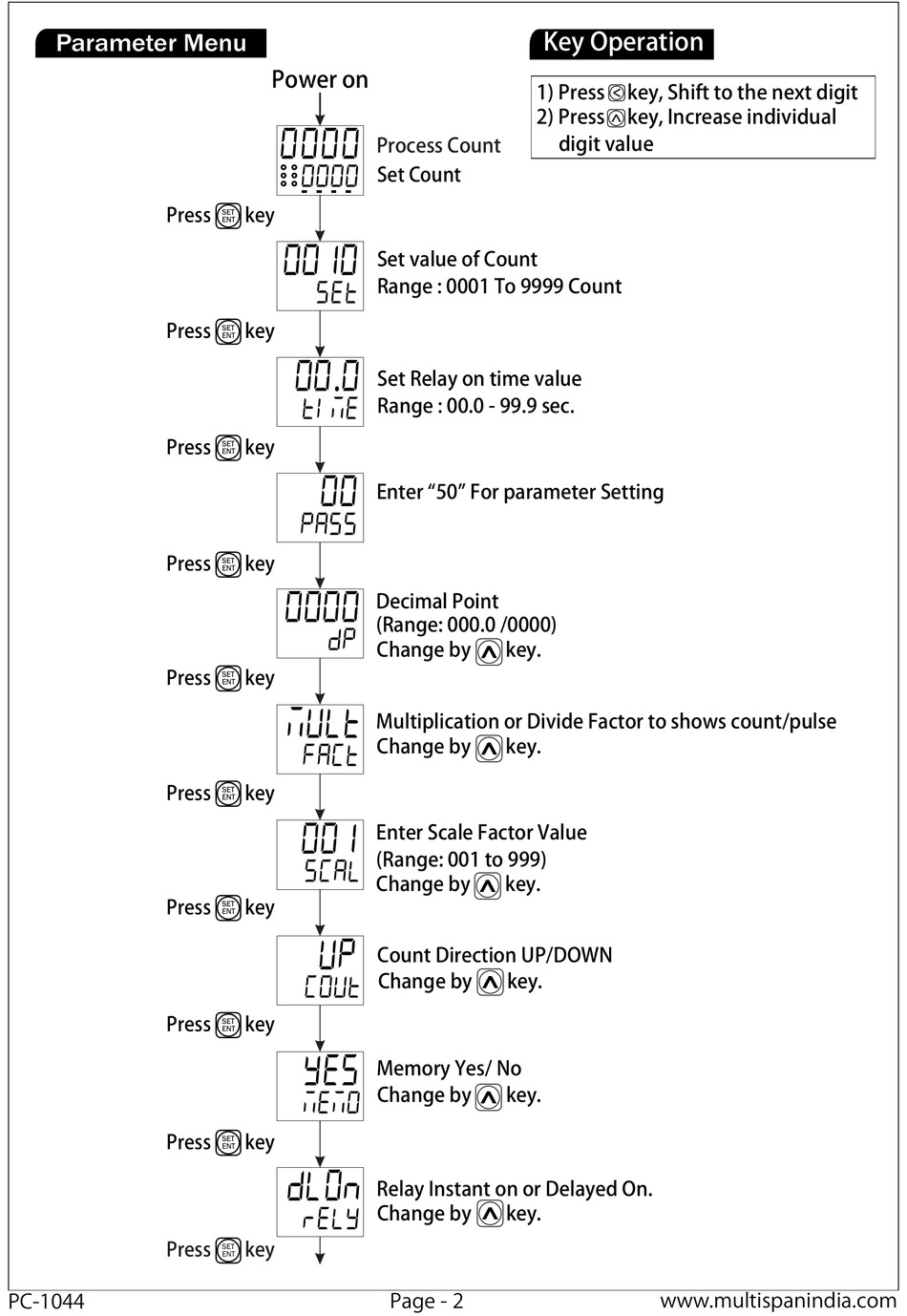

Parameter Menu
Press
Press
Press
Press
Press
Press
Press
Press
Press
Press
PC-1044
Power on
 
Process Count
Set Count
 
key
SET
ENT

Set value of Count
Range : 0001 To 9999 Count

key
SET
ENT
.
Set Relay on time value
Range : 00.0 - 99.9 sec.

key
SET
ENT

Enter 50 For parameter Setting

key
SET
ENT
 Decimal Point
(Range: 000.0 /0000)

Change by
key
SET
ENT

Multiplication or Divide Factor to shows count/pulse
Change by

key
SET
ENT
Enter Scale Factor Value

(Range: 001 to 999)

Change by
key
SET
ENT

Count Direction UP/DOWN
Change by

key
SET
ENT

Memory Yes/ No
Change by

key
SET
ENT

Relay Instant on or Delayed On.
Change by

key
SET
ENT
Page - 2
Key Operation
1) Press key, Shift to the next digit
2) Press key, Increase individual
digit value
key.
key.
key.
key.
key.
key.
