Summary of Contents for Pilz PSEN cs5.11n

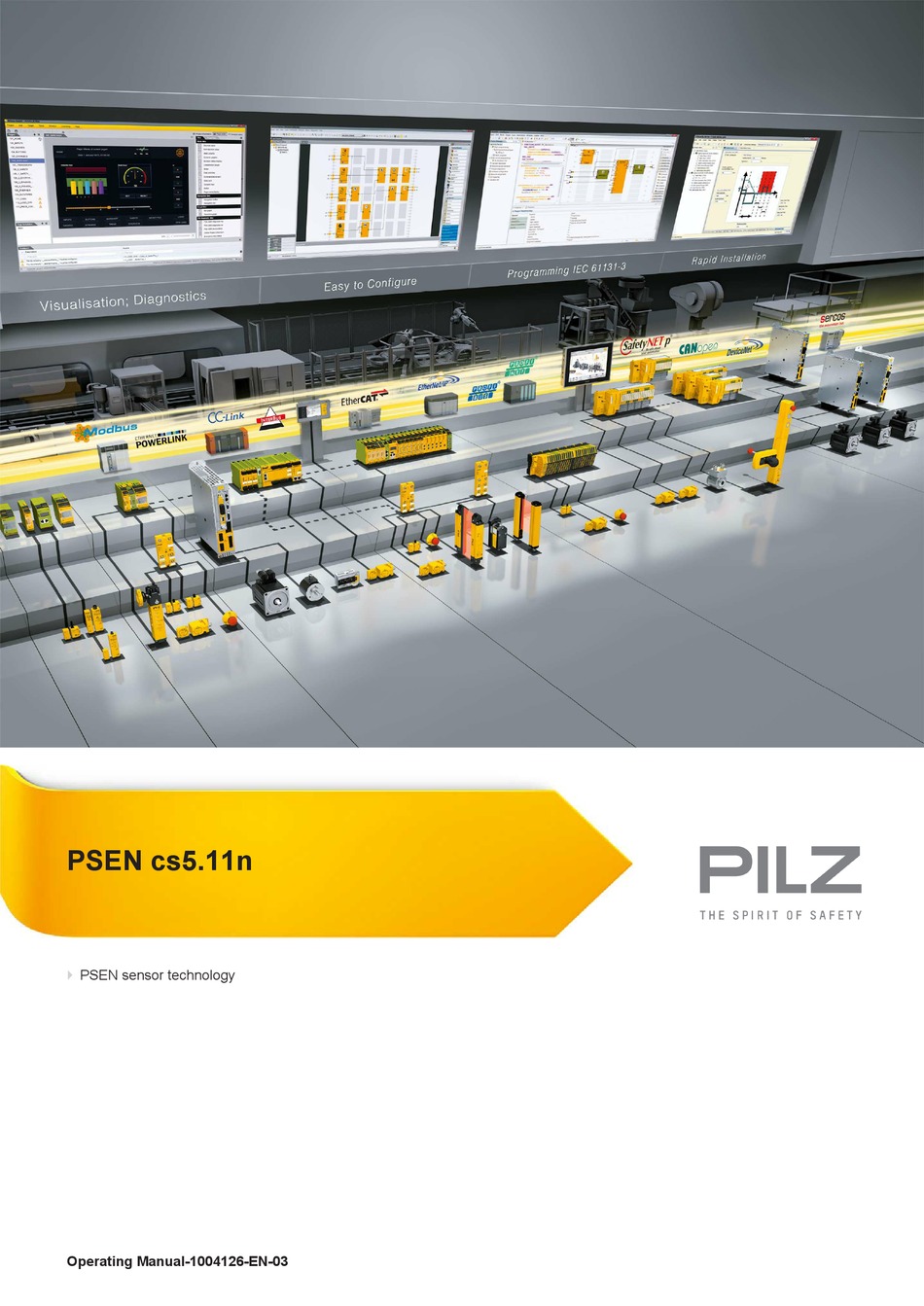

  • Page 1 PSEN cs5.11n PSEN sensor technology Operating Manual-1004126-EN-03...
  • Page 2 Preface This document is the original document. All rights to this documentation are reserved by Pilz GmbH & Co. KG. Copies may be made for the user's internal purposes. Suggestions and comments for improving this documenta- tion will be gratefully received.
  • Page 3: Table Of Contents

    Operating distances Lateral and vertical offset Wiring Pin assignment, connector and cable Connection to evaluation devices Single connection Connection to Pilz evaluation devices Teaching in the actuator Installation Use in operating heights higher than 2000 m above sea level Adjustment Operation...
  • Page 4 Contents Order reference System Accessories EC declaration of conformity EC declaration of conformity Operating Manual PSEN cs5.11n 1004126-EN-03...
  • Page 5: Introduction

    PSEN cs5.11n Introduction Validity of documentation This documentation is valid for the product PSEN cs5.11n. It is valid until new documenta- tion is published. This operating manual explains the function and operation, describes the installation and provides guidelines on how to connect the product.
  • Page 6: Safety

    If installed in other environments, measures should be taken to comply with the applicable standards and directives for the respective installation site with regard to in- terference. Operating Manual PSEN cs5.11n 1004126-EN-03...
  • Page 7: Safety Regulations

    In safety-related applications, please comply with the mission time T in the safety-re- lated characteristic data. When decommissioning, please comply with local regulations regarding the disposal of electronic devices (e.g. Electrical and Electronic Equipment Act). Operating Manual PSEN cs5.11n 1004126-EN-03...
  • Page 8: For Your Safety

    Explanation of markings [ – Square marking The guaranteed safe operating distances for the specified selections only apply when the actuator approaches the switch vertically. With other approach directions, the oper- ating distances may partly be considerably larger. Operating Manual PSEN cs5.11n 1004126-EN-03...
  • Page 9: Function Description

    Operating distances [1] Actuator aligned to the square marking on the switch Assured operating distance: 8 mm Assured release distance: 20 mm Typical operating distance: 11 mm Typical release distance: 14 mm DEVICE SAFETY GATE INPUT Operating Manual PSEN cs5.11n 1004126-EN-03...
  • Page 10 Typical course of change in the holding force as the distance from the switch to the actuator increases with frontal approach holding force (N) distance (mm) Fig.: Change in the holding force for distances from 0-25 mm Operating Manual PSEN cs5.11n 1004126-EN-03...
  • Page 11: Lateral And Vertical Offset

    Actuator aligned to the square marking on the switch -12 -8 -4 0 Legend [1] Hysteresis [2] Typical operating distance S [3] Typical release distance S [4] Offset in mm [5] Operating distance in mm [6] Response range [7] Status of LED Operating Manual PSEN cs5.11n 1004126-EN-03...
  • Page 12 8 4 0 Legend [1] Hysteresis [2] Typical operating distance S [3] Typical release distance S [4] Offset in mm [5] Operating distance in mm [6] Response range [7] Status of LED [8] Square marking Operating Manual PSEN cs5.11n 1004126-EN-03...
  • Page 13: Wiring

    Function Wire colour +24 V UB brown Output, channel1 white 0 V UB blue Output, channel2 black Signal output grey The wire colour also applies for the cable available from Pilz as an accessory. Operating Manual PSEN cs5.11n 1004126-EN-03...
  • Page 14: Connection To Evaluation Devices

    Actuator Receiver Evaluation device Connection to Pilz evaluation devices The safety switch PSEN cs5.11n can be connected to Pilz evaluation devices, for example. Suitable Pilz evaluation devices are, for example: PNOZelog for safety gate monitoring PNOZpower for safety gate monitoring PNOZsigma for safety gate monitoring Operating Manual PSEN cs5.11n...
  • Page 15 The connections to two evaluation devices are shown on the following pages, by way of ex- ample: PNOZ s3 and PNOZmulti PNOZ s3 PSENcode PNOZ s3 PNOZmulti PNOZmulti PSENcode 5 Y32 Legend: Input OSSD Input OSSD Signal input Operating Manual PSEN cs5.11n 1004126-EN-03...
  • Page 16: Teaching In The Actuator

    PSEN cs5.11n Teaching in the actuator Any approved Pilz actuator is detected as soon as it is brought into the response range. Installation CAUTION! Potential loss of safety function due to changed device properties The unit's properties may be affected if installed in an environment contain- ing electrically or magnetically conductive material.
  • Page 17 Fig.: Seals [1]: 4 seals for actuators [2]: 2 seals for actuators [3]: 2 seals for actuators [4]: 2 seals for switches and 2 seals for actuators Fig.: Applying the screw cover [4] on the switch Operating Manual PSEN cs5.11n 1004126-EN-03...
  • Page 18: Use In Operating Heights Higher Than 2000 M Above Sea Level

    7. Align the actuator and tighten the screws. Use in operating heights higher than 2000 m above sea level When using the PSEN cs5.11n note the reduced max. ambient temperature of +60 °C at a height of 2000 m to 4000 m.
  • Page 19: Operation

    [ 22]. Display not Display not Supply voltage is at Ensure the voltage supply definitive definitive the limit of the toler- corresponds to the Tech- ance range yellow nical details [ 22]. Operating Manual PSEN cs5.11n 1004126-EN-03...
  • Page 20: Dimensions In Mm

    Display not Wrong actuator Use the actuator PSEN definitive cs5.11 M12. green yellow Switch doesn't start Change the switch. yellow yellow Dimensions in mm Safety switch DEVICE SAFETY GATE INPUT 26,4 Operating Manual PSEN cs5.11n 1004126-EN-03...
  • Page 21 PSEN cs5.11n Actuator Legend: [1] Square marking [2] Triangle marking [3] LEDs [4] Semicircle marking Operating Manual PSEN cs5.11n 1004126-EN-03...
  • Page 22: Technical Details

    Lowest operating current 2 mA Utilisation category in accordance with EN 60947-1 DC-12 Times Test pulse duration, safety outputs 150 µs Switch-on delay after UB is applied Actuator typ. 30 ms Actuator max. 50 ms Operating Manual PSEN cs5.11n 1004126-EN-03...
  • Page 23 Protection type IP66, IP67 Housing Mechanical data Magnetic holding force between actuator and sensor 30 N Actuator 1 PSEN cs5.11 M12 Operating distances Repetition accuracy switching distances Change of operating distance with temperature changes +-0,02mm/°C Operating Manual PSEN cs5.11n 1004126-EN-03...
  • Page 24: Safety Characteristic Data

    [1/h] 2015 2015 2015 Category [year] 2-ch. OSSD PL e Cat. 4 SIL CL 3 9,56E-10 8,51E-06 – All the units used within a safety function must be considered when calculating the safety characteristic data. Operating Manual PSEN cs5.11n 1004126-EN-03...
  • Page 25: Supplementary Data

    2) this product must accept any interference received, including interference that may cause undesired operation. Changes or modifications made to this product not expressly approved by Pilz may void the FCC authorization to operate this equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules.
  • Page 26: Accessories

    630 311 10 m 630 312 20 m 630 298 30 m 630 297 PSEN cable M12-5af Angled, M12, 5-pin, socket Open cable 630 347 630 348 10 m 630 349 30 m 630 350 Operating Manual PSEN cs5.11n 1004126-EN-03...
  • Page 27: Ec Declaration Of Conformity

    European Parliament and of the Council. 2006/42/EC on machines 2014/53/EC on radio equipment The complete EC Declaration of Conformity is available on the Internet at www.pilz.com/ downloads. Representative: Norbert Fröhlich, Pilz GmbH & Co. KG, Felix-Wankel-Str. 2, 73760 Ost- fildern, Germany...
  • Page 28 Back cover Support Technical support is available from Pilz round the clock. Americas Australia Scandinavia +45 74436332 Brazil +61 3 95600621 +55 11 97569-2804 Spain Canada Europe +34 938497433 +1 888-315-PILZ (315-7459) Austria Switzerland Mexico +43 1 7986263-0 +41 62 88979-30...
