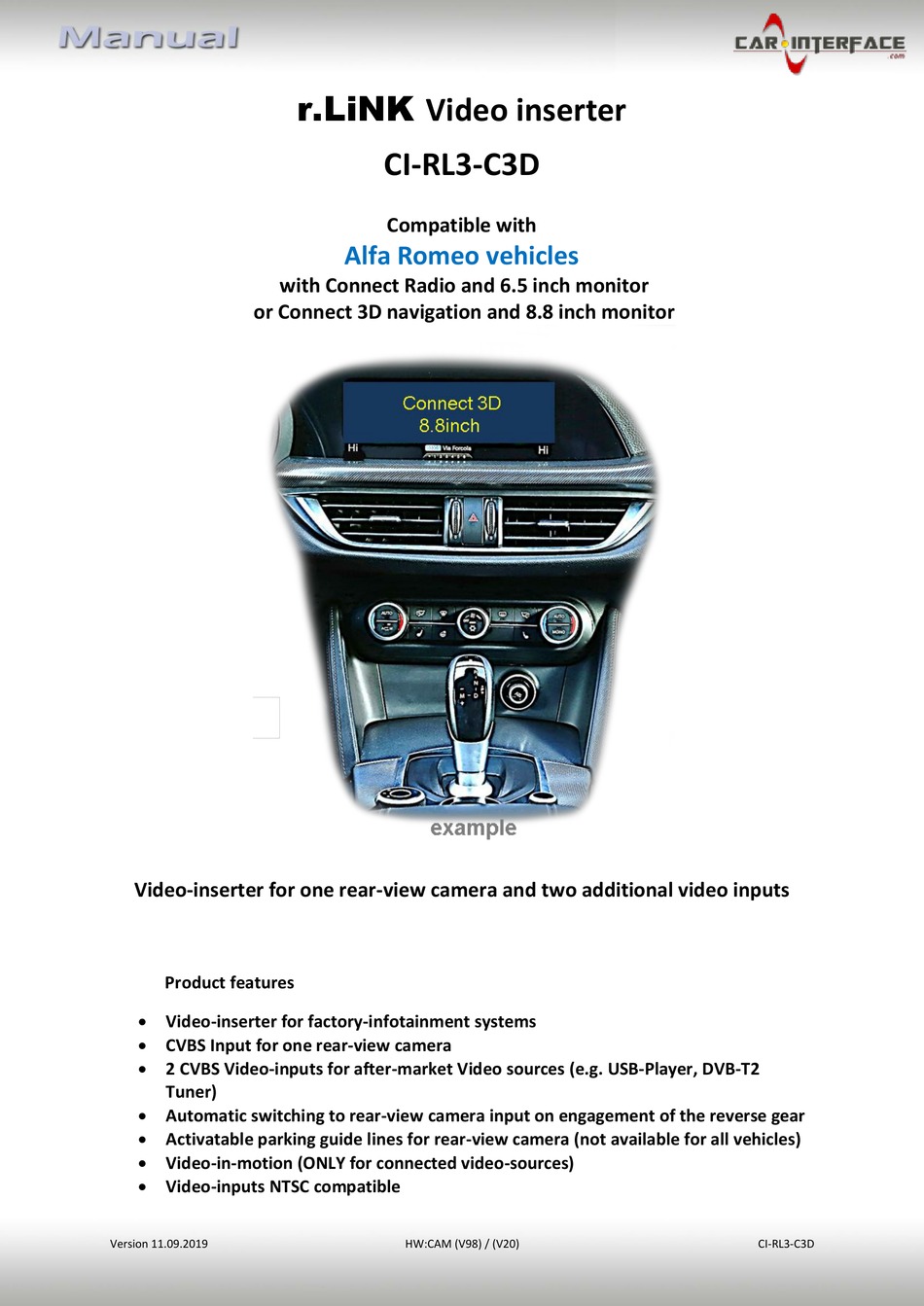

r.LiNK Video inserter
CI-RL3-C3D
Compatible with
Alfa Romeo vehicles
with Connect Radio and 6.5 inch monitor
or Connect 3D navigation and 8.8 inch monitor
Video-inserter for one rear-view camera and two additional video inputs
Product features
Video-inserter for factory-infotainment systems
CVBS Input for one rear-view camera
2 CVBS Video-inputs for after-market Video sources (e.g. USB-Player, DVB-T2
Tuner)
Automatic switching to rear-view camera input on engagement of the reverse gear
Activatable parking guide lines for rear-view camera (not available for all vehicles)
Video-in-motion (ONLY for connected video-sources)
Video-inputs NTSC compatible
Version 11.09.2019
HW:CAM (V98) / (V20)
CI-RL3-C3D
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for r.LiNK CI-RL3-C3D
Summary of Contents for r.LiNK CI-RL3-C3D
- Page 1 Video inserter CI-RL3-C3D Compatible with Alfa Romeo vehicles with Connect Radio and 6.5 inch monitor or Connect 3D navigation and 8.8 inch monitor Video-inserter for one rear-view camera and two additional video inputs Product features Video-inserter for factory-infotainment systems ...
-
Page 2: Table Of Contents
Case 2Interface does not receive the reverse gear signal 2.5. Connecting video-interface and external keypad 2.6. Picture settings and guide lines 3. Interface operation 3.1. By factory infotainment button 3.2. By keypad 4. Specifications 5. FAQ – Trouble Shooting-Interface functions Version 11.09.2019 HW:CAM (V98) / (V20) CI-RL3-C3D... -
Page 3: Prior To Installation
Due to changes in the production of the vehicle manufacturer there’s always a possibility of incompatibility. 1.1. Delivery contents 'ahmad@fosp.cn' Take down the serial number of the interface and store this manual for support purposes: ____________________ Version 11.09.2019 HW:CAM (V98) / (V20) CI-RL3-C3D... -
Page 4: Checking The Compatibility Of Vehicle And Accessories
Video input signal Only NTSC compatible. Guide lines If the interface does not receive the required information from the vehicle CAN- bus, the guide-lines will not be supported. Version 11.09.2019 HW:CAM (V98) / (V20) CI-RL3-C3D... -
Page 5: Boxes And Connectors - Video Interface
See the following chapters for detailed information. After each Dip-switch-change a power-reset of the Can-box has to be performed! See the following chapters for detailed information. Version 11.09.2019 HW:CAM (V98) / (V20) CI-RL3-C3D... -
Page 6: Enabling The Interface's Video Inputs (Dip 2-3)
6pin plug at the interface box between every change of the dip setting. Empirical value: Size of monitor Dip 7 Dip8 6.5inch monitor 8.8 Zoll high resolution monitor 8.8 Zoll lower resolution monitor Version 11.09.2019 HW:CAM (V98) / (V20) CI-RL3-C3D... -
Page 7: Settings Of The 4 Dip Switches (Can Function - Red)
Due to changes in the production of the vehicle manufacturer there’s always a possibility of incompatibility. 2.1. Place of installation The interface is supposed to be installed at a suitable location behind the vehicle`s head- unit. Version 11.09.2019 HW:CAM (V98) / (V20) CI-RL3-C3D... -
Page 8: Connection Schema
2.2. Connection schema Version 11.09.2019 HW:CAM (V98) / (V20) CI-RL3-C3D... -
Page 9: Connection To Factory Head Unit And Monitor
Connect the angled female purple coloured HSD+2 connector opposite the picture signal cable to the purple coloured male HSD+2 connector „HU IN“ of the video interface. Note: The colours of the HSD+2 connectors at monitor and head unit may vary. Version 11.09.2019 HW:CAM (V98) / (V20) CI-RL3-C3D... -
Page 10: Connection To Quadlock - Can
40pin Quadlock connector of the Power / CAN cable. Connect the opposite female Quadlock connector of the Power / CAN cable to the previously become free male Quadlock connector at the rear-side of the head unit. Version 11.09.2019 HW:CAM (V98) / (V20) CI-RL3-C3D... -
Page 11: Connection Of Video-Sources
Connect the video RCA of the video source 1 and 2 to the female RCA connector “Video IN1” ”Video IN 2” of the 12pin interface cable. Connect the video RCA of the rear-view camera to the female RCA connector “Camera IN” the 12pin interface cable. Version 11.09.2019 HW:CAM (V98) / (V20) CI-RL3-C3D... -
Page 12: Audio Insertion
“Camera IN” while the reverse gear is engaged. Additionally, the +12V (max. 3A) power supply for the rear-view camera can be taken from the green wire of the 12pin interface cable. Version 11.09.2019 HW:CAM (V98) / (V20) CI-RL3-C3D... - Page 13 Connect the output connector (87) of the relay to the rear-view camera’s power- cable, like you did it to the green “Reverse-IN” cable before. Connect stabile and permanent +12V to the relay’s input connector (30). Version 11.09.2019 HW:CAM (V98) / (V20) CI-RL3-C3D...
-
Page 14: Connecting Video-Interface And External Keypad
Connect the female 4pin connector of the keypad to the male 4pin connector of the 12pin interface cable. Note: Even if switching through several video sources by the keypad mightn’t be required, the invisible connection and availability is strongly recommended. Version 11.09.2019 HW:CAM (V98) / (V20) CI-RL3-C3D... -
Page 15: Picture Settings And Guide Lines
If there is no communication between interface and the vehicle`s CAN-bus (several vehicles aren’t compatible), the reverse gear guide-lines can`t be shown during the vehicle’s operation, even if they once appear after having switched the system to powerless! Version 11.09.2019 HW:CAM (V98) / (V20) CI-RL3-C3D... -
Page 16: Interface Operation
Alternatively or additionally to the factory infotainment buttons, the interface’s external keypad can be used to switch the enabled inputs. Even if not needed, the keypad should always remain connected to the video interface for support purposes. Version 11.09.2019 HW:CAM (V98) / (V20) CI-RL3-C3D... -
Page 17: Specifications
Stand-by power drain 13mA Power 290mA @12V Video input 0.7V - 1V Video input formats NTSC Temperature range -40°C to +85°C Dimensions video-box 118 x 25 x 103 mm (W x H x D) Version 11.09.2019 HW:CAM (V98) / (V20) CI-RL3-C3D... -
Page 18: Faq - Trouble Shooting-Interface Functions
Test camera under natural light outside the garage. flickers. directly into the camera. Camera input picture is Protection sticker not Remove protection sticker from lens. bluish. removed from camera lens. Version 11.09.2019 HW:CAM (V98) / (V20) CI-RL3-C3D... - Page 19 Interface switches compatibility to vehicle is ends. If problem still occurs, additionally cut the white video-sources by itself. limited. wire of 6pin to 8pin cable and isolate both ends. 10R-03 5384 Made in China Version 11.09.2019 HW:CAM (V98) / (V20) CI-RL3-C3D...
