MMI3G basic/high, MMI3G+ basic/high infotainments
RNS850 infotainment and 4pin HSD LVDS connector
Product features
Video-inserter for factory-infotainment systems
2 CVBS video-inputs for after-market devices (e.g. DVD-Player, DVB-T tuner)
CVBS Rear-view camera video-input
Automatic switching to rear-view camera input on engagement of reverse gear
Activatable parking guide lines for rear-view camera (not available for all vehicles)
Video-in-motion (ONLY for connected video-sources)
Video-inputs PAL/NTSC compatible
Version 06.03.2020

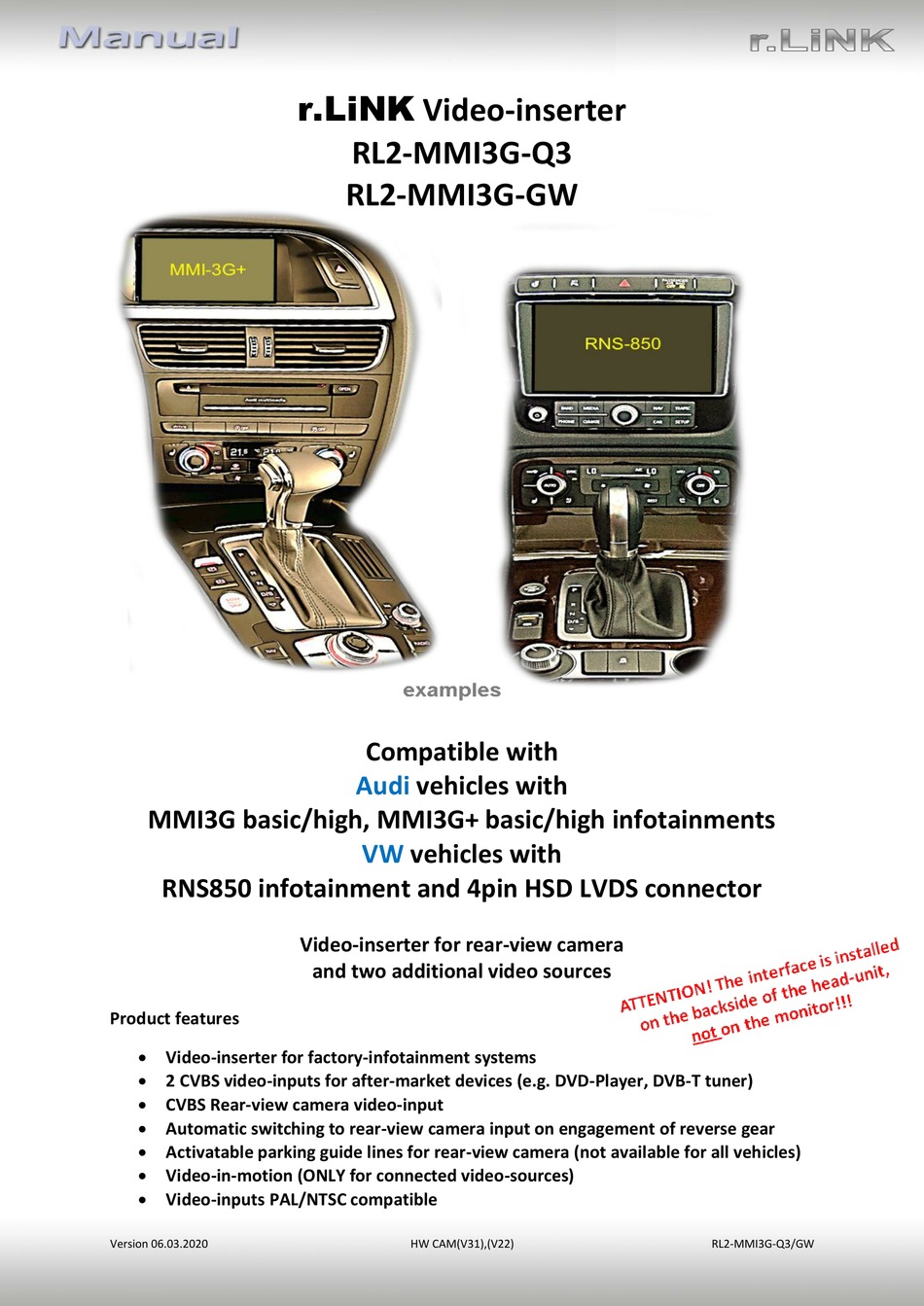

r.LiNK Video-inserter
RL2-MMI3G-Q3
RL2-MMI3G-GW
Compatible with
Audi
vehicles with
VW
vehicles with
Video-inserter for rear-view camera
and two additional video sources
HW CAM(V31),(V22)
RL2-MMI3G-Q3/GW
Advertisement
Table of Contents
Related Manuals for r.LiNK RL2-MMI3G-Q3
Summary of Contents for r.LiNK RL2-MMI3G-Q3
- Page 1 Video-inserter RL2-MMI3G-Q3 RL2-MMI3G-GW Compatible with Audi vehicles with MMI3G basic/high, MMI3G+ basic/high infotainments vehicles with RNS850 infotainment and 4pin HSD LVDS connector Video-inserter for rear-view camera and two additional video sources Product features Video-inserter for factory-infotainment systems 2 CVBS video-inputs for after-market devices (e.g. DVD-Player, DVB-T tuner) ...
-
Page 2: Table Of Contents
Connection - video-interface and CAN-box 2.4. Connection - head-unit 2.5. RL2-MMI3G-GW – Connection to the CAN-gateway 2.6. RL2-MMI3G-Q3 – Connection to the climate control panel and head-unit 2.7. RNS-850 – stripped 4pin harness 2.8. Connection – video sources´ 2.8.1. Audio-insertion 2.8.2. -
Page 3: Prior To Installation
Technical knowledge is necessary for installation. The place of installation must be free of moisture and away from heat sources. 1.1. Delivery contents Take down the serial number of the interface and store this manual for support purposes: ____________________ Version 06.03.2020 HW CAM(V31),(V22) RL2-MMI3G-Q3/GW... -
Page 4: Checking The Compatibility Of Vehicle And Accessories
Item no. 4pin HSD video connector) Audi Q3 (8U) 10/2011 – 07/2018 All head-units with monitor RL2-MMI3G-Q3 A1 (8X) since 05/2010 til 10/2018 A4 (8K) since 05/2009 til 08/2015 A5 (8T) since 11/2008 til 06/2016 A6 (4F) since 08/2008 til 03/2011 MMI Navigation (Plus) 7"... -
Page 5: Boxes And Connectors
Further it reads the vehicle’s digital signals out of the vehicle’s CAN-bus and converts them for the video interface. Version 06.03.2020 HW CAM(V31),(V22) RL2-MMI3G-Q3/GW... -
Page 6: Dip-Switch Settings - Video Interface (8 Dip Black)
6pin plug of the video interface between every change of the dip setting. Dip 1, 4 and 6 are out of function and have to be set to OFF. After each Dip-switch-change a power-reset of the Video Interface has to be performed! Version 06.03.2020 HW CAM(V31),(V22) RL2-MMI3G-Q3/GW... -
Page 7: Installation
The interface shell be installed on the backside of the head-unit (navigation computer/radio). Depending on the interface version the connection to CAN-Bus and power is different: Item no. PNP cable CAN-bus/power RL2-MMI3G-Q3 Climate control panel + head unit RL2-MMI3G-GW CAN-gateway Special case RNS850:... -
Page 8: Connection Schema
2.2. Connection scheme Version 06.03.2020 HW CAM(V31),(V22) RL2-MMI3G-Q3/GW... -
Page 9: Connection - Video-Interface And Can-Box
Connect the separate white cable to the MMI signal at pin10 of the Quadlock for alternative switching of sources by NAV button in the centre console, if existing. (Only for MMI 3G, not for MMI 3G+ or RNS850) Version 06.03.2020 HW CAM(V31),(V22) RL2-MMI3G-Q3/GW... -
Page 10: Connection - Head-Unit
HSD+2 connector of the video-interface. Note: No liability for vehicle wire colours and pin definition! Changes by the vehicle manufacturer are possible. The given information has to be verified by the installer. Version 06.03.2020 HW CAM(V31),(V22) RL2-MMI3G-Q3/GW... -
Page 11: Rl2-Mmi3G-Gw - Connection To The Can-Gateway
20-Pin connector of the CAN Gateway. Note: In case of difficulties with the connection of the 20pin PNP harness; the enclosed stripped 4pin harness can be used for the upper shown Gateway pin connection. Version 06.03.2020 HW CAM(V31),(V22) RL2-MMI3G-Q3/GW... -
Page 12: Rl2-Mmi3G-Q3 - Connection To The Climate Control Panel And Head-Unit
2.6. RL2-MMI3G-Q3 – Connection to the climate control panel and head-unit Disconnect the 16pin connector of the factory harness at the rear-side of the climate control unit and connect it to the 16-pin connector of the 16pin PNP harness. Connect the opposite 16-pin connector of the 16-pin PNP harness to the climate control unit’s previously become free 16-pin connector. -
Page 13: Rns850 - Stripped 4Pin Harness
• blue •• CAN High Pin 2 orange/violett There`s no liability for the vehicle`s pin diagram! Changes in the manufacturer`s production are possible any time. The mentioned information has to be verified by the installer. Version 06.03.2020 HW CAM(V31),(V22) RL2-MMI3G-Q3/GW... -
Page 14: Connection - Video Sources
Connect the video RCA of the video source 1 and 2 to the female RCA connector “Video IN1” ”Video IN 2” of the 6pin video cable. Connect the video RCA of the rear-view camera to the female RCA connector “Camera IN” of the 6pin video cable. Version 06.03.2020 HW CAM(V31),(V22) RL2-MMI3G-Q3/GW... -
Page 15: Audio-Insertion
CAM while reverse gear is engaged. Additionally, the +12V (max. 500mA) power supply for the rear-view camera can be taken from the green wire of the 6pin to 8pin cable. Version 06.03.2020 HW CAM(V31),(V22) RL2-MMI3G-Q3/GW... -
Page 16: Case 2: Can-Box Does Not Detect Reverse Gear
Connect the output connector (87) of the relay to the rear-view camera’s power- cable, like you did it to the green wire of the 6pin to 8pin cable before. Connect stabile and permanent +12V to the relay’s input connector (30). Version 06.03.2020 HW CAM(V31),(V22) RL2-MMI3G-Q3/GW... -
Page 17: Connection Video-Interface And Keypad
2.9. Connecting video-interface and keypad Connect the female 4pin connector of the keypad to the male 4pin connector of the video-interface. Version 06.03.2020 HW CAM(V31),(V22) RL2-MMI3G-Q3/GW... -
Page 18: Picture Settings And Guide Lines
If there is no communication between interface and the vehicle`s CAN-bus (several vehicles aren’t compatible), the reverse gear guide-lines can`t be shown during the vehicle’s operation, even if they once appear after having switched the system to powerless! Version 06.03.2020 HW CAM(V31),(V22) RL2-MMI3G-Q3/GW... -
Page 19: Interface Operation
0.7V - 1V Video input formats PAL/NTSC Temperature range -40°C to +85°C Dimensions video-box (W x H x D) 113 x 22 x 115mm Dimensions CAN-box (W x H x D) 73 x 22 x 30 mm Version 06.03.2020 HW CAM(V31),(V22) RL2-MMI3G-Q3/GW... - Page 20 Camera input picture fluorescent light which shines Test camera under natural light outside the garage. flickers. directly into the camera. Camera input picture is Protection sticker not Remove protection sticker from lens. bluish. removed from camera lens. Version 06.03.2020 HW CAM(V31),(V22) RL2-MMI3G-Q3/GW...
-
Page 21: Technical Support
Please note that direct technical support is only available for products purchased directly from NavLinkz GmbH. For products bought from other sources, contact your vendor for technical support. NavLinkz GmbH distribution/tech dealer-support Heidberghof 2 D-47495 Rheinberg +49 2843 17595 00 Email mail@navlinkz.de 10R-03 5384 Made in China Version 06.03.2020 HW CAM(V31),(V22) RL2-MMI3G-Q3/GW...
