with MyLink infotainment and 7inch monitor
with R4.0 IntelliLink infotainment and 7inch monitor
Video-inserter for front- and rear-view camera
Product features
Video-inserter for factory-infotainment systems
1 CVBS Input for rear-view camera
1 CVBS Input for front camera
2 CVBS video-inputs for after-market devices (e.g. USB-Player, DVB-T2 tuner)
Automatic switching to rear-view camera input on engagement of the reverse gear
Automatic front camera switching after reverse gear for 10 seconds
Activatable parking guide lines for rear-view camera (not available for all vehicles)
Video-in-motion (ONLY for connected video-sources)
Video-inputs NTSC and PAL compatible
Version 02.10.2019
r.LiNK Video-inserter
RL4-R40-E
Compatible with
Chevrolet vehicles
with separated radio unit
Opel vehicles
with separated radio unit
and two additional video sources
HW CAM(V98)/(V12)
RL4-R40-E
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for r.LiNK RL4-R40-E
Summary of Contents for r.LiNK RL4-R40-E

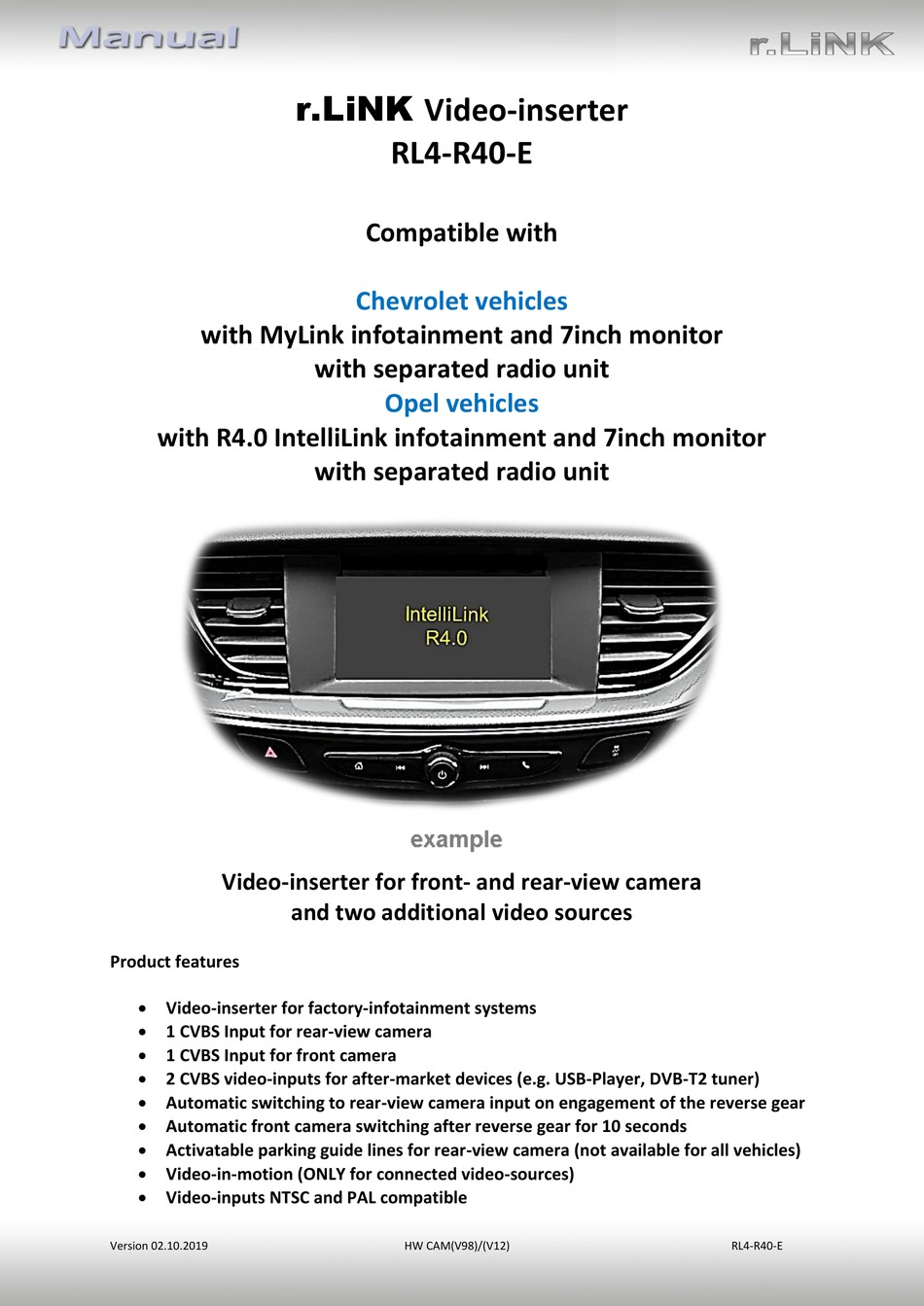

- Page 1 Video-inserter RL4-R40-E Compatible with Chevrolet vehicles with MyLink infotainment and 7inch monitor with separated radio unit Opel vehicles with R4.0 IntelliLink infotainment and 7inch monitor with separated radio unit Video-inserter for front- and rear-view camera and two additional video sources Product features ...
-
Page 2: Table Of Contents
Case 1: Interface receives the reverse gear signal 2.7.3.2. Case 2: Interface does not receive the reverse gear signal 2.8. Connection – external keypad Interface operation 3.1. By infotainment button 3.2. By external keypad Picture settings Specifications Frequently asked questions Technical support Version 02.10.2019 HW CAM(V98)/(V12) RL4-R40-E... -
Page 3: Prior To Installation

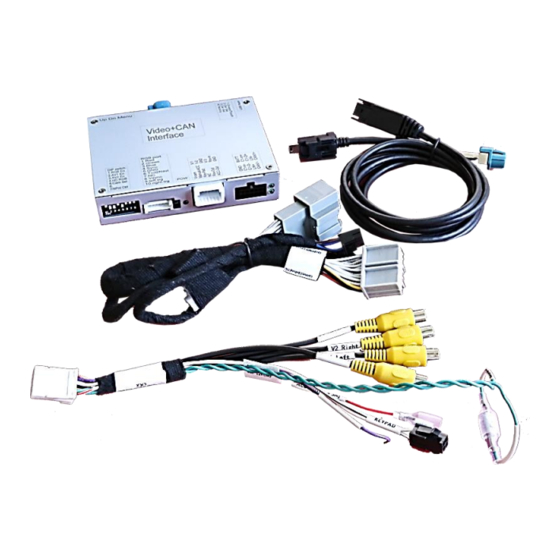

1. Prior to installation Read the manual prior to installation. Technical knowledge is necessary for installation. The place of installation must be free of moisture and away from heat sources. 1.1. Delivery contents Version 02.10.2019 HW CAM(V98)/(V12) RL4-R40-E... -
Page 4: Checking The Interface Compatibility Of Vehicle And Accessories
Displayed guide lines are not available in all vehicles. 1.3. Connectors Video Interface The video-interface converts the video signals of connected after-market sources in a factory monitor compatible picture signal which is inserted in the factory monitor, by using separate trigger options. Version 02.10.2019 HW CAM(V98)/(V12) RL4-R40-E... -
Page 5: Dip-Switch Settings
After each Dip-switch-change a power-reset of the Video interface has to be performed! *The front camera will automatically be switched for 10 seconds after disengaging the reverse gear. See the following chapters for detailed information. Version 02.10.2019 HW CAM(V98)/(V12) RL4-R40-E... -
Page 6: Activating The Front Camera Input (Dip 1)
180° twisted, the setting for dip7 has to be ON. Note: Dips 4 and 8 are out of function and have to be set to OFF. After each Dip-switch-change a power-reset of the Video Interface has to be performed! Version 02.10.2019 HW CAM(V98)/(V12) RL4-R40-E... -
Page 7: Dip - Red
The interface needs a permanent 12V source! 2.1. Place of installation The video interface is designated to be connected behind the vehicle`s head unit. Version 02.10.2019 HW CAM(V98)/(V12) RL4-R40-E... -
Page 8: Connection Scheme
2.2. Connection Scheme Version 02.10.2019 HW CAM(V98)/(V12) RL4-R40-E... -
Page 9: Connection - Picture Signal Cable
HSD+2 connector of the video interface. Connect the female waterblue coloured HSD+2 connector of the picture signal cable to the waterblue coloured male HSD+2 connector of the video interface. Version 02.10.2019 HW CAM(V98)/(V12) RL4-R40-E... -
Page 10: Connection - 20Pin Pnp Harnes
Note: If, after connecting the 10pin Power / CAN cable, no interface LED lightens up while the ignition is turned on, refer to chapter “Analogue power supply for the video interface”. Please carry out the following checks: Version 02.10.2019 HW CAM(V98)/(V12) RL4-R40-E... -
Page 11: Analogue Power Supply
Connect the female 12pin connector of the 12pin interface cable to the male 12pin connector of the video interface. Connect the 12pin interface cable’s purple coloured wire Manual ACC to +12V Ignition power or to +12V S-contact terminal 86s +12V (e.g. glove compartment illumination). Version 02.10.2019 HW CAM(V98)/(V12) RL4-R40-E... -
Page 12: Power Supply Output
Dip 1 ON +12V (max. 3A) when reverse gear is engaged incl. 10 seconds delay after reverse gear is disengaged and +12V by manual switching to front camera by keypad (short press) Dip 1 OFF No function Version 02.10.2019 HW CAM(V98)/(V12) RL4-R40-E... -
Page 13: Connection - Video Sources
Connect the front camera’s video RCA connector to the 12pin interface cable’s female RCA connector „Front V3“. Connect the video RCA of the AV source 1 and 2 to the 12pin interface cable’s female RCA connector “Left (V1)” ”Right (V2)”. Version 02.10.2019 HW CAM(V98)/(V12) RL4-R40-E... -
Page 14: Audio Insertion
(short press) from any image mode. The power supply output gives +12V then, as well (if Dip 1 is set to ON and the front camera input is selected). Attention: A long press of the external keypad push button will switch the interface to the next source. Version 02.10.2019 HW CAM(V98)/(V12) RL4-R40-E... -
Page 15: After-Market Rear-View Camera
The 12 V power supply for the rear-view camera (max 3A) has to be taken from the 12pin interface cabl’s green wire “Reverse-OUT” to avoid an unnecessary, permanent power supply to the camera electronic. Both green cables “Reverse IN” “Reverse OUT” have to remain connected. Version 02.10.2019 HW CAM(V98)/(V12) RL4-R40-E... -
Page 16: Case 2: Interface Does Not Receive The Reverse Gear Signal
Connect the output connector (87) of the relay to the rear-view camera’s power- cable, like you did it to the green “Reverse-IN” cable before. Connect permanent power / 12V to the relay’s input connector (30). Version 02.10.2019 HW CAM(V98)/(V12) RL4-R40-E... -
Page 17: Connection - External Keypad
Connect the keypad’s female 4pin connector to the 12pin interface cable’s male 4pin connector. Note: Even if the switching through several video sources by the keypad mightn’t be required, the keypad’s invisible connection and availability is strongly recommended. Version 02.10.2019 HW CAM(V98)/(V12) RL4-R40-E... -
Page 18: Interface Operation
Each press will switch to the next enabled input. Inputs which are not enabled will be skipped. Switchover by vehicle buttons isn’t possible in all vehicles. In some vehicles the external keypad has to be used. Version 02.10.2019 HW CAM(V98)/(V12) RL4-R40-E... - Page 19 Short press of keypad (only if DIP 1 is set to ON) By short pressing the external keypad, the video interfaces switches from the factory video to the front camera input and back to factory video. Version 02.10.2019 HW CAM(V98)/(V12) RL4-R40-E...
-
Page 20: Picture Settings
Brightness Saturation Position H (horizontal) Position V (vertical) IR-AV1/2 (no function) Guide L/R (no function) UI-CNTRL (guide lines ON/OFF) Size H/V (picture size horizontal/vertical) Note: To adjust the reverse picture settings, engage the reverse gear. Version 02.10.2019 HW CAM(V98)/(V12) RL4-R40-E... -
Page 21: Specifications
7V - 25V Stand-by power drain Power 140mA @12V Video input 0.7V - 1V Video input formats PAL/NTSC Temperature range -40°C to +85°C Dimensions daughter PCB 115 x 25 x 104mm (W x H x D) Version 02.10.2019 HW CAM(V98)/(V12) RL4-R40-E... - Page 22 The grey wire of the 6pin Apply +12V from the reverse light. Use a relay or camera input when reverse cable doesn’t receive the electronics to "clean" reverse gear lamp power. gear is engaged. +12V reverse signal Version 02.10.2019 HW CAM(V98)/(V12) RL4-R40-E...
-
Page 23: Technical Support
Please note that direct technical support is only available for products purchased directly from NavLinkz GmbH. For products bought from other sources, contact your vendor for technical support. NavLinkz GmbH distribution/tech dealer-support Eurotec-Ring 39 D-47445 Moers +49 2841 949970 Email mail@navlinkz.de 10R-03 5384 Made in China Version 02.10.2019 HW CAM(V98)/(V12) RL4-R40-E...
