Summary of Contents for r.LiNK RL2-NBT
Page 1

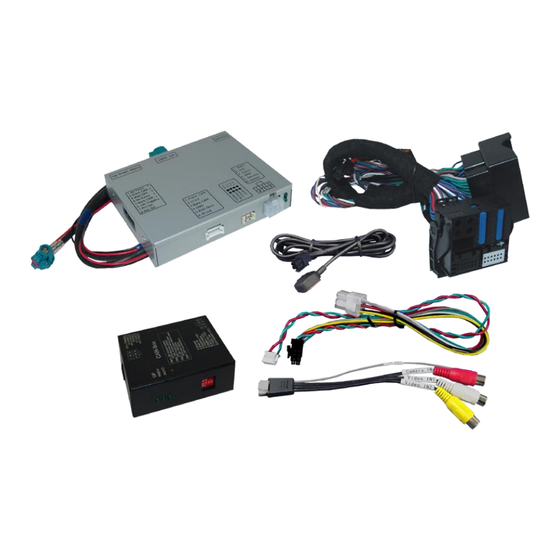

Video-inserter RL2-NBT Compatible with BMW vehicles with Business/Professional NBT navigation systems or radios with 6.5”, 8.8” or 10.2” monitor with 4 + 2pin HSD LVDS connector Video-inserter for rear-view camera and two additional video sources Product features Video-inserter for factory-infotainment systems ...
Take down the serial number of the interface and store this manual for support purposes: ____________________ If the HSD2 image cable of the vehicle harness is too short for the installation, an HSD2 extension can be ordered separately with item number CAB-HSD2-MF100B. Version 26.04.2021 HW CAM(V31)/(V71) RL2-NBT...
Guide lines / PDC If the CAN-box does not receive the required information from the vehicle CAN-bus, neither guide-lines nor PDC will be supported. Video input formats only NTSC Version 26.04.2021 HW CAM(V31)/(V71) RL2-NBT...
The video-interface converts the connected after-market sources video signals to an LVDS signal which is the inserted into the factory monitor on certain trigger options. 1.3.2. CAN-box The CAN-bus box reads digital signals from the CAN-bus and converts them for the video- interface. Version 26.04.2021 HW CAM(V31)/(V71) RL2-NBT...
It is possible to first hot plug through the dip combinations, but if you do not experience any change of picture, retry and disconnected the 6pin power plug of the video-box between every change of the dip setting. Version 26.04.2021 HW CAM(V31)/(V71) RL2-NBT...
Deviation BMW i3: With installation in BMW i3 the PNP cable requires an extention to the video interface, as its head unit is located in the rear of the vehicle. The installation place of the video Interface remains in the front of the vehicle. Version 26.04.2021 HW CAM(V31)/(V71) RL2-NBT...
● Black CAN HIGH Pin 11 ● Yellow CAN LOW Pin 9 No liability for vehicle wire colors and pin definition! Possible changes by the vehicle manufacturer. The given information must be verified by the installer. Version 26.04.2021 HW CAM(V31)/(V71) RL2-NBT...
Connect female 2pin connector of the 4pin cable to the male 8pin MB connector of the factory monitor. Note: If the HSD2 image cable of the vehicle harness is too short for the installation, an HSD2 extension can be ordered separately with item number CAB-HSD2-MF100B. Version 26.04.2021 HW CAM(V31)/(V71) RL2-NBT...
AV-source to the video-interface. Before final installation of the peripheral devices, we recommend a test-run of the interface. Due to changes in the production of the vehicle manufacturer is always the possibility of incompatibility. Version 26.04.2021 HW CAM(V31)/(V71) RL2-NBT...
Note: Before testing, please, don’t forget to shift the Dip 5 of the Video Interface to ON. 2.6.2.1. Video signal connection of rear-view camera Connect the video-RCA of the after-market rear-view camera to the female RCA port of the video-interface which is labeled as CAM. Version 26.04.2021 HW CAM(V31)/(V71) RL2-NBT...
Page 13
Connect Reverselight/Power with Coil (85) and Ground (86) to relay. Connect power of rear-view camera and the green cable (Video Interface side) of 6pin to 8pin cable with relay output (87) Connect continuous battery current to relay input (87) Version 26.04.2021 HW CAM(V31)/(V71) RL2-NBT...
PDC OFFSET of the OSD menu. Note: The OSD menu is only shown when a working video source is connected to the selected video-input of the interface. Version 26.04.2021 HW CAM(V31)/(V71) RL2-NBT...
This interface can only insert video signals into the factory infotainment. If an AV-source is connected, audio insertion must be done by factory audio AUX input or FM-modulator. The inserted video-signal can be activated simultaneously to each audio-mode of the factory infotainment. Version 26.04.2021 HW CAM(V31)/(V71) RL2-NBT...
Page 16
Connection Video Interface and external keypad Connect 4pin female Microfit connector of external keypad to male 4pin Microfit connector of video interface Version 26.04.2021 HW CAM(V31)/(V71) RL2-NBT...
Position V (vertical) Guide CNTRL (ON/OFF) Guide lines for rear-view camera Note: If the CAN-box does not support the very vehicle, the guide-lines cannot be used. PDC function is only available in a few cars. Version 26.04.2021 HW CAM(V31)/(V71) RL2-NBT...
Video input formats NTSC Temperature range -40°C to +85°C Dimensions video-box 113 x 22 x 115 mm (W x H x D) Dimensions CAN-box 88 x 25 x 66 mm (W x H x D) Version 26.04.2021 HW CAM(V31)/(V71) RL2-NBT...
Page 19
Camera input picture fluorescent light which shines Test camera under natural light outside the garage. flickers. directly into the camera. Camera input picture is Protection sticker not Remove protection sticker from lens. bluish. removed from camera lens. Version 26.04.2021 HW CAM(V31)/(V71) RL2-NBT...
Please note that direct technical support is only available for products purchased directly from NavLinkz GmbH. For products bought from other sources, contact your vendor for technical support. NavLinkz GmbH distribution/tech dealer-support Heidberghof 2 D-47495 Rheinberg +49 2843 17595 00 Email mail@navlinkz.de 10R-05 0068 Made in China Version 26.04.2021 HW CAM(V31)/(V71) RL2-NBT...
