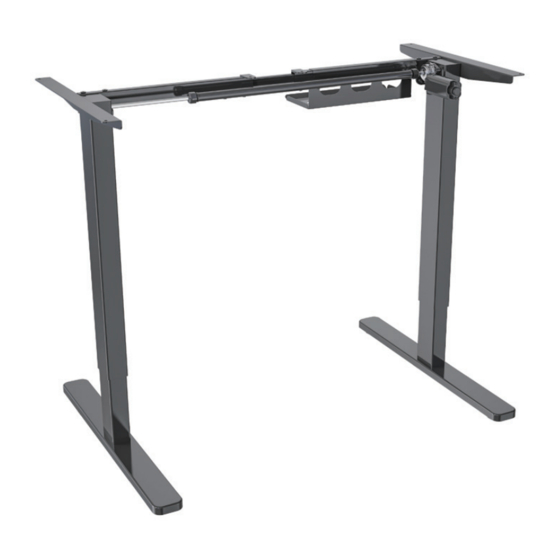

Black Electric Single Motor Desk Frame
Instruction Manual
SKU: DESK-EV00B
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/desk-ev00b
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Vivo DESK-EV00B
Summary of Contents for Vivo DESK-EV00B
- Page 1 Black Electric Single Motor Desk Frame Instruction Manual SKU: DESK-EV00B Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/desk-ev00b GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com...
- Page 2 WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual and do not exceed weight capacity.
- Page 3 ASSEMBLY STEPS STEP 1 Assemble the crossbar ends (4) to the legs (5, 6) using M8x47 bolts (A). Ensure the ends are facing in the same directions as the motor and hex socket, and tighten the bolts using the 5mm Allen wrench (H). Mount the side brackets (3) to the legs, making sure the top is facing away from each crossbar end, using M6x10 bolts (B).
- Page 4 STEP 2 Place the feet (7) on the legs as shown, then insert and tighten M6x12 bolts (C) using the 4mm Allen wrench (H). STEP 3 Insert the crossbar (9) into the crossbar ends.
- Page 5 STEP 4 Screw the foot pads (F) into the feet. Insert M6x12 bolts into the crossbar ends using the 4mm Allen wrench (H). Do not tighten at this time. STEP 5 Loosen the nut on the sync rod (10). Insert the sync rod’s hex shaft into the socket of the non-motorized leg, then extend the rod onto the motor coupling.
- Page 6 STEP 6 Hang the power strip tray (12) over the crossbar. Adjust the frame length to fit the desktop (1) (not included), then secure to the desktop using M5x16 screws with a Phillips screwdriver. Mount the control panel (2) using M4x12 screws, and the control unit (8) using M5x16 screws. Tighten the sync rod nut and previously inserted M6x12 bolts.
- Page 7 STEP 8 Carefully flip the assembled desk right side up and plug the power cord into an AC electrical outlet. If necessary, adjust foot pads to level the desk. The desk is now ready for use. Please refer to the Controller User Guide for operational instructions. CAUTION! Do not exceed desk Keep area of vertical...
- Page 8 - 92% within < 3hr www.vivo-us.com AVG. RESOLUTION TIME : < 15 M (within office hrs) Chat live with an agent! AVG. RESOLUTION TIME : 5M 4S 309-278-5303 (within office hrs) FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com...
