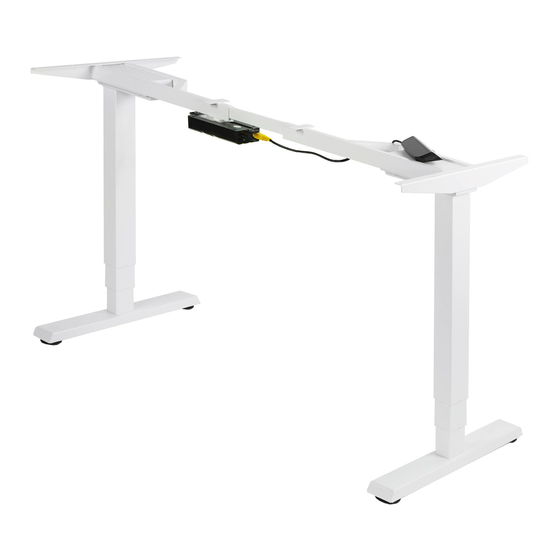

White Electric Dual Motor Desk Frame
Instruction Manual
SKU: DESK-EV02RW
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/desk-ev02rw
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303
Advertisement
Table of Contents
Related Manuals for Vivo DESK-EV02RW
Summary of Contents for Vivo DESK-EV02RW
- Page 1 White Electric Dual Motor Desk Frame Instruction Manual SKU: DESK-EV02RW Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/desk-ev02rw GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com...
-
Page 2: Electrical Safety Instructions
WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual and do not exceed weight capacity. -
Page 3: Tools Needed
TOOLS NEEDED Phillips Screwdriver Level Drill DO NOT EXCEED WEIGHT CAPACITY. 275lbs 176lbs Failure to do so may result in serious injury. (125kg) (80kg) NOTE: If the desk is unplugged, it may cause the leg to PLUGGED IN UNPLUGGED slip to lower heights if the desk is overweight. ASSEMBLY STEPS STEP 1 Insert anti-vibration pads (S-G) into the mounting holes on top of the telescopic crossbar (A) and side... - Page 4 STEP 2 Place the lifting columns (C) into the telescopic crossbar (A) and secure using M6x10 bolts (S-A) and the Allen wrench (S-H). Assemble the feet (D) to the columns using M6x16 bolts (S-B) and the Allen wrench (S-H). STEP 3 Loosen the set screws in the telescopic crossbar (A) using the Allen wrench (S-H), then extend the crossbar length to fit the...
- Page 5 STEP 4 Drill 3/8” (10mm) deep pilot holes using a 3/32” (or 3mm) drill bit. Secure the frame to the desktop using 3/4” screws (S-C) with a Phillips screwdriver. STEP 5 Place the control panel (H) at the desired location and mark drilling locations with a pencil. Drill 5/8" (16mm) deep pilot holes under the desktop with a 5/64"...
- Page 6 STEP 6 Attach the fixing plate (E) to the telescopic crossbar (A) using M4x6 bolts (S-E) with a Phillips screwdriver. Slide the control unit (F) onto the fixing plate. STEP 7 Connect motor cables, control panel (H) and power cable (G) to the control unit (F). Determine the locations for the cable clips (S-F) and drill 5/8"...
- Page 7 STEP 8 Connect the power cable (G) to a wall outlet to power on desk for operation. Each foot pad can be adjusted independently for fine tuning. Slightly turn the foot pad to lower or raise the base. Use a level to ensure the desktop is even. CAUTION! Do not exceed desk Keep area of vertical...
- Page 8 - 92% within < 3hr www.vivo-us.com AVG. RESOLUTION TIME : < 15 M (within office hrs) Chat live with an agent! 309-278-5303 AVG. RESOLUTION TIME : 5M 4S (within office hrs) FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com...
