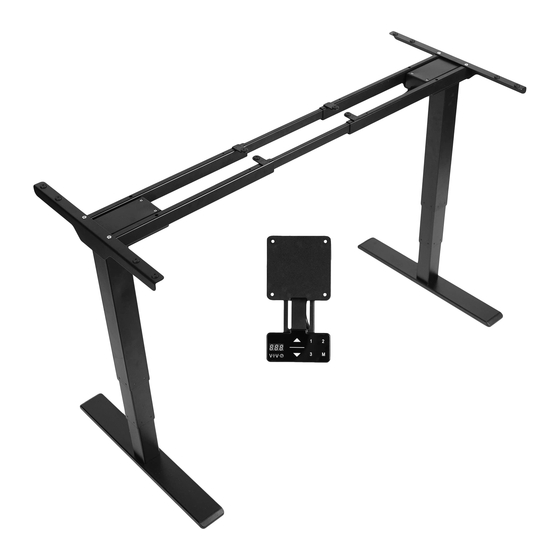

Black Electric Dual Motor Desk Frame
Instruction Manual
SKU: DESK-EV02RB
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/desk-ev02rb
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Vivo DESK-EV02RB
Summary of Contents for Vivo DESK-EV02RB
- Page 1 Black Electric Dual Motor Desk Frame Instruction Manual SKU: DESK-EV02RB Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/desk-ev02rb GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com...
-
Page 2: Electrical Safety Instructions
WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual and do not exceed weight capacity. - Page 3 DO NOT EXCEED WEIGHT CAPACITY. 275lbs 176lbs Failure to do so may result in serious injury. (125kg) (80kg) NOTE: If the desk is unplugged, it may cause the leg to PLUGGED IN UNPLUGGED slip to lower heights if the desk is overweight. WARNING: CHOKING HAZARD SMALL PARTS - NOT FOR CHILDREN UNDER 3 YEARS.
-
Page 4: Assembly Steps
STEP 2 ASSEMBLY STEPS STEP 1 Slide Left Crossbars (A) and Right Side (B) over Middle Crossbars (C) and tighten set screws using 4mm Allen Wrench (T-G). STEP 2 Mount Side Brackets (D) to frame assembly using M6x20 Flat Head Screws (S-A) and 4mm Allen Wrench (T-G). - Page 5 STEP 3 Place Legs (E) upside down on frame assembly and secure using M6x20 Screws (S-B) and 4mm Allen Wrench (T-G).
- Page 6 STEP 4 Mount Feet (F) to Legs (E) using M6x30 Screws (S-C) and 4mm Allen Wrench (T-G). STEP 5 Place frame assembly upside down on desktop. Use 4mm Allen Wrench (T-G) to loosen set screws on frame assembly and adjust to fit the desktop. Retighten set screws using 4mm Allen Wrench (T-G) and attach frame assembly and Control Unit (G) to desktop using ST4.2x19 Screws (S-F).
- Page 7 STEP 6 Connect Legs (E), Control Panel (H), and Power Cable (I) to Control Unit (G). Manage cables using Cable Clips (S-E). CAUTION! Do not exceed desk Keep area of vertical Keep weight on desk Leave enough slack in weight limit. motion free of balanced for correct cables to allow for full...
