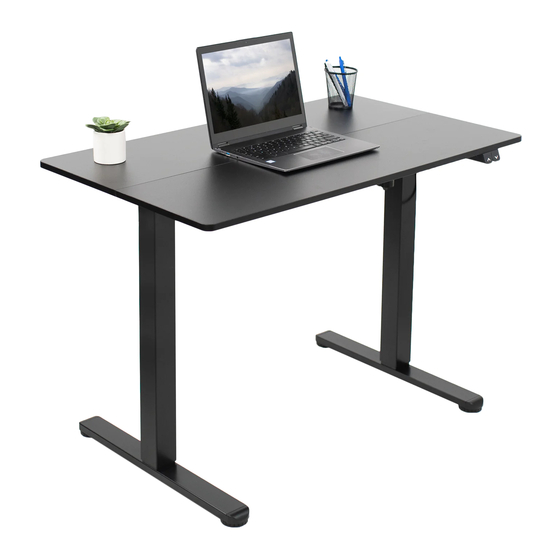

Black 40" x 24" electric desk

Advertisement

Quick Links

Black 40" x 24" Electric Desk
Instruction Manual
SKU: DESK-EP40TB
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/desk-ep40tb
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DESK-EP40TB and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Vivo DESK-EP40TB

  • Page 1 Black 40" x 24" Electric Desk Instruction Manual SKU: DESK-EP40TB Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/desk-ep40tb GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com...
  • Page 2 WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual and do not exceed weight capacity.
  • Page 3 ASSEMBLY STEPS STEP 1 Assemble Crossbar (B) to Leg (E) and Motorized Leg (F) using M6x11mm Screws (S-B) and 5mm Allen Wrench (T-B). STEP 2 Connect Foot (G) to underside of Leg (E) and Motorized Leg (F) using M6x35mm Screws (S-A) and 5mm Allen Wrench (T-B).
  • Page 4 STEP 3 Return assembly upright and attach Side Brackets (C) to side of Leg (E) and Motorized Leg (F) using M6x11mm Screws (S-B) and 5mm Allen Wrench (T-B). STEP 4 Loosen the knob on the Sync Rod (D) and extend the hex shaft. Insert hex shaft into the Leg (E), making sure the metal retaining ring makes contact with the Leg (E).
  • Page 5 STEP 5 Place Wooden Dowels (S-D) into pre-drilled holes in Desktop (A), then push pieces together to form one desktop. Secure using Connecting Plate (H), M5x16mm Screws (S-C), and a Phillips screwdriver. Flip desk assembly over and secure to assembled Desktop (A) using M5x16mm Screws (S-C) and a Phillips screwdriver.
  • Page 6 STEP 6 Connect Controller (K) to Desktop (A) using M5x16mm Screws (S-C) and a Phillips screwdriver. Connect cable from Motorized Leg (F) to Controller (H), as shown below. Connect AC Adapter (I) to Controller (H). Secure cables to Desktop (A) using Cable Clips (M).
  • Page 7 CONTROLLER UP ARROW RESET PROCESS Press and hold to raise desk height. Press and hold the DOWN ARROW for at Release button when desired height is least 5 seconds until the leg reaches the achieved. lowest height setting and then moves DOWN ARROW back up slightly.
  • Page 8 AVG. RESPONSE TIME (within office hrs) - 23% within < 15m - 38% within < 30m - 61% within < 1hr - 83% within < 2hr - 92% within < 3hr FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com...
