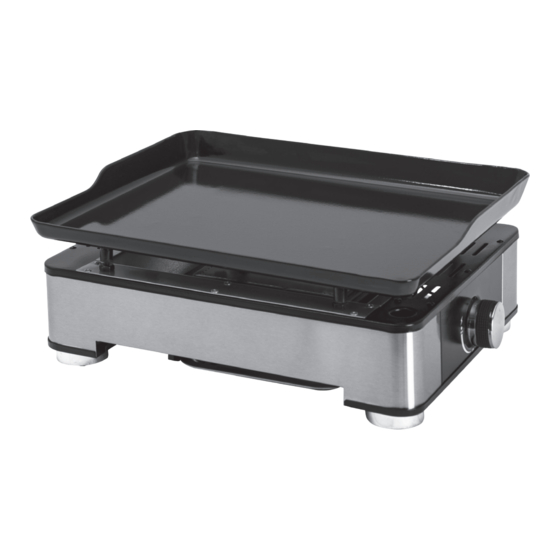

PLANCHA470
PORTABLE BBQ
Model No. GM152-155
Portable, tabletop design is ideal for camping or
alfresco cooking
9.7MJ/hr rectangular-shaped stainless steel burner
provides even heat distribution
Hard-wearing 430 grade stainless-steel body with
powder coat
Important: Retain these instructions for future use.
Gasmate® is a registered trademark of: Sitro Group Australia Pty Ltd
www.gasmate.com.au
Spacious 470 x 360mm enamel coated hotplate
Piezo ignition for effortless lighting
Easy access removable drip tray
Assembled Size: 485 W x 195 H x 380 D (mm)
Supplied with hose and regulator so it's ready to use
Aber Living, Hamilton, N.Z. www.gasmate.co.nz
5310-04/21
Advertisement
Table of Contents
Related Manuals for Gasmate PLANCHA470
Summary of Contents for Gasmate PLANCHA470
- Page 1 Hard-wearing 430 grade stainless-steel body with Supplied with hose and regulator so it’s ready to use powder coat Important: Retain these instructions for future use. Gasmate® is a registered trademark of: Sitro Group Australia Pty Ltd www.gasmate.com.au Aber Living, Hamilton, N.Z. www.gasmate.co.nz 5310-04/21...
-
Page 2: Read Me First
READ ME FIRST GAS LEAK TESTING It is important that you leak test the BBQ before first use and every time the gas cylinder is refilled and reconnected to the BBQ. To Complete Leak Test • Make sure all the control knobs are OFF. •... -
Page 3: General Information
GENERAL INFORMATION Specifications Barbecue specifications can be found on the data label IMPORTANT attached to the barbecue body. Read these instructions carefully prior to use. Hose & Regulator Safety Familiarise yourself with the appliance before connecting it to it’s gas container. Keep these The regulator and hose assembly supplied with the instructions for future reference. -
Page 4: For Your Safety
GENERAL INFORMATION FOR YOUR SAFETY • Never lean over cooking surface when lighting. • Never alter or modify the regulator or gas supply Failure to comply with these instructions could assembly. result in a fire or explosion which could cause serious bodily injury, death or property damage. - Page 5 Location of your Barbecue DO NOT use your barbecue in garages, porches, sheds, breezeways, or other enclosed areas. Your barbecue is to be used OUTDOORS. The barbecue is not intended to be installed in or on recreational vehicles and/or boats and should not be placed under any surface that will burn.
-
Page 6: Exploded Diagram
EXPLODED DIAGRAM PARTS LIST HARDWARE Part Description Part Description M4x12 Screws Feet Body M6 Nuts Hotplate M6x30 Screws Drip tray ASSEMBLY INSTRUCTIONS Remove any transit protection material. Remove all contents from the carton packaging. Make sure all parts are present before attempting assembly. Once the BBQ is fully assembled, go back and check to make certain all the bolts are secure. - Page 7 STEP 1 Attach the 4 x feet (1) to the Plancha body (2) using 1x M4x12 screw (A) per foot. STEP 2 Attach 2x M6 nuts (C) to 2 x M6x30 screws (B), and screw into the underside of the hotplate (3) at the back.
- Page 8 STEP 3 Slide the drip tray (4) into the supports at the front of the Plancha body (2).
-
Page 9: Lighting Procedure
GENERAL INFORMATION LIGHTING PROCEDURE CONNECTING & DISCONNECTING Burner Operation & Ignition System Check TO GAS SOURCE 1. Turn the control knob clockwise to “OFF” position. Familiarise yourself with the general information and 2. With cylinder valve in ‘CLOSE’ position push and turn safety guidelines located at the front of this manual. -
Page 10: Operation
OPERATION BURNER OPERATION & IGNITION SYSTEM CHECK Problem Possible Reason Solution Control knob is closed Turn knob to high when lighting Burner will not ignite Igniter is faulty Use a long barbecue match inserted through the hole on under side of barbecue Burner has gone out Check that the gas bottle is not empty and re- ignite the burner... -
Page 11: Care And Maintenance
CARE & MAINTENANCE Cleaning the Cooking Surface As with all appliances, proper care and maintenance will keep them in top operating condition and prolong After cooking, turn burner control to ‘OFF’ and let their life. Your new gas barbecue is no exception. By barbecue cool before attempting to clean the hotplate. -
Page 12: Safe Appliance Locations
SAFE APPLIANCE LOCATIONS This appliance shall only be used in an above ground open-air situation with natural ventilation, without stagnant areas, where gas leakage and products of combustion are rapidly dispersed by wind and natural convection. Any enclosure in which the appliance is used shall comply with the following: An enclosure with walls on all sides, but at least one permanent opening at ground level and no overhead cover. -
Page 14: Limited Warranty
1 YEAR LIMITED WARRANTY Aber Living warrants the purchaser of this product against defects in workmanship and material, for a period of up to 12 months from the date of purchase. The warranty is non-transferable and becomes void if used for commercial or rental purposes.
