Delfield F13BR36 Specifications

Short Form Specifications
Top is constructed of one-piece 16-gauge stainless steel, with integral 2.12"
(5.4 cm) square nosing on front and 10.4" (26.3 cm) full length raised refrig-
erated syrup rail. Refrigerated rail is furnished with syrup pump, chocolate
pump and fruit jars. Top to be insulated and have raised rim opening(s) provid-
ed with cover. Cover(s) are insulated, folding and removable.
Interior is constructed of 22-gauge stainless steel. Liner is insulated with
2.5" (6.4 cm) foamed-in-place polyurethane. Unit has a cold wall refriger-
ation system provided with adjustable expansion valves. Rail has an
adjustable evaporator pressure regulator valve located in the 6" (15.2 cm)
mechanical area at right end. Unit is designed to maintain 0°F (-18°C) to
5°F (-15°C) in the tank and 33°F (1°C) to 40°F (4°C) in the rail.
Exterior front has 22-gauge stainless steel front panel(s). Exterior ends are
constructed of 18-gauge galvanized steel.
Electrical connections are 115 volt, 60 Hertz, single phase.
Unit is mounted on 6.13" (15.6 cm) high adjustable stainless steel legs.
Refrigerant System Components — HFC-404A.
Optional Accessories and Modifications
505B Stainless steel back
906A Stainless steel end
505F Laminate facing
505A Laminate back
906E Laminate end
120F Drain with gate valve for rail
®
The Delfield Company, P.O. Box 470, Mt Pleasant, MI 48804-0470, U.S.A. • (800) 733-8821 • Fax (800) 669-0619 • www.delfield.com
Delfield reserves the right to make changes in design or specifications without prior notice. ©2001 The Delfield Company. All rights reserved. Printed in U.S.A.

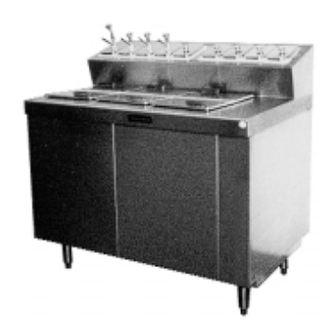

31.5" (80cm) Deep Remote Low Temp, Ice Cream Cabinets With Syrup Rail
PROJECT
ITEM #
QUANTITY DATE
APPROVAL
F13BR
Model 13BR48
Built to NSF7 standards.
