Delfield UC4532N Specifications

UC4532N UNdERCOUNTER
Front-Breathing Undercounter Freezers
MOdELS:
 UC4532N_ Single_section_freezer_
_ Undercounter_with_a_door_

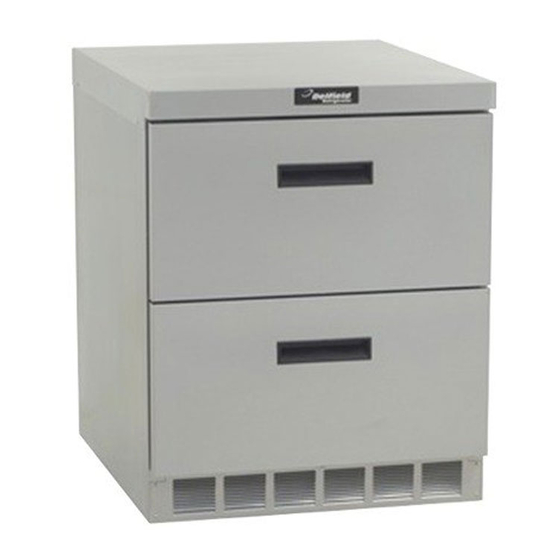

Model UCd4532N
SPECIFICATIONS
Exterior top_is_one-piece,_22-gauge_stainless_steel_with_
integral_square_nosing_on_the_front.
Exterior back and bottom_are_two-piece_24-gauge_
galvanized_steel._
Exterior ends_are_stainless_steel.
Interior sides of door models_are_thermoformed_ABS_
plastic_with_integral_shelves_supports._Interior_back_is_one-
piece_22-gauge_stainless_steel.__Interior_bottom_and_top_
are_thermoforned_ABS_plastic.__Base_is_fully_insulated_with_
high-density_foamed_in_place_polyurethane.
Refrigeration_system_uses_HFC-404A_refrigerant._
Compressor_is_1/5_H.P.,_with_condenser_coil_and_
condensate_evaporator_mounted_on_rear_of_the_cabinet._
Evaporator_coil_are_located_on_the_interior_rear_wall_of_
 UCd4532N_
_
STANdARd FEATURES
•_ All_4400_and_4500_Series_units_are_100%_front_
breathing,_which_allows_the_unit_to_be_pushed_against_
a_wall_or_built_into_a_cabinet_or_an_existing_line_up
•_ Durable,_rugged_stainless_steel_sides,_top_and_front
•_ Features_Delfield's_exclusive_ABS_interior_(on_sides).__
ABS_is_extremely_durable_-_it_won't_dent,_chip_or_
corrode_and_is_backed_by_a_limited_lifetime_warranty
•_ Heavy_duty_self-closing_hinges
•_ "D"_prefix_models_feature_Delfield's_exclusive_new_
drawer_system.__Drawers_are_backed_by_a_10-year_
warranty_on_the_track_assembly
•_ Environmentally_friendly_R404A_refrigerant
•_ High_density_foamed_in_place_polyurethane_keeps_
energy_costs_low
•_ Black_recessed_quick_grip_handle
•_ Standard_on_2"_casters_for_easy_cleaning_and_
installation
•_ 60-cycle_single_phase_electrical_system
•_ 7'_cord_and_plug_supplied
•__ Cord_spring_relief_-_prevents_cord_rollover
•_ One_epoxy_coated_wire_shelf_standard,_installed_per_
door_section
•__ ACT_solid_state_electronic_control
•_ One_year_parts_and_90_day_labor_standard_warranty._
the_cabinet._Refrigerant_flow_is_controlled_by_a_capillary_
tube._Cabinet_maintains_an_interior_cabinet_temperature_of_
-5°F_to_0°F_(-20°C_to_-18°C).
Electrical connections_are_115_volt,_60_Hertz,_single_
phase._Unit_has_a_7'_(2.1m)_long_electrical_cord_and_NEMA_
5-15P_plug.
Casters: Equipment_is_mounted_on_2"_(5.08cm)_diameter_
front_locking_plate_casters.__2.5"_(6.35cm)_ride_height.
doors_have_a_24-gauge_stainless_steel_exterior,_with_
thermoformed_ABS_plastic_interior_liner._Cabinet_of_door_
models_has_one_adjustable_epoxy-coated_wire_shelf.
980_S._Isabella_Road Phone:_800-733-8948
Mt._Pleasant,_MI_48858 Fax:_800-669-0619
www.delfield.com Email:_info@delfield.com
Project_ __________________________
Item_____________________________
Quantity_ _________________________
CSI_Section_11400
Single_section_freezer_
Undercounter_with_drawers
OPTIONS ANd ACCESSORIES
 Flat_lift_off_cover
18"_wide_single_tier_overshelf

Stainless_steel_finish_on_back

Plastic_laminate_on_front

Additional_wire_shelves

 Door_lock
Exterior_thermometer

Interior_lights

Glass_door(s)

*220V/50_Hertz_electrical_system

____*_ I nclusion_of_this_option_will_alter_electrical_
specifications_of_the_unit.
drawers_have_a_24-gauge_stainless_steel_exterior_
with_thermoformed_ABS_plastic_interior_liner._Drawer_
frames_are_12-gauge_stainless_steel.__Drawer_slides_are_
11-gauge_stainless_steel_with_Delrin_bearings._Drawer_
units_have_two_drawers._Top_drawer_holds_one_12"_x_
20"_(30.5cm_x_50.8cm_x_10.1cm)_and_three_1/6_size_
4"-6"_deep_pans.__Bottom_drawer_holds_one_12"_x_20"_
and_three_1/6_size_4"_deep_pans.__Pans_are_supplied_
by_others.
Approval__________________
Date_ _ ___________________
