Delfield F13BC44 Specifications

Short Form Specifications
Top is constructed of one-piece 16-gauge stainless steel, with integral 2.12"
(5.4 cm) square nosing on front and 10.4" (26.3 cm) full length raised
refrigerated syrup rail. Refrigerated rail is furnished with syrup pumps,
chocolate pump and fruit jars. Top to be insulated and have raised rim open-
ing(s) provided with cover. Cover(s) are insulated, folding and removable.
Interior is constructed of 22-gauge stainless steel. Liner is insulated with 2.5"
(6.4 cm) foamed-in-place polyurethane. Unit has a cold wall refrigeration sys-
tem and is supplied with a low pressure control for the tank and an evaporator
pressure regulating valve for the rail. Unit is designed to maintain 0°F (-18°C)
to 5° F (-15°C) in the tank and 33°F (1°C) to 40°F (4°C) in the rail.
Exterior front has 22-gauge stainless steel front panel(s). Exterior ends
are constructed of 18-gauge galvanized steel. Unit has condensing unit on
right end of cabinet and wired with cord and plug. Housing for condens-
ing unit has a louvered front panel.
Electrical connections are 115 volt, 60 Hertz, single phase.
Unit is mounted on on 6.13" (15.6 cm) high adjustable stainless steel legs.
Optional Accessories and Modifications
505B Stainless steel back
906A Stainless steel end
505F Laminate facing
505A Laminate back
906E Laminate end
717M Sink and dipperwell (consult factory)
717N Dipperwell
717O Sink (consult factory)
120F Drain with gate valve for rail
213 *220V/50 cycle electrical
*Inclusion of this option will alter
electrical specifications.
®
The Delfield Company, P.O. Box 470, Mt Pleasant, MI 48804-0470, U.S.A. • (800) 733-8821 • Fax (800) 669-0619 • www.delfield.com
Delfield reserves the right to make changes in design or specifications without prior notice. ©2001 The Delfield Company. All rights reserved. Printed in U.S.A.

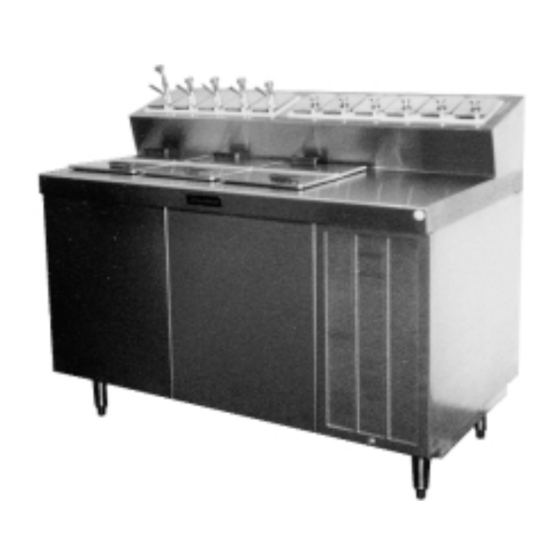

31.5" (80cm) Deep Self-Contained Low Temp, Ice Cream Cabinets with Syrup Rail
PROJECT
ITEM #
QUANTITY DATE
APPROVAL
Model F13BC56
Built to NSF7 standards.
F13BC
