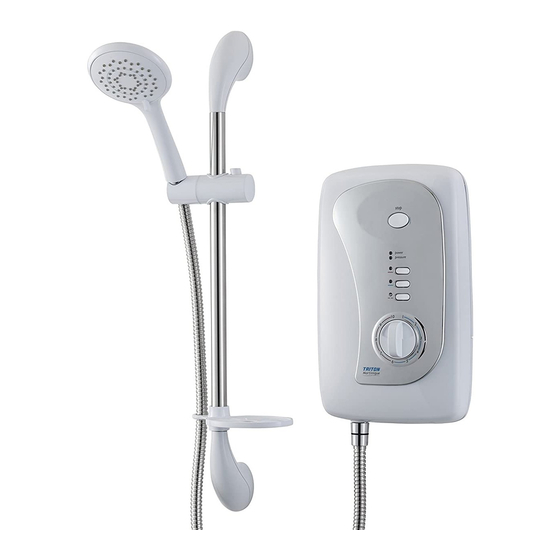

Electric shower

Advertisement

Quick Links

Bezique
electric
shower
power
low
pressure
Installation and
operating
instructions
I
nstallers please note these InstructIons are to be left wIth the user
2180225L
March 2006

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Bezique and is the answer not in the manual?

Questions and answers

Summary of Contents for Triton Bezique

  • Page 1 Bezique electric shower power pressure Installation and operating instructions nstallers please note these InstructIons are to be left wIth the user 2180225L March 2006...
  • Page 2: Table Of Contents

    Fault finding Guarantee, service policy, etc. rear cover To check the product suitability for commercial and multiple installations, please contact Triton’s specification advisory service before installation. Telephone: +44 (0) 24 7632 5491 Facsimile: +44 (0) 24 7632 4564 E mail: technical@triton.plc.uk...
  • Page 3: Important Safety Information

    Products manufactured by Triton are safe and without risk provided they are installed, used and maintained in good working order in accordance with our instructions and recommendations. u WARNING: Do not operate shower if frozen, or suspected of being frozen. It must thaw out before using.
  • Page 4: Introduction

    This book contains all the necessary fitting and ImpoRtANt: When first installed the operating instructions for your Triton bezique unit will be empty. It is essential the unit electric shower. Please read them carefully. should contain water before the elements The shower installation must be carried out by a are switched on.
  • Page 5: Key To Main Components

    Bezique KEY TO maiN COmPONENTS Fig. NOTE: Not all wiring shown for reasons of clarity Inside unit (fig.1) Top cable entry 2. bottom pipe entry 3. Rear pipe entry area 4. Rear cable entry area 5. Wall screw fixing 6. Terminal block 7. Power PCb 8.
  • Page 6: Electrical Requirements 4

    80A or above and that it has a spare fuse way which will Shepperton Park, take the fuse or MCb necessary for the Triton Road, Nuneaton, shower (fig.). Warwickshire, CV11 4NR 4.1 If your consumer unit has a rating below...
  • Page 7 Bezique parts of other appliances and services in the should be placed so that it is not possible room in which the shower is to be installed, to touch the switch body while standing to conform to current IEE regulations.
  • Page 8: Water Requirements

    Bezique WaTEr rEquirEmENTS Mains electric supply (via double pole switch) The installation must be in accordance with Water Regulations/bylaws. To guarantee activation of the heating elements, the shower must be connected to a mains water Double supply with a minimum running pressure of...
  • Page 9: Siting Of The Shower

    Bezique SiTiNG Of THE SHOWEr WARNING! ImpoRtANt: If installing onto a tiled wall the shower must not be positioned always mount the unit on the surface of the where it will be subjected to tiles. nEVER tile up to the unit. freezing conditions.
  • Page 10: Fitting The Shower To The Wall 8

    Bezique fiTTiNG THE SHOWEr TO THE Wall Fig. WARNING! check there are no hidden cables or pipes before drilling holes for wall plugs. use great care when using power tools near water. the use of a residual current device (Rcd) is recommended. Note: The control knob is an integral part of the cover —...
  • Page 11 Bezique After choosing the site for the shower, use the remove backplate as a template and mark the two fixing Fig.0 holes (fig.). Drill and plug to suit the fixing screws supplied. (The wall plugs provided are suitable for most brick walls —...
  • Page 12: Plumbing Connections

    Bezique PlumBiNG CONNECTiONS WARNING! Plumbing to be carried out before wiring the outlet of the shower acts as a DO nOT use jointing compounds on any pipe vent and must Not be connected to fittings for the installation. anything other than the hose and DO nOT solder fittings near the shower unit showerhead supplied.
  • Page 13: Electrical Connections

    Bezique ElECTriCal CONNECTiONS Fig. SWItch oFF thE ElEctRIcIty SUPPly At thE mAInS. Fig. shows a schematic wiring diagram. The cable entry points are shown in fig.. The cable can be surface clipped, hidden or via 20mm conduit. Note: Conduit entry can only be from rear.
  • Page 14: Commissioning 12

    Bezique COmmiSSiONiNG Fig. WARNING! before normal operation of the shower, it is essential the following Valve commissioning procedure is spindle completed correctly. At this stage, temporarily fit the cover to carry out the commissioning procedure. The first operation of the shower should flush...
  • Page 15 Bezique Turn on the water supply to the shower at the isolating stopvalve. Switch on the electricity Fig. supply to the shower at the isolating switch. Wait until water starts to flow from the flexible hose. Slowly rotate the temperature control fully...
  • Page 16: Replacing The Cover

    Bezique rEPlaCiNG THE COVEr Fig.0 ImpoRtANt: Before finally fitting the cover, the following steps must be taken: a. check plumbing connections are Valve watertight. spindle b. check terminal block screws are fully tightened. c. make sure the pipe and cable entering the unit do not prevent the cover locating correctly to the backplate.
  • Page 17: Fitting The Riser Rail 15

    Bezique fiTTiNG THE riSEr rail Fig. Fig. WARNING! check there are no hidden cables or pipes before drilling holes for wall plugs. use great care when using power tools near water. the use of a residual current device (Rcd) is recommended. Decide the position for the rail on the wall within the shower area.
  • Page 18: Fitting The Hose And Sprayehead

    Bezique Place the rail onto the installed lower bracket. Fig. Replace the upper bracket onto the rail and Fig. secure the bracket to the wall with the screws supplied (fig.). Place a trim cover onto each bracket. Make sure the large tab at the narrow end of the trim cover engages into the slot between the rail and bracket (fig.) before pushing and clicking the...
  • Page 19: Operating The Shower 17

    Bezique OPEraTiNG THE SHOWEr Fig. WARNING! before normal operation of the shower, it is essential that the commissioning procedure has been completed correctly. Stop button When the electricity supply to the shower is switched on at the isolating switch, the POWER indicator will light.
  • Page 20 Bezique To adjust the shower temperature WARNING! The water temperature is altered by increasing or decreasing the flow rate of the water through After any servicing of mains water the shower via the temperature control (fig.). supply, always make sure the unit is started on cold in order to purge After finding a suitable showering temperature, any air in the pipework.
  • Page 21: Operating Functions

    Bezique OPEraTiNG fuNCTiONS Fig. Power on indicator (fig.34) When the electricity supply to the shower is switched on at the isolating switch, the POWER indicator will light. low pressure indicator (fig.34) If this indicator lights, this means the water pressure has fallen below the minimum required...
  • Page 22: Adjusting The Showerhead

    Bezique aDJuSTiNG THE SHOWErHEaD Fig. Your shower is supplied with a five position showerhead, with a rub clean face. Five showerhead patterns are available (fig.). Adjust the spray pattern by turning the bezel on the showerhead in either direction until the desired pattern is obtained.
  • Page 23: Cleaning The Showerhead

    Bezique ClEaNiNG THE SHOWErHEaD Fig. before cleaning, turn off the unit at the isolation Sprayplate switch to avoid the shower being accidentally switched on. IT IS IMPORTAnT TO KEEP THE SHOWERHEAD CLEAn TO MAInTAIn THE PERFORMAnCE OF THE SHOWER. The hardness of the water will determine the frequency of cleaning.
  • Page 24: Cleaning The Inlet Filter

    Bezique iNSTruCTiONS fOr iNSTallErS aND SErViCE ENGiNEErS ONlY ClEaNiNG THE iNlET filTEr Fig. It is recommended that the filter is periodically cleaned in order to maintain the performance of the shower. It is essential that this operation is carried out by a competent person. SWItch oFF thE ElEctRIcIty SUPPly At...
  • Page 25: Spare Parts 23

    Bezique SParE ParTS ref Description Part No Power PCb 7073333 Terminal block & wires 9.5kW 82200870 10.5kW 82200850 Heater can assembly 9.5kW 84500290 10.5kW 84500670 Stabiliser valve assembly 9.5kW 82600870 10.5kW 82200850 Solenoid valve assembly 83304130 Thermal cut-out 22009860 PRD & ‘O’ ring...
  • Page 26 Bezique SParE ParTS r ef Description Part No 11. 5 mode showerhead 22010980 12. Wall bracket 83306160 1 3. Showerhead holder 83306190 14. Riser rail 7042409 15. Soap dish 22008960 1 6. Flexible hose 28100080...
  • Page 27: Fault Finding 25

    Bezique faulT fiNDiNG ImpoRtANt: Switch oFF the electricity at the mains supply and remove the circuit fuse before attempting any fault finding inside the unit. Problem/Symptom Cause action/Cure 1 Shower 1.1 Interrupted power 1.1.1 blown fuse or circuit breaker. Check inoperable, no water supply.
  • Page 28 When fitting a new PRD, follow the commissioning procedure. It is advised all electrical maintenance/repairs to the shower should be carried out by a suitably qualified person. In the unlikely event of a fault occurring please contact triton customer service. do not remove the shower from the installation.
  • Page 29 Bezique...
  • Page 30 Bezique...
  • Page 31 Bezique...
  • Page 32 Replacement parts policy and/or wall brackets, isolating switches, electrical cable, fuses and/or circuit breakers or Availability: It is the policy of Triton to maintain any other accessories installed at the same time. availability of parts for the current range of...
