Triton ZANTE 4 Manual

Electric shower
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

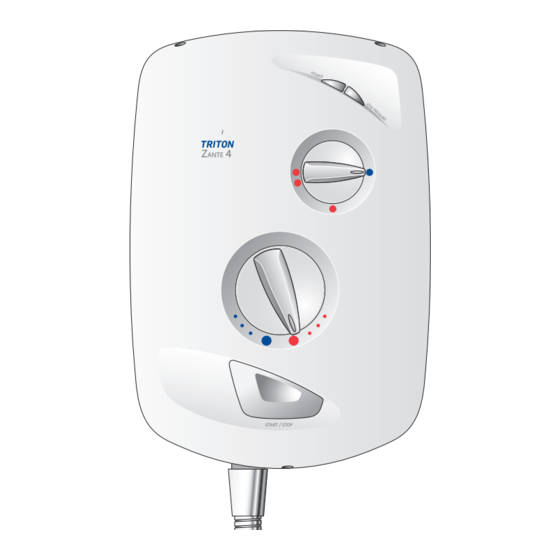

ZANTE 4
electric shower
REGISTER ONLINE
ENTER A PRIZE DRAW
WIN
£100
LOVE2SHOP VOUCHERS
VISIT OUR WEBSITE TODAY
TRITONSHOWERS.CO.UK/REGISTER
PRODUCT REGISTRATION IS ONLY AVAILABLE
THIS OFFER IS NOT VALID OUTSIDE THE UK
TO UNITS PURCHASED & INSTALLED IN THE UK
FOR YOUR SERVICE REFERENCE
NOTE DOWN THE PRODUCT CODE BELOW
(FROM THE FRONT OR TOP OF THE BOX)
ALTERNATIVELY REGISTER BY TEL: 024 7637 8321
INSTALLATION AND OPERATING INSTRUCTIONS
Please read this book thoroughly and familiarise yourself with all instructions before commencing
installation and keep it for future reference.
The shower installation MUST be carried out by a suitably qualified person, in the sequence of
this instruction book.
IMPORTANT SAFETY ADVICE
The shower unit MUST BE switched off at the
isolating switch when not in use. This is a
safety procedure recommended for all
electrical appliances.
The showerhead and hose supplied with this
product are a safety critical part of your shower.
Failure to use genuine Triton parts may cause
injury and invalidate your guarantee.
2181522C - November 2020
Z
4
ANTE
START / STOP

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ZANTE 4 and is the answer not in the manual?

Questions and answers

Related Manuals for Triton ZANTE 4

Summary of Contents for Triton ZANTE 4

  • Page 1 The showerhead and hose supplied with this product are a safety critical part of your shower. Failure to use genuine Triton parts may cause injury and invalidate your guarantee. ALTERNATIVELY REGISTER BY TEL: 024 7637 8321 INSTALLATION AND OPERATING INSTRUCTIONS Please read this book thoroughly and familiarise yourself with all instructions before commencing installation and keep it for future reference.

  • Page 2: Important Safety Information & General Guidance Notes

    Zante 4 electric shower INTRODUCTION - PLEASE READ PLEASE READ THIS IMPORTANT SAFETY INFORMATION Products manufactured by Triton are safe and without risk provided they are installed, used and maintained in good working order in accordance with our instructions and recommendations.
  • Page 3 DO NOT operate the shower if water ceases to ow during use or if water has entered inside the unit because of an incorrectly tted cover. IMPORTANT - PLEASE READ THESE Zante 4 electric shower WARNING: If restarting the shower immediately after stopping, be aware that a slug of GENERAL GUIDANCE NOTES BEFORE PROCEEDING hot water will be expelled for the rst few seconds.

  • Page 4: Specifications

    To check the product suitability for commercial and multiple installations, please contact Triton’s speci cation advisory service before installation. Please see back of book for contact information.

  • Page 5: Table Of Contents

    Zante 4 electric shower CONTENTS Page Important safety information & General Guidance Notes ....2 - 3 Specifications ..................4 Advice to users ..................4 Main components .................. 6 Electrical requirements ...............7 - 8 Water requirements ................9 Siting of the shower ................10 Fitting the shower to the wall ............11 - 12...

  • Page 6: Main Components

    Zante 4 electric shower MAIN COMPONENTS NOTE: Not all wiring shown for reasons of clarity Inside unit (fig.1) 1. Top cable entry 2. Bottom pipe entry 3. Rear pipe entry area 4. Side pipe entry area 5. Rear cable entry area 6.

  • Page 7: Electrical Requirements

    Zante 4 electric shower ELECTRICAL REQUIREMENTS Fig.3 - Illustrative purposes only WARNING! W-006-A Triton Showers, THIS APPLIANCE MUST BE EARTHED Triton Road, Nuneaton, Warwickshire, CV11 4NR xxxx The installation, supply cable and circuit protection must conform with BS 7671 (IEE wiring regulations) and be suf cient for the amperage required.
  • Page 8 Zante 4 electric shower A 45 amp double pole isolating switch with 9.3 In any event, it is essential that individual a minimum contact gap of 3mm in both site conditions are assessed by a competent poles must be incorporated in the circuit.

  • Page 9: Water Requirements

    Zante 4 electric shower WATER REQUIREMENTS Water requirements Mains electric supply (via double pole switch) The installation must be in accordance with Water Regulations/Bylaws. To ensure activation of the heating elements, the shower must be connected to a mains water...

  • Page 10: Siting Of The Shower

    Zante 4 electric shower SITING OF THE SHOWER WARNING! IMPORTANT: If installing onto a tiled wall The shower must not be positioned W-008-A always mount the unit on the surface of the where it will be subjected to freezing tiles. NEVER tile up to the unit.

  • Page 11: Fitting The Shower To The Wall

    Zante 4 electric shower FITTING THE SHOWER TO THE WALL Fig.7 WARNING! Check there are no hidden cables or pipes before drilling holes for wall W-005-A plugs. Use great care when using power tools near water. The use of a residual current device (RCD) is recommended.
  • Page 12 Zante 4 electric shower Screw the top fixing and bottom screws into Fig.10 position leaving the base of the screw heads protruding 6 mm out from the wall. Hook the backplate over the top and bottom screws and fit the centre fixing screw into position.

  • Page 13: Plumbing Connections

    Zante 4 electric shower PLUMBING CONNECTIONS WARNING! Plumbing to be carried out before wiring The outlet of the shower acts as a W-004-A DO NOT use jointing compounds on any pipe vent and MUST NOT be connected to fittings for the installation.

  • Page 14: Electrical Connections

    Zante 4 electric shower ELECTRICAL CONNECTIONS Fig.12 SWITCH OFF THE ELECTRICITY SUPPLY AT THE MAINS. Fig.12 shows a schematic wiring diagram. The cable entry points are shown in fig.1. The cable can be surface clipped, hidden or via 20 mm conduit.

  • Page 15: Replacing The Cover

    Zante 4 electric shower REPLACING THE COVER Fig.14 Refit the trimplate. Turn the POWER selector spindle clockwise to the position shown in fig.14. Turn the stabiliser valve spindle fully clockwise until resistance is felt (fig.15). On the cover turn the power selector to the COLD position (fig.16)and rotate the...

  • Page 16: Commissioning

    Zante 4 electric shower COMMISSIONING Fig.19 The first operation of the shower is intended to Start/Stop switch flush out any remaining unit debris and to make assembly sure the heater unit contains water before the elements are switched on. This operation must be carried out with the flexible hose screwed to the outlet but WITHOUT the showerhead attached.

  • Page 17: Operating The Shower

    Zante 4 electric shower OPERATING THE SHOWER Fig.22 Make sure the commissioning procedure has been carried out. To start the shower Power selector Press the Start/Stop button and water will flow. To stop the shower Press the Start/Stop button and water will cease ANTE to flow.
  • Page 18 Zante 4 electric shower Note: The preferred number on ECONOMY will WARNING! give a different temperature to the same number After any servicing of mains water position on HIGH. supply, always flush out the pipework W-002-A To decrease the shower temperature to remove any debris.

  • Page 19: Operating Functions

    CLEANING Triton Showers recommend that all products are cleaned using warm soapy water. Do not use abrasive or aggressive chemical cleaning products as this may affect the product surface...

  • Page 20: Instructions For Installers And Service Engineers Only

    Zante 4 electric shower INSTRUCTIONS FOR INSTALLERS AND SERVICE ENGINEERS ONLY CLEANING THE INLET FILTER Fig.24 It is recommended that the filter is periodically cleaned in order to maintain the performance of the shower. It is essential that this operation is carried out by an installer or service engineer.

  • Page 21: Spare Parts

    Zante 4 electric shower SPARE PARTS Triton only supply spare parts for this model as illustrated. NO component of any assembly can be supplied separately. Thermal cut-out Power selector Stabiliser valve / Solenoid assembly 22011180 S12121011 P12120806 Heater can assembly 8.5kW - P12120701...

  • Page 22: Fault Finding

    Zante 4 electric shower FAULT FINDING IMPORTANT: Switch off the electricity at the mains supply and remove the circuit fuse before attempting any fault finding inside the unit. Fault finding Problem/Symptom Cause Action/Cure Shower Interrupted 1.1.1 Blown fuse or circuit breaker. Check inoperable, no power supply.
  • Page 23 4.2.3 If mains fed, make sure that the mains stopvalve is fully open and there are no other restrictions in the supply while Zante 4 electric shower shower is in use, or see 4.2.4. X-008-A 4.2.4 Fit pump to give minimum pressure (see rating label).

  • Page 24: Water/Cable Entry Points Diagram

    Cable Entry Points WEEE Directive – Policy Statement As a producer and a supplier of electric showers, Triton Showers is committed to the protection of the environment via our own environmental policy and compliance with the WEEE directive. Triton Showers is fully registered with the Environment Agency under the following scheme: Repic: Producers take-back scheme (PTS), registration number WEE/EJ3466QV All our electric products are labelled accordingly with the crossed out wheeled bin symbol.
  • Page 25 Zante 4 electric shower...
  • Page 26 Zante 4 electric shower...
  • Page 27 Zante 4 electric shower...
  • Page 28 Trade Installer Hotline: 024 7637 8344 Nuneaton www.tritonshowers.co.uk Warwickshire, CV11 4NR E-mail: serviceenquiries@tritonshowers.co.uk E-mail: technical@tritonshowers.co.uk Triton is a division of Norcros Group (Holdings) Limited Triton reserve the right to change product specifi cation without prior notice. E&OE. © TRITON SHOWERS 2020...
