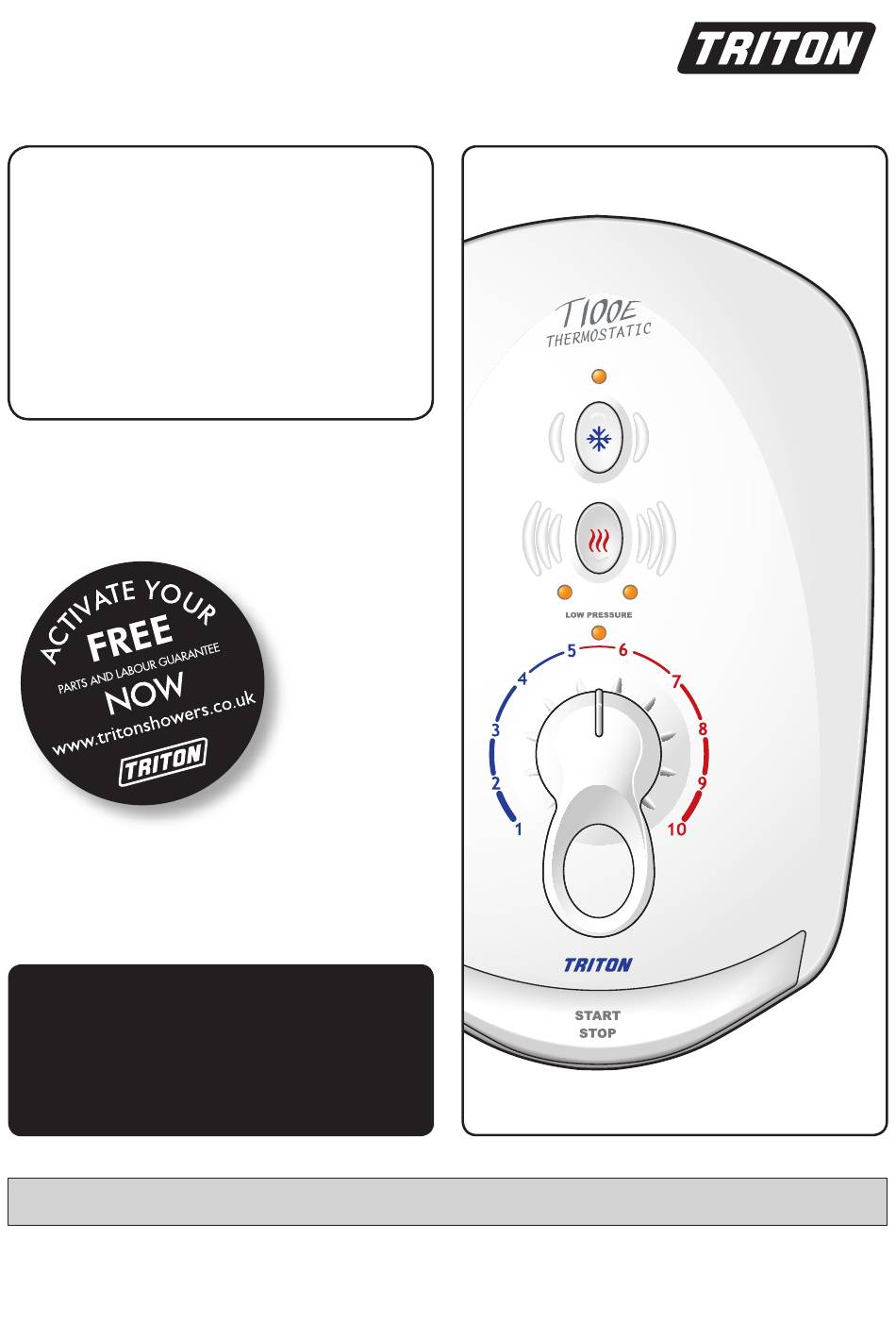

  • Page 1 T100e Thermostatic Care and Care Plus electric shower Installation and operating instructions T00338 nstallers please note these InstructIons are to be left wIth the user 2180375G April 2008...
  • Page 2: Table Of Contents

    Cleaning the scale trap Spare parts Fault finding 22 - 23 Guarantee, service policy, etc. rear cover To check the product suitability for commercial and multiple installations, please contact Triton’s specification advisory service before installation. Telephone: 0870 067 3767 Facsimile: 0870 067 3334 E mail: technical@tritonshowers.co.uk...
  • Page 3: Important Safety Information

    T 10 0e t her m os t at ic ca r e & ca re p lus PLEASE READ THIS IMPORTANT SAFETY INFORMATION Important safety information Products manufactured by Triton are safe and without risk provided they are installed, used and � maintained in good working order in accordance with our instructions and recommendations.
  • Page 4: Introduction

    Understanding your shower This book contains all the necessary installation IMPORTANT: When first installed the unit and operating instructions for your Triton T100e will be empty. It is essential the unit should Thermostatic Care or Care Plus electric shower. contain water before the elements are...
  • Page 5: Main Components

    T 10 0e t her m os t at ic ca r e & ca re p lus MAIN COMPONENTS Main components Fig. Inside unit (fig.) Top cable / pipe entry bottom cable / pipe entry Wall screw fixings Power Printed Circuit board Thermal cut-out Can and element assembly Ribbon cable connector...
  • Page 6: Electrical Requirements

    Shepperton Park, installation will not be straightforward and that no terminal is live. If in any doubt, Triton Road, Nuneaton, may require a new consumer unit serving switch off the whole installation at the mains Warwickshire, CV11 4NR the house or just the shower.
  • Page 7 Miniature Circuit Breaker (MCB) or cartridge must be at least that of the shower circuit fuse (see Table A). protection (see Table B). 5.1 A 30mA residual current device (RCD) must 8.1 To obtain full advantage of the power be installed in all UK electric and pumped provided by the shower, use the shortest T 10 0e t her m os t at ic ca r e &...
  • Page 8: Water Requirements

    T 10 0e t her m os t at ic ca r e & ca re p lus WATER REQUIREMENTS Water requirements Mains electric supply (via double pole switch) The installation must be in accordance with Water Regulations/bylaws. To guarantee activating the heating elements, the shower must be connected to a mains water Double supply with a minimum running pressure of...
  • Page 9: Siting Of The Shower

    T 10 0e t her m os t at ic ca r e & ca re p lus SITING OF THE SHOWER Siting of the shower WARNING! ImPorTANT: If installing onto a tiled wall The shower must not be positioned W-008-A always mount the unit on the surface of the where it will be subjected to freezing...
  • Page 10: Fitting The Shower To The Wall

    T 10 0e t her m os t at ic ca r e & ca re p lus FITTING THE SHOWER TO THE WALL Fitting the shower to the wall Fig. WARNING! Check there are no hidden cables or pipes before drilling holes for wall W-005-A plugs.
  • Page 11 T 10 0e t her m os t at ic ca r e & ca re p lus Slide the compression nut and olive onto the unit inlet pipe. Make sure the inlet filter is in Fig. place before attempting to fit onto the elbow connector (fig.).
  • Page 12: Plumbing Connections

    T 10 0e t her m os t at ic ca r e & ca re p lus PLUMBING CONNECTIONS Plumbing connections Fig. Plumbing to be carried out before wiring DO NOT use jointing compounds on any pipe Inlet filte r fittings for the installation.
  • Page 13: Electrical Connections

    T 10 0e t her m os t at ic ca r e & ca re p lus ELECTRICAL CONNECTIONS Electrical connections Fig. Fig. shows a schematic wiring diagram. The cable entry points are top, bottom or back. Care Plus only Pressure The cable can be surface clipped, hidden or via Thermistor...
  • Page 14: Commissioning

    T 10 0e t her m os t at ic ca r e & ca re p lus COMMISSIONING Commissioning Fig. WARNING! Before normal operation of the Valve W-001-A shower, it is essential the following spindle commissioning procedure is completed correctly.
  • Page 15 T 10 0e t her m os t at ic ca r e & ca re p lus It will take about thirty seconds for a smooth flow of water to be obtained while air and any Fig.0 debris is being flushed from the shower. When a smooth flow of water is obtained, disconnect the electricity supply to the shower at the isolating switch.
  • Page 16: Replacing The Cover

    T 10 0e t her m os t at ic ca r e & ca re p lus REPLACING THE COVER Replacing the cover ImPorTANT: Before finally fitting the Offer the cover to the unit. Carefully locate cover, the following steps must be taken: the cover tags into the guide pockets on the a.
  • Page 17: Operating The Shower

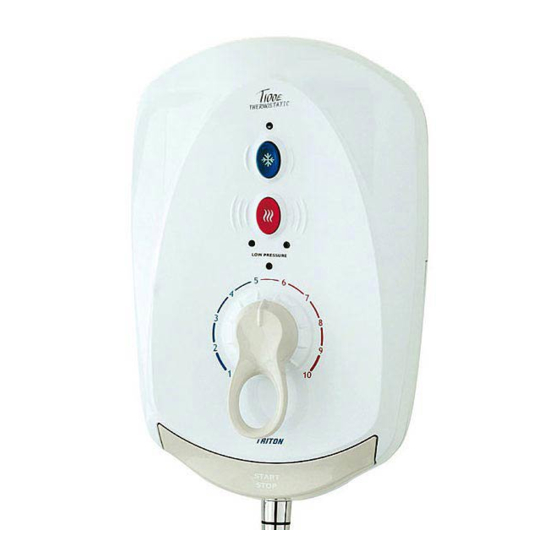

    T 10 0e t her m os t at ic ca r e & ca re p lus OPERATING THE SHOWER Operating the shower WARNING! The shower controls are shown in fig.. Before normal operation of the W-001-A Make sure the water supply is turned fully on. shower, it is essential the following Switch the electric supply back on at the commissioning procedure is completed...
  • Page 18 T 10 0e t her m os t at ic ca r e & ca re p lus single ‘bleep’). During this time, the flow rate Fig. decreases to try to achieve the same temperature as before. Note: If the temperature setting was high at full power, then it will not be possible to obtain the same temperature as before on the economy setting.
  • Page 19 T 10 0e t her m os t at ic ca r e & ca re p lus the temperature stop can be adjusted by the Fig. installer to lock at a selected temperature setting, according to individual needs. Procedure Centre screw With the cover in place, start the shower as...
  • Page 20: Operating Functions

    T 10 0e t her m os t at ic ca r e & ca re p lus OPERATING FUNCTIONS Operating functions Fig. Low pressure When the low pressure indicator (fig.) flashes steadily (the Care Plus will also ‘bleep’ intermittently) it means the water pressure has fallen below the minimum pressure required Low pressure indicator...
  • Page 21: Instructions For Installers And Service Engineers Only

    T 10 0e t her m os t at ic ca r e & ca re p lus INSTRUCTIONS FOR INSTALLERS AND SERVICE ENGINEERS ONLY Instructions for installers and service engineers only CLEANING THE INLET FILTER Cleaning the inlet filter Fig. It is recommended that the filter is periodically cleaned in order to maintain the performance of...
  • Page 22: Cleaning The Scale Trap

    T 10 0e t her m os t at ic ca r e & ca re p lus INSTRUCTIONS FOR INSTALLERS AND SERVICE ENGINEERS ONLY CLEANING THE SCALE TRAP Cleaning the scale trap Fig. It is recommended in hard water areas, the scale trap is periodically cleaned to maintain the performance of the shower.
  • Page 23: Spare Parts

    T 10 0e t her m os t at ic ca r e & ca re p lus SPARE PARTS Spare parts Ref. Description Part No. 1. Printed circuit board 7073034 2. Copper bus bar 7023005 3. Terminal block & wires S07710901 Terminal block 22011410...
  • Page 24: Fault Finding

    T 10 0e t her m os t at ic ca r e & ca re p lus FAULT FINDING IMPORTANT: Switch off the electricity at the mains supply and remove the circuit fuse before attempting any fault finding inside the unit. Fault finding Problem/Symptom Cause...
  • Page 25 T 10 0e t her m os t at ic ca r e & ca re p lus FAULT FINDING Problem/Symptom Cause Action/Cure 6.4 blocked 6.4.1 Make sure the tube from solenoid valve to connecting tube to pressure switch is not kinked or blocked. pressure switch.
  • Page 26 T 10 0e t her m os t at ic ca r e & ca re p lus...
  • Page 27 T 10 0e t her m os t at ic ca r e & ca re p lus...
