kd frames Charleston Plus Queen Assembly Instructions page 2

2

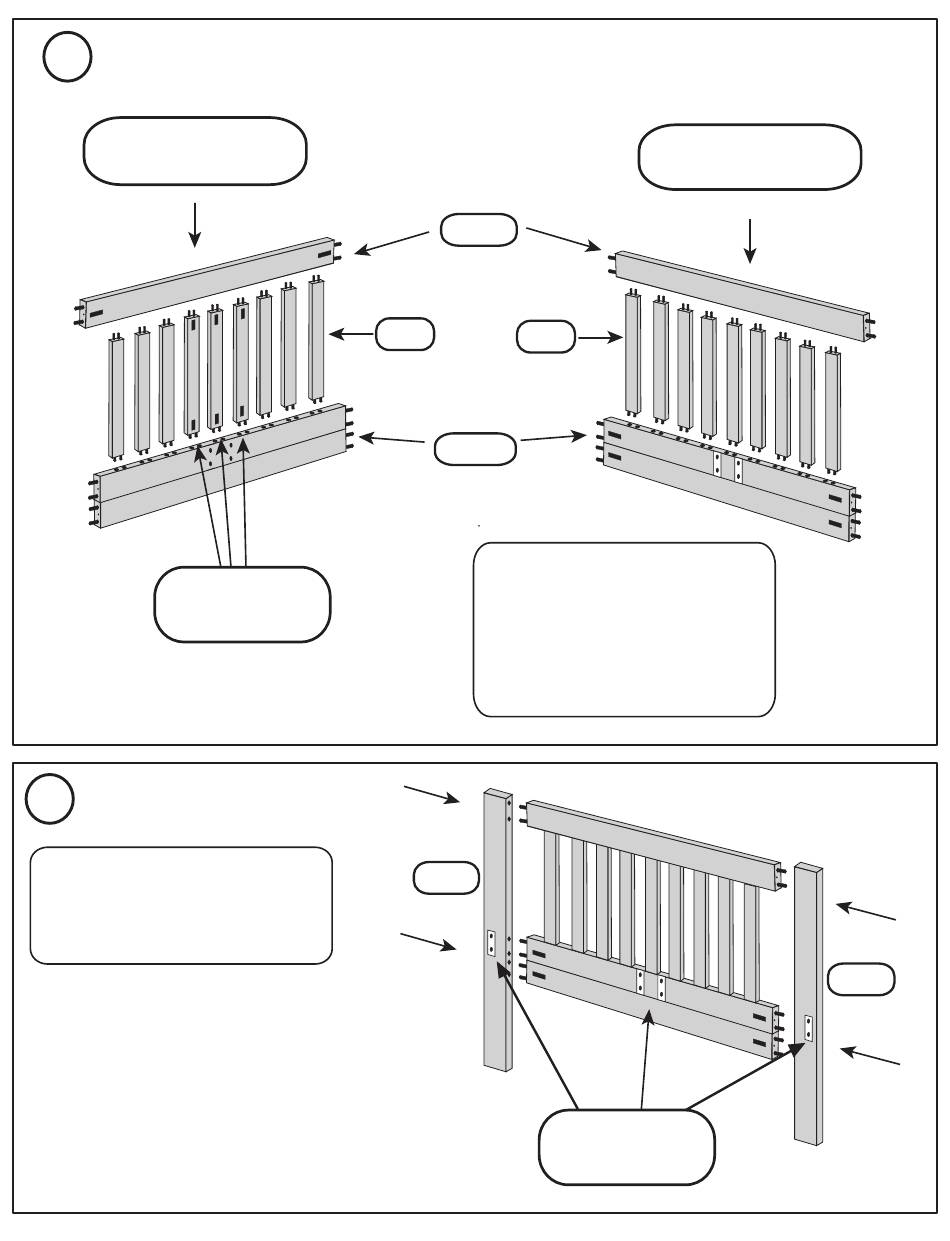

HEADBOARD ASSEMBLY
BACK VIEW
THE 3 PICKETS (A-22-P)
WITH POCKET HOLES
GO HERE
3
Attach the Headboard Legs (A-40-L and A-40-R)
to the Headboard by pushing them onto the
dowels. Be sure that the rail pockets are all
facing the same side. Then use (6) 1-1/2" Wood
Screws (Black) (H-20) to attach the Legs.
A-50-HT
A-22
A-22
A-50-HB
Push the 6 Headboard Pickets (A-22) and the 3
Headboard Pickets (A-22-P) into holes on the
Headboard Bottom (A-56-HB) . The 3 pickets in
the middle (A-22-P) should be the ones with
pocket holes (see back view picture).
Then push the Headboard Top (A-56-HT)
down onto the pickets.
Use a Phillips screwdriver to attach the 3 middle
pickets with 1-1/2" Wood Screws (Black) (H-20).
A-40L
RAIL POCKETS MUST
FRONT VIEW
ALL BE ON THE
SAME SIDE
A-40R
