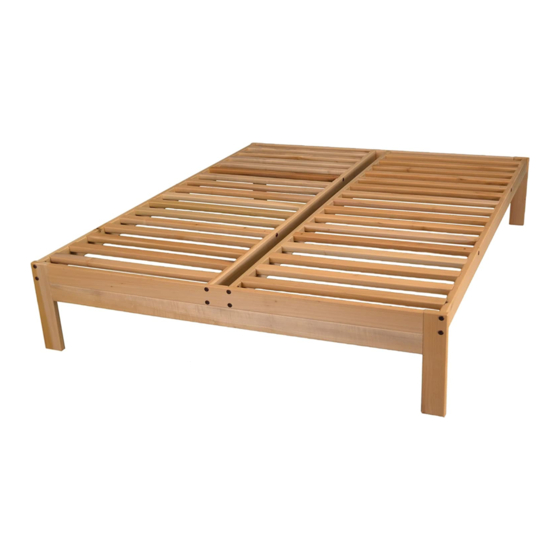

Nomad Bed
INSTRUCTIONS
Queen and Full
Manufactured by
290 Dairy Pak Rd. • Athens, GA 30607 • 800 - 543 - 3393
NOTE:
THIS FRAME IS MADE WITH TULIP POPLAR. THE GREENISH COLOR
OF THE HEARTWOOD WILL CHANGE TO A LIGHT BROWN OVER
TIME. YOU CAN PLACE THE FRAME IN DIRECT SUNLIGHT FOR
ONE HOUR TO COMPLETELY CHANGE THE GREEN TO BROWN.
1
Attach (2) Deck
Supports to each
Bed Panel
N-8
P A R T S
L I S T
N -1
BED PANELS
N-8 DECK SUPPORTS
N-2 BED ENDS
N-1 BED PANELS (2)
N-2 BED ENDS (2)
N-8
H-4
2
H-1
70mm BOLT
4
50mm SCREW
H-4
2
H-10 HEX WRENCH
H-3 CROSS DOWEL
N-8 DECK
SUPPORTS (4)
N-1
16
8
1
16
Advertisement
Table of Contents
Related Manuals for kd frames Nomad Bed
Summary of Contents for kd frames Nomad Bed
- Page 1 Nomad Bed P A R T S L I S T N -1 BED PANELS 70mm BOLT N-8 DECK SUPPORTS 50mm SCREW INSTRUCTIONS N-2 BED ENDS H-10 HEX WRENCH Queen and Full H-3 CROSS DOWEL Manufactured by N-8 DECK SUPPORTS (4) 290 Dairy Pak Rd.
- Page 2 Attach Bed Ends to Bed Panels with pocket screws facing in. Leave all bolts loose until both Bed Ends are attached. Then tighten all bolts. BEST SIDE POCKET SCREWS BEST FACING INSIDE SIDE PLEASE RETIGHTEN BOLTS AFTER 30 DAYS Knockdown Frameworks, Inc. warrants all of its products for five years against any defects that are due to faulty materials or workmanship.
